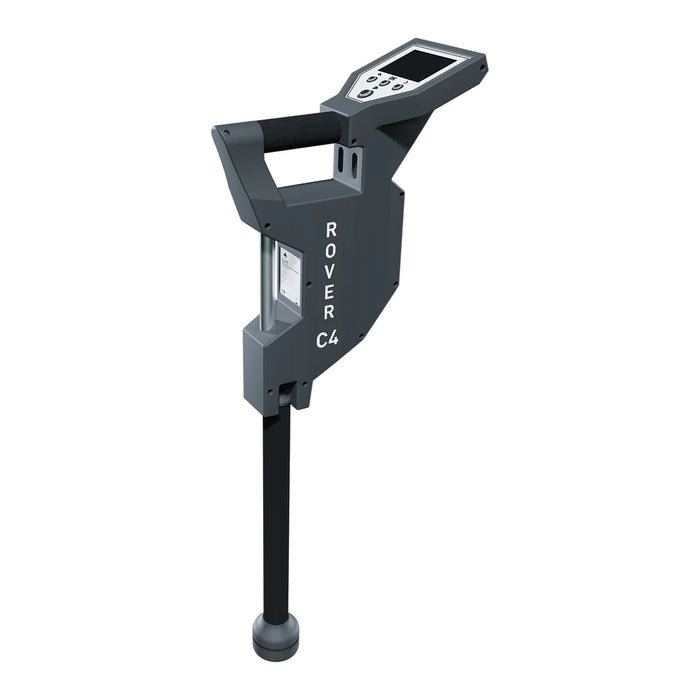

The ground scanner Rover C4 is an easy-to-use multi-purpose treasure and void detector. The detector supports treasure hunters and archaeologists in finding long-time buried treasures such as relics, coins, vessels, and jewelry as well as underground structures like tunnels, caves, chambers, and graves. The measured data can be viewed and analyzed in the Visualizer 3D Studio Software.
Special Features Of The OKM Rover C4
Operationaltouchscreenwith alternative hardware buttons
Graphical user interface in many differentlanguages
Improved multilevelLED lightingfor detector usage in darkness
Exchangeable probes: Standard Probe and Super Sensor
Supportedoperating modes: 3D Ground Scan, Pinpointer, Mineral Scan, Magnetometer
Integrated battery
Simplified wireless data transfer
4 separate memory areas to store measuring data
Includingdetection softwareVisualizer 3D Studio Standard Edition
Simple Operation Via Touchscreen
The Rover C4 is controlled via a color touchscreen with multi-lingual user interface. This allows a fast and easy operation and configuration of the metal detector. The detector can also be operated by using the alternative buttons.
Treasure hunting in the dark, thanks to LED Lighting
The embedded LEDs in the bottom side of the Control Unit are gradually adjustable based on your environment. This can be particularly useful when scanning in narrow and dark tunnels or at night.
Interchangeable Probes
After connecting the desired probe to the Rover C4 Control Unit, the detector is ready to scan.
The Standard Probe can be used for the operating modes 3D Ground Scan and Magnetometer. It is attached directly to the unit and thus very easy to carry.
The Super Sensor is used for all operating modes including Mineral Scan and Pinpointer. Moreover, it provides 3D ground scan images in higher resolution. It is connected via cable and carried separately.
Immediate Feedback via LED Orbit
The detector is also equipped with an innovative LED orbit, that indicates underground targets visually. While scanning the ground this LED sphere emits colored light to visualize detected metals and cavities immediately.
Treasure Detector Operating Modes
One of the most versatile operating modes in our 3D metal detectors is 3D Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.
However, in order to perform extensive ground measurements and achieve the maximum detection performance, we recommend using the operating modes Magnetometer, 3D Ground Scan and Pinpointer. The Mineral Scan mode is a Rover C4 add-on for gold prospectors.
Magnetometer
Use Magnetometerto clear the scan field of small metal items like nails, cans, screws and wires near the surface.
3D Ground Scan
3D Ground Scan provides a graphical measurement of any area for further analysis in the detection software Visualizer 3D Studio.
Pinpointer
With Pinpointer detectorists locate buried coins, rings, jewelry and similar treasure objects and artifacts more precisely.
Mineral Scan
Mineral Scan is used to locate natural gold deposits.
The fewer metal items near the surface, the better your 3D Ground Scan results. After clearing your scan field with Magnetometer, you can also find larger metal targets which are located deeper underground. Analyze your 3D Ground Scan images in Visualizer 3D Studio and locate the detected objects more precisely with the Pinpointer mode.
Ground Scanning with OKM Rover C4 Metal Detector
One of the most versatile operating modes in our 3D metal detectors is Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.
Detectable items that can be found with our 3d ground scanner OKM Rover C4 are:
Lost treasures and hidden precious metals treasure chests, gold coins, jewelry, silverware, statues, general valuables, buttons, medals, etc.
Underground voids and cavities tunnels, graves, chambers, cellars, sepulchers, dugouts, shelters, bunkers, etc.
Natural gold minerals gold ore, gold deposits, gold veins, etc.
3D Data Analysis With Visualizer 3D Software
All data that has been recorded with the OKM Rover C4 metal detector during a ground scan or mineral scan can be transferred to theVisualizer 3D Softwareto process a detailed three-dimensional analysis.
During Analysis
Identify potential objects and hidden treasures You will see the targets represented by different colors. The color information will tell you if it is a ferrous metal (iron, steel, …), precious metal (gold, silver, bronze, copper, …), or a void structure (cave, tunnel, grave, chamber, …).
Determine position and depth The software shows the position of the detected anomalies and – according to the chosen soil – how deep the target is buried in the ground.
Calculate object dimensions Next to the depth information Visualizer 3D can also calculate the dimensions of hidden targets and buried items.
Computer Minimum Requirements
Interface (data transmission): USB 2.0
Free disk space: 250 MB
Working memory (RAM): 2 GB
Display: 1920 x 1080
Processor: 1.2 GHz
Graphics card: 1 GB RAM, OpenGL 3.3
Operating system: Windows 10
Data Transmission
Technology: Bluetooth 5.1
Frequency: 2.402 – 2.480 GHz
Maximum Transfer Rate: 1 Mbps
Maximum Transmitting Power: +8 dBm
Maximum Range: approx. 10 m
OKM Rover C4 Control Unit
Dimensions (H x W x D): 390 x 300 x 140 mm
Weight: about 1.5 kg
Input voltage (max.): 19 V DC, 3.16 A, 60 W
Processor / Main CPU: Cortex M3, 32 MHz
Processor / Slave CPU: Cortex M0, 24 MHz
Display: 3.5” Resistive touch, 480 x 320 Pixel
Display CPU: Cortex M3, 32 MHz, 128 KB RAM
Data memory: 4 GB
Sample rate: 1024 values / second
Measurement resolution: 16 bit
Operating temperature: –10°C – 60°C
Storage temperature: –20°C – 70°C
Audio: Internal speaker / Bluetooth
Waterproof: No
Air humidity: 5% – 75%
OKM Rover C4 Standard Probe
Weight: 0.4 kg
Length: 445 mm
Diameter tube / LED Orbit: 35 mm / 65 mm
Technology: SCMI-15-D
OKM Rover C4 Super Sensor
Weight: 0.9 kg
Length: 960 mm
Diameter tube / LED Orbit: 50 mm / 65 mm
Technology: SCMI-15-D
