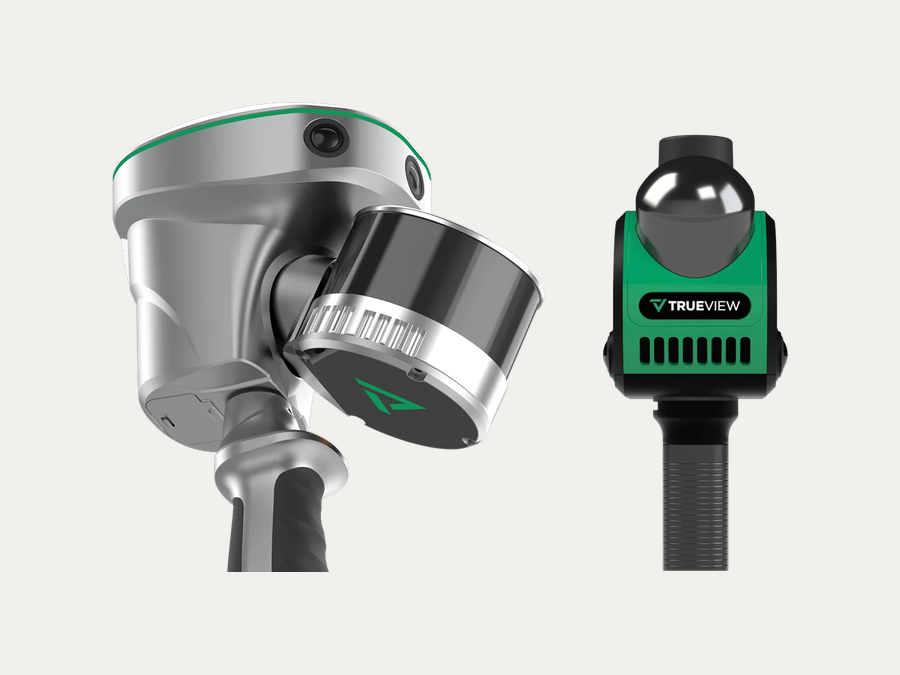

GeoCue TrueView GO NEO Standard
This one is configured rather than shelved. Tell us the airframe and what you are surveying and we will price it properly, including the mount and the processing service.
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
The NEO is the small end of the handheld range, and the only one with no moving parts. A dome sensor rather than a rotating head.
No moving parts is the point
A rotating scanner has a bearing, and a bearing on a handheld that lives in a truck and gets carried round a site is the thing that eventually fails. The dome removes it. It also makes the unit smaller and lighter, which matters more than it sounds when you are on hour three of walking a site.
1.15 million points per second across a 360 by 189 degree field of view, with two 12 MP cameras for spherical imagery and colourisation.
Standard against Basic
Same instrument, and $3,500 separates them. The difference is the LP360 Land licence tier, perpetual either way, with annual maintenance from year two.
Specification
| Scanner type | 360 degree dome LiDAR, no moving parts, range optimised for indoor SLAM |
|---|---|
| Point rate | Up to 1.15 million measurements per second |
| Field of view | 360 by 189 degrees |
| Cameras | Two 12 MP for 360 spherical imaging, optional 48 MP acquisition, binning for low light |
| Positioning | GNSS receiver plus aerospace grade IMU, bias instability better than 0.5 degrees per hour |
| Fusion | Deep INS and SLAM fusion for stability in feature-poor corridors, blank walls and low-texture spaces |
| Power | SmartHandle with integrated battery |
| Field software | TrueView GO phone and tablet software, real-time scan view |
| Processing | LP360 Land |
| Licensing | Perpetual, annual maintenance from year two |
| Manufacturer part number | FTV1002300A00T |
| Country of origin | Switzerland |
| TAA compliant | Yes |
| Shipping weight | 10 lb |
Worth a call first
Handhelds are easy to specify badly, because the honest answer often depends on what you are walking through rather than what you are measuring. Describe the site and we will tell you which channel count you need.
Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email us. Purchase orders accepted.
