Dark Slate Gray OKM Gepard GPR 3D

OKM Gepard GPR 3D

by OKM German Detectors
In Stock & Ready To Ship
Save 15% Save 15%
$24,990.00
$24,990.00 - $24,990.00
$24,990.00
$21,241.50
$21,241.50 - $21,241.50
$21,241.50

✔ Price Match Guarantee

✔ Ships in 1-2 Business Days

✔ Unlimited After-Sales Support

First-time customers get 2% off with code "SAVE2" at checkout
  • Visa
  • Mastercard
  • American Express
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Authorized OKM Dealer Logo

Best Price Guarantee

Free Shipping

2-Year Manufacturer Warranty

Made in Germany

Depth Performance down to 132 ft (40 M)

Device Applications

  • Flexible & powerful: Ground Penetrating Radar using an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters
  • Depth: Customers found objects up to 40 meters deep
  • Use cases: archaeology, geotechnical engineering, treasure hunting
  • Operating modes: Ground Scan, Live Stream
  • Detectable objects: underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers, and foundations

Features

  • 2D Visualization
  • 3D Visualization
  • 3D Ground Scan
  • Color display / Touchscreen
  • GPS (Dis-engageable)
  • Height adjustment
  • Internal memory
  • Live Stream
  • Multilingual operation
  • Rechargeable high-capacity battery
  • Speaker
  • Wireless technology

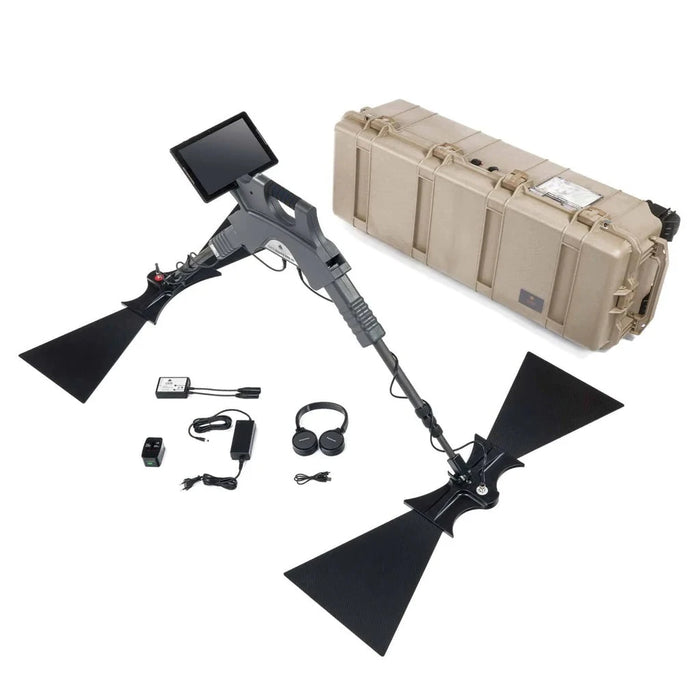

Package Includes

  • 1x Control Unit
  • 1x Android Tablet
  • 2x Telescopic Shaft
  • 1x Waterproof and shock-resistant Pelican case
  • 1x Bluetooth headphones incl. Charging Cable
  • 1x Charger with Charging Cable
  • 1x USB Flash Drive with OKM Visualizer 3D Studio Professional Edition
  • 1x Travel Adapter
  • 1x Sending Antenna for Gepard GPR 3D
  • 1x Receiving Antenna for Gepard GPR 3D
  • 1x User’s manual

Detection Technology

The Gepard GPR is a very flexible and powerful Ground Penetrating Radar for the detection of underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers, and foundations.

The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters (131 ft). The agile and compact unit can easily be operated by a single user via Android Tablet PC.

The RADAR (Radio Detection and Ranging) of the Gepard GPR 3D sends a signal into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies.

Detectable Objects and Structures

  • Underground walls, basements, and concrete reinforcements
  • Hidden cavities, graves, and sepulchers
  • Water level and underground rivers and aquifers
  • Buried pipelines, conduits, and cable harnesses
  • Backfilled wells, galleries, trenches, and dugouts
  • Septic tanks, distribution boxes, and drainage pipes
  • Secret tunnels, bunkers, and shelters
  • Buried treasure chests, statues, and caches

Optimization of Ground Survey

The Gepard ground penetrating radar is using multiple transmission frequency ranges starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.

Measurement Data Analysis  with Android Software

The measured data of the ground-penetrating radar is immediately transferred to the Android Tablet PC. The Android software receives the data via WiFi and displays it directly on the screen.

The software offers the option of integrating a GPS signal or Google Maps, filtering automatically, and entering notes for later recollection of specific scan details. Additionally, the automatic filtering option improves the results of your scan and assists in finding hidden objects and structures more easily. Due to the integrated GPS, all scan positions can be stored along with the scan data.

Specifications

Control Unit

  • Dimensions (H x W x D): 450 x 260 x 130 mm
  • Weight: approx. 1.6 kg
  • Input voltage (max.): 8.4 V DC / 1.0 A
  • Operating temperature: –20°C – 55°C
  • Storage temperature: –25°C – 60°C
  • Waterproof: No
  • Operating time: approx. 4 hours
  • Air humidity: 5% – 70%
  • Feedback: acoustic, visual
  • Protection Type: IP 20
  • Data Transmission Technology: WiFi, 2.4 GHz
  • Transmission Frequency Range: 60 – 300 MHz
  • Timing/Sampling Adjustments: 4 Levels
  • Complete Cycle Measurements: 9 per second

Telescopic Shaft

  • Dimensions (H x W x D): 70 x 60 x 590–1630 mm
  • Weight: 0.80 kg
  • Operating temperature: –20°C – 55°C
  • Storage temperature: –25°C – 60°C
  • Waterproof: No
  • Air humidity: 5% – 70%
  • Protection Type: IP 20
  • Internal Battery: 7.26 V / 2600 mAh

Triangular Antenna (Unshielded)

  • Dimensions (H x W x D): 1010 x 330 x 50 mm
  • Weight: 1.50 kg
  • Operating temperature: –20°C – 55°C
  • Storage temperature: –25°C – 60°C
  • Waterproof: No
  • Air humidity: 5% – 70%
  • Protection Type: IP 20
The technical data are average values. Minor deviations are possible during operation.
