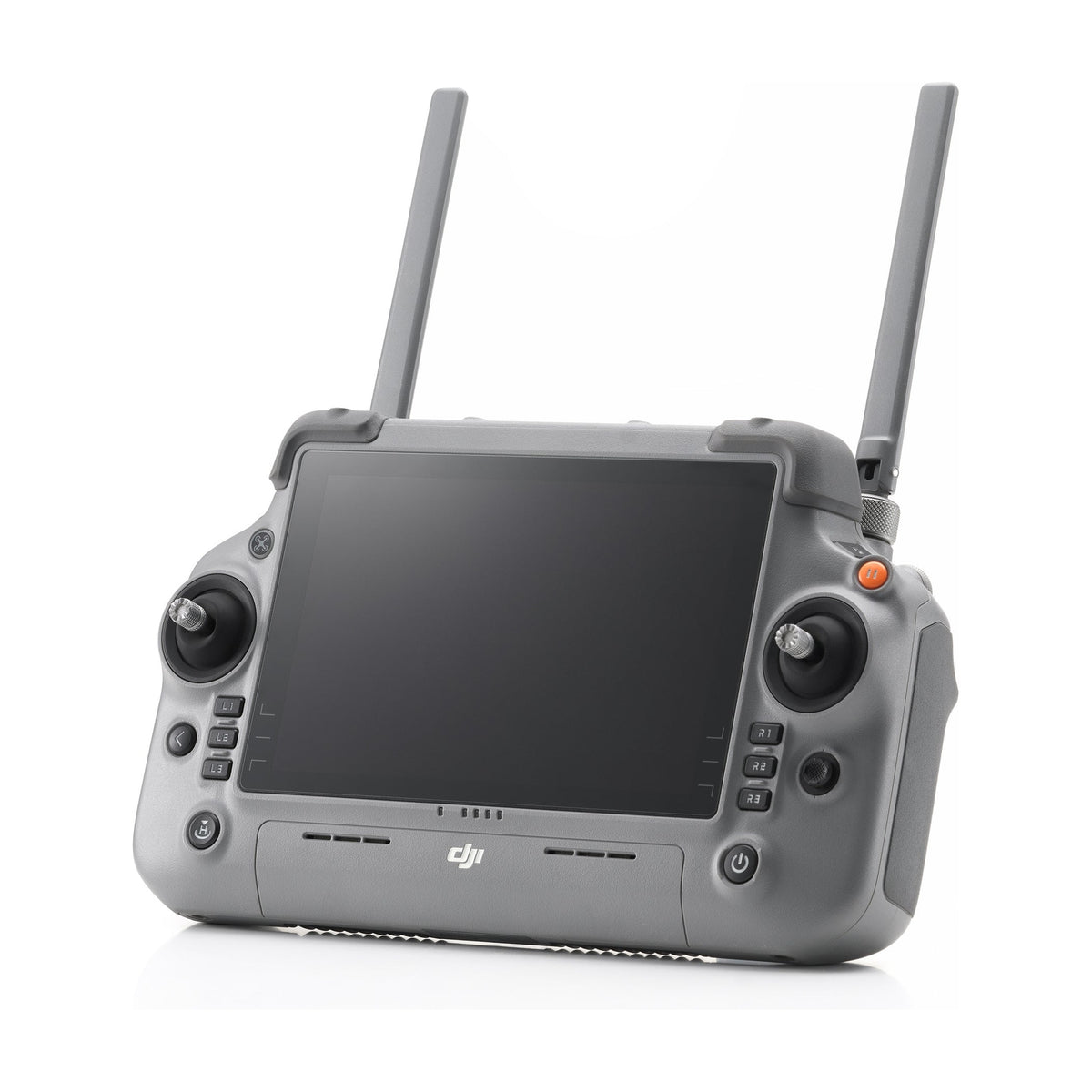

DJI RC Plus 2 Enterprise Remote Controller
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
1,400 nits, 3.8 hours on the internal battery, and a storage ceiling that keeps dropping the longer you leave it.
01
It controls the Matrice 4E, 4T, 4D and 4TD, and DJI rules out the Mavic 3 Enterprise Series and the Matrice 3D Series
The Matrice 4E, 4T, 4D and 4TD all pair with this controller. For the 4D Series DJI attaches a condition: update the controller to the latest firmware first. DJI also states that it does not support the Mavic 3 Enterprise Series or the Matrice 3D Series. Transmission is O4 Enterprise on a 2T4R antenna. DJI calls it SDR and 4G hybrid transmission, and lists the 4G side as requiring the DJI Cellular Dongle 2, which is not included. Range is 25 km under FCC and 12 km under CE, SRRC and MIC. DJI's condition covers both: unobstructed, free of interference, and measured as the farthest communication range in one direction, with no return link, under each standard. The controller also carries its own GNSS receiver on GPS, Galileo and BeiDou, and DJI states it supports dynamic Home Point refresh. That matters if you launch from a moving vehicle.
02
1,400 nits is the figure that decides whether you can read the screen in open sun
The display is 7.02 inches, 1920 by 1200, 60 fps, rated at 1,400 nits. That number decides whether you work off the screen at midday or shade it with your body. DJI puts the adjustment on you. Its manual says users are responsible for correctly adjusting the display brightness when using the monitor in direct sunlight during flight operation. The body is IP54 and weighs 1.15 kg without the external battery.
03
DJI rates it 3.8 hours on the internal battery but publishes no test condition
The internal battery is 6500 mAh at 7.2 V, 46.8 Wh, and DJI rates it 3.8 hours. The optional WB37 external battery is 37 Wh and rated 3.2 hours. DJI publishes no test condition for either figure, and does not state whether the two add together. Charging is 2 hours for the internal battery, or for internal and external together, with the controller powered off and a standard DJI charger. It recharges only between 5° and 40° C, inside the -20° to 50° C it operates in. DJI's packing list for this controller is one line: remote controller x1. So the WB37 is not in the box. If you want one, say so on the call and it goes on the same order.
04
It runs to 50° C, but the storage ceiling starts at 45° C and keeps dropping
The controller operates from -20° to 50° C. In storage the ceiling drops: 45° C within one month, 35° C from one to three months, 30° C from three months to a year. The floor holds at -30° C throughout, below the operating floor. So heat, not cold, decides where you leave it: a truck cab, a site container. My Surveying Direct is an authorized DJI Enterprise dealer, and we accept purchase orders from universities, colleges and government agencies. Shipped direct from the manufacturer. Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time.
FOR UNIVERSITIES, COLLEGES AND GOVERNMENT AGENCIES
Buying with a card? Checkout is above. Buying for an institution? All of this is routine
Checkout above. Financing available with Affirm.
Institutions only: universities, colleges and government agencies.
Attached automatically.
Send the certificate once, we hold it on file.
On request, for committee approval.
One person, from quote to delivery.
REFERENCE
Specifications
What it is
| Model | TKPL2 |
| Display | 7.02 inch, 1920x1200, 1400 nits, 60 fps, 10-point multitouch |
| Protection rating | IP54 |
| Dimensions | 268 x 163 x 94.5 mm |
| Weight | 1.15 kg without the external battery |
| Internal battery | 2S2P high energy density 18650 lithium-ion, 6500 mAh at 7.2 V, 46.8 Wh |
| External battery | Optional WB37, 4920 mAh at 7.6 V, 37 Wh. Not included, see the in-the-box panel |
| Runtime | 3.8 hours on the internal battery, 3.2 hours on the external. DJI publishes no test condition for either and does not state whether they are additive |
| Charging time | 2 hours for the internal battery, or for internal and external together, with the remote controller powered off and using a standard DJI charger |
| Video transmission | O4 Enterprise, 2T4R antenna. DJI calls it SDR and 4G hybrid transmission, and lists the 4G side as requiring the DJI Cellular Dongle 2, which is not included |
| Maximum transmission distance | 25 km under FCC, 12 km under CE, SRRC and MIC. DJI's condition: unobstructed and free of interference, the farthest one-way non-return communication range under each standard |
| Operating temperature | -20° to 50° C (-4° to 122° F) |
| Storage temperature | Tiered. Within one month -30° to 45° C (-22° to 113° F); one to three months -30° to 35° C (-22° to 95° F); three months to one year -30° to 30° C (-22° to 86° F) |
| Recharging temperature | 5° to 40° C (41° to 104° F) |
| GNSS | GPS, Galileo and BeiDou, and DJI states it supports dynamic Home Point refresh. The controller's own receiver, not the aircraft's |
| Video output | HDMI Type-A, HDMI 1.4 |
| Storage | 128 GB ROM plus microSD |
| Bluetooth | 5.2 |
| Rated power | 12.5 W |
| Supported aircraft | Matrice 4TD, 4D, 4T and 4E. For the 4D Series the controller must be updated to the latest firmware first. DJI states it does NOT support the Mavic 3 Enterprise Series or the Matrice 3D Series |
Ordering
| Dealer status | Authorized DJI Enterprise dealer |
| Purchase orders | Accepted from universities, colleges and government agencies |
| Shipping | Shipped direct from the manufacturer |
| Speak to us | +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time |
