Home/DJI Matrice 400 and Zenmuse L3 Drone LiDAR Survey System

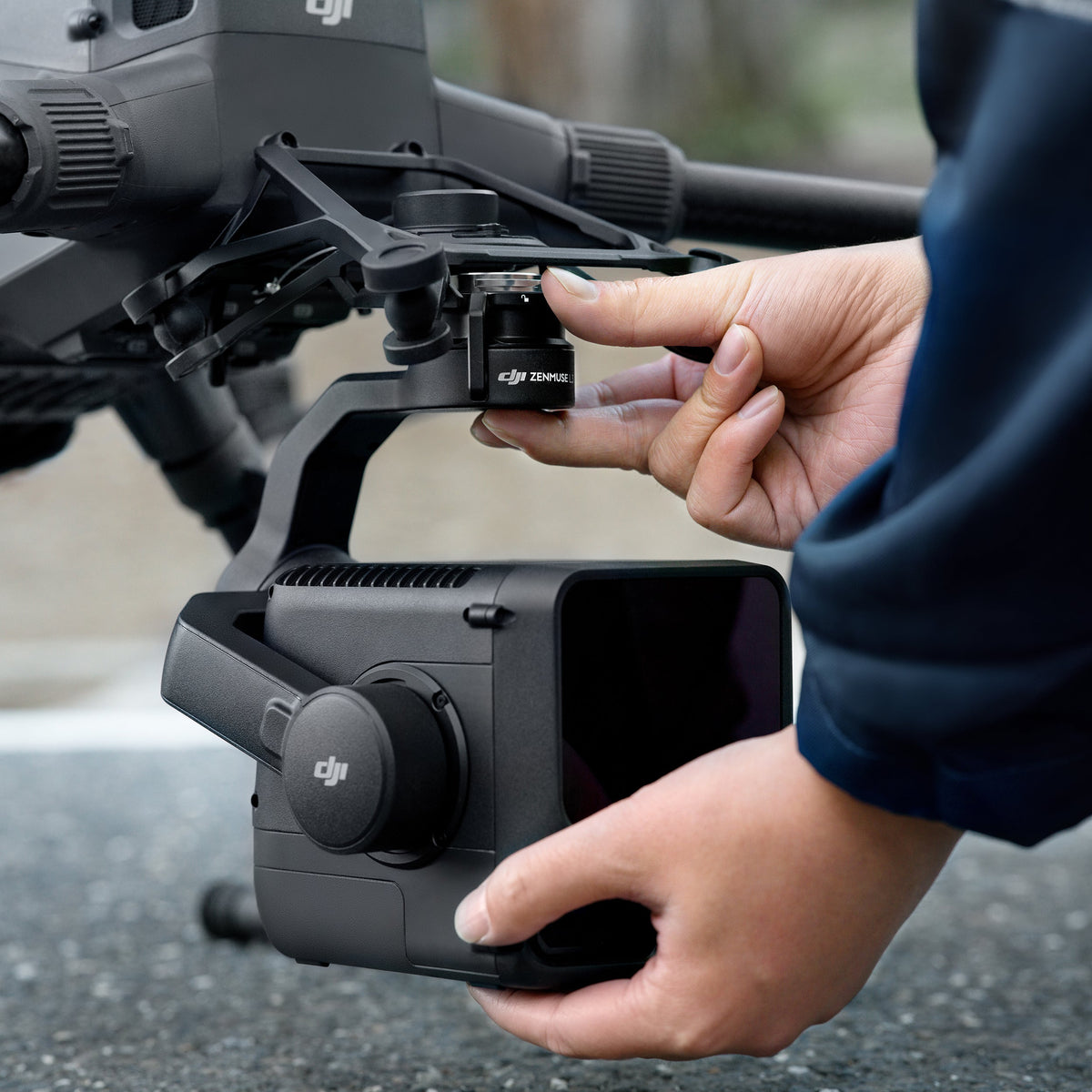

The Zenmuse L3 being mated to the gimbal mount on a DJI Matrice 400, the only airframe it fits
DJI Enterprise

DJI Matrice 400 and Zenmuse L3 Drone LiDAR Survey System

$30,649.00
Financing available · Affirm
In stock
Purchase orders accepted
W-9 and vendor pack with every quote
Shipped direct from the manufacturer

A complete airborne LiDAR survey system on one purchase order. The airframe, the sensor, the mount and the base station, specified so that they work together rather than assembled from three separate orders and hoped for.

What is included

Component What it does List
DJI Matrice 400 The airframe. 6 kg payload capacity, 59 minutes of flight, O4 Enterprise transmission. Base configuration. $10,450
DJI Zenmuse L3 The sensor. 1535 nm laser to 950 m at 10% reflectivity, dual 100 MP mapping cameras, post-processed POS. $17,400
Zenmuse L3 single gimbal connector The mount. The L3 will not attach to the aircraft without it. Supplied as part of this configuration. Included
DJI D-RTK 3 Multifunctional Station The base station. The L3 accuracy figures are quoted against a position-calibrated D-RTK 3, so it is part of the instrument. $2,799
Indicative total Before any structured discount, which is settled on the quote. $30,649
The Matrice 400 line is the base configuration, and it ships without flight batteries or a charging station. That is how DJI sells it and how every US reseller lists it, and it means this system as quoted above will not leave the ground on its own. Budget for TB100 flight batteries and a BS100 Intelligent Battery Station, or tell us the flight time you need per mobilization and we will size it and put it on the same purchase order. We would rather say this on the product page than after the requisition has been approved.

Why these four parts and not any others

The Zenmuse L3 is supported on the Matrice 400 only. It does not fit a Matrice 350 RTK, a Matrice 30 or a Matrice 4 series aircraft, and no adapter changes that. If you already fly a 350 RTK, the sensor that fits it is the Zenmuse L2, and it is the honest recommendation rather than the more expensive one.

The base station is the part people try to remove from the quote, because a D-RTK 2 is already on the shelf. DJI has superseded the D-RTK 2, and the L3's published vertical and horizontal figures were measured against a position-calibrated D-RTK 3. Fly the L3 against the older station and you still get a point cloud. You do not get the accuracy on the specification sheet, and on a survey deliverable that difference is the whole job.

What the system delivers

Flight altitude Vertical (RMSE) Horizontal (RMSE) Point cloud thickness
120 m 3 cm 4 cm 1.2 cm at 1σ
300 m 5 cm 7.5 cm 2 cm at 1σ

DJI measured these in a laboratory environment, on a field with obvious angular features, with the aircraft linked to a position-calibrated D-RTK 3, an Area Route flown at 15 m/s with Calibrate IMU enabled, gimbal pitch at -90 degrees, and DJI Terra post-processing with Optimize Point Cloud Accuracy enabled. Expect field performance outside these figures. Anyone quoting you a single accuracy number without the conditions attached is quoting you a marketing figure.

If you want the L3 on a second or third gimbal position

The connector above is the standard downward mount. Carrying the L3 alongside another payload needs the Matrice 400 Dual Gimbal Connector or Third Gimbal Connector, which are separate lines. Tell us what else has to fly on the same sortie and we will put the right one on the quote.

Buying this through an institution? The whole system is one line on the purchase order rather than four, which is the point of listing it this way. Purchase orders accepted from universities, colleges and government agencies. See how the PO process runs.

Want it specified properly before you commit $30,000?

Tell us the area, the terrain, the vegetation and the accuracy the deliverable has to hold, and a specialist will size the system with you. Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email support@mysurveyingdirect.com. We reply no later than the next working day, with the W-9 and vendor pack attached.
