OKM eXp 6000 Professional Plus
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
A Control Unit, Telescopic Rod and four probes built for 3D ground scanning, tunnel detection and live underground imaging, plus GPS tagging exclusive to this edition. OKM's own site marks this exact model discontinued and names the eXp 7000 Professional Plus as its successor.
01
OKM's own product page marks this exact model discontinued, and names the eXp 7000 Professional Plus as its successor
OKM's own product page for the eXp 6000 Professional Plus carries a banner stating: "This product is no longer manufactured. As successor product we recommend OKM eXp 7000 Professional Plus." The banner appears across every section of that page, alongside a "PREVIOUS PRODUCT" badge. My Surveying Direct's own listing carries no separate discontinuation notice. If your project has already specified this exact configuration, everything below describes the unit accurately. If you are choosing a detector for the first time, call us before you order and we will walk through current stock and how this model compares with what OKM sells today.
02
Four upgrades separate this edition from the base Professional, and none of them are optional add-ons here
OKM's own eXp 6000 editions comparison describes the Professional Plus as strictly additive over the base Professional: nothing is removed, four things are added. The GPS Receiver, a removable cap-mounted module that tags a scan's location, ships only with the Professional Plus edition; OKM's own comparison table marks it absent from the base Professional entirely. Two probes, the Live-Stream Sensor and the Tunnel Sensor, are Professional Plus exclusive as well, each required for one of the two extra operating modes below. The fourth upgrade is the software: this edition ships OKM's Visualizer 3D Studio Professional Edition, one tier above the Standard Edition that ships with the base Professional. The Control Unit, Telescopic Rod, case, Bluetooth headphones and chargers are identical on both editions, per OKM's own comparison table.
OKM's own walkthrough of the eXp 6000
The first video slide on OKM's own product page for this model, embedded directly from OKM's YouTube channel.
03
Six operating modes run this scanner, and two of them only run with hardware exclusive to this edition
3D Ground Scan visualizes underground artifacts and cavities in three dimensions and runs on both editions. Magnetometer localizes ferromagnetic objects, Pinpointer narrows a detected anomaly to its exact position, and Mineral Scan detects natural mineralization as a color-coded graph; all three run on both editions too. Live Scan and Tunnel Scan are Professional Plus exclusive, per OKM's own editions comparison. Live Scan needs the Live-Stream Sensor and shows what sits directly under the probe in real time as the operator walks. Tunnel Scan needs the Tunnel Sensor and looks for underground voids, tunnels and cavities, run either as a Parallel Mode scan matching 3D Ground Scan or as a Single Line scan saved to internal memory. OKM's manual is explicit: if you do not already own the Tunnel Sensor, one has to be obtained before Tunnel Scan can be used.
04
Four probes attach to the Telescopic Rod, and the two Plus-exclusive ones are heavier and longer
The Super Sensor is OKM's most sensitive probe, 950 mm (37.4 in) and about 1.0 kg (2.2 lb), used for 3D Ground Scan, Magnetometer, Pinpointer and Mineral Scan on both editions. The Telescopic Probe, a horizontal probe for wide areas, extends 820 to 1240 mm (32.3 to 48.8 in) at about 1.04 kg (2.29 lb), used for 3D Ground Scan and Magnetometer on both editions too. The Tunnel Sensor, Professional Plus exclusive, is a vertical probe at 500 mm (19.7 in) and about 0.76 kg (1.68 lb), built to find underground caves, tunnels and tombs. The Live-Stream Sensor, also Professional Plus exclusive, is a horizontal probe at 600 mm (23.6 in) and about 0.92 kg (2.03 lb), built to process a high volume of data and generate live underground images.
05
The Control Unit runs about 4 hours on a charge, and the Telescopic Rod a separate 5
The Control Unit weighs 2.34 kg (5.16 lb) and runs approximately 4 hours fully charged at 25Ā°C (77Ā°F); the Telescopic Rod adds 1.76 kg (3.88 lb) and runs separately, approximately 5 hours under the same condition. Both carry an IP40 safety rating, not waterproof, and both operate between -10Ā°C and 50Ā°C (14Ā°F to 122Ā°F). The Control Unit's 6.5-inch display runs 1024 by 768 pixels at 650 cd/mĀ² brightness, driven by a QuadCore AMD processor at 2 GHz with 4 GB of RAM and an 8 GB Class 10 SD card for storage. The two units talk over WiFi 802.11n at up to 54 Mbps, line of sight, out to a maximum of 4 m (13.1 ft) between them.
06
OKM's manual gives a direct warning: never move a suspected fuse, mark the spot and call the police
The manual describes the ground in many former conflict areas as a potential hazard, and instructs the operator not to dig or hack at a signal. It flags a red or reddish soil color as a rust indicator, and treats curved or round objects, buttons, rings and anything resembling ammunition as a sign to stop: leave the object exactly where it is, do not touch it, and do not take it home, because rusted rocket, acid or ball fuses can be triggered by the slightest movement. If a relic like this turns up, mark the location and report the find to the police. The unit also carries a built-in anti-tampering module that destroys it if improperly opened, with no end-user-serviceable parts inside, and the manual limits charging to the approved chargers and batteries in the box rather than a mains supply directly.
07 FOR UNIVERSITIES, COLLEGES AND GOVERNMENT AGENCIES
My Surveying Direct ships this direct from OKM and takes purchase orders from universities, colleges and government agencies
OKM German Detectors makes the eXp 6000 Professional Plus, and My Surveying Direct ships every order direct from the manufacturer. Purchase orders are accepted from universities, colleges and government agencies. OKM's own product page does not publish a general warranty term for this model; a two-year figure appears on OKM's FAQ, but it is scoped explicitly to buyers who purchase directly from OKM GmbH in Altenburg, Germany, not through a US reseller. OKM's own two pages also disagree on how many chargers and travel adapters ship with this unit, one states one of each and its editions comparison states two, and whether the Android Smart Glasses ship as standard or as an optional add-on is not settled across OKM's own sources either. Call and we will confirm exactly what your order includes and the applicable warranty terms before you buy. Speak to us at +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time.
Checkout above. Financing available with Affirm.
Institutions only: universities, colleges and government agencies.
Attached automatically.
Send the certificate once, we hold it on file.
On request, for committee approval.
One person, from quote to delivery.

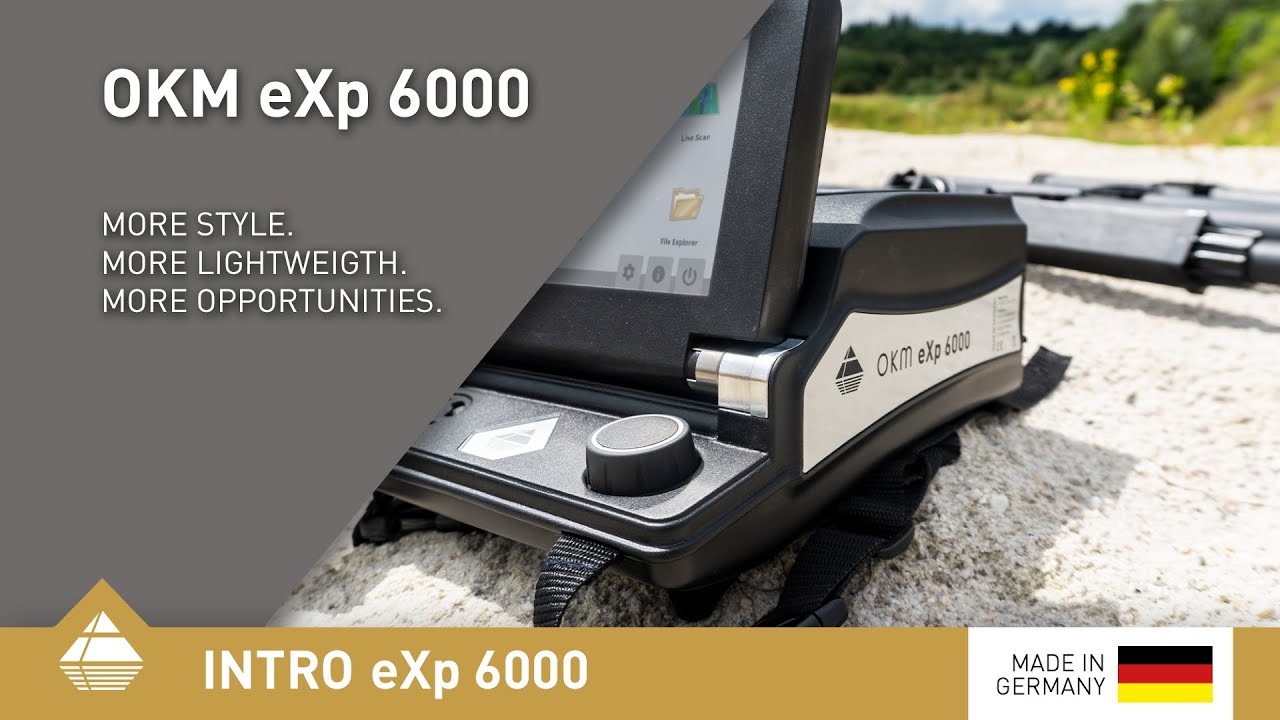

The original 2021 launch preview
The second video slide on OKM's own product page, also embedded from OKM's YouTube channel.
REFERENCE
Specifications
Control Unit
| Dimensions (H x W x D) | 120 x 210 x 280 mm |
| Weight | approx. 2.34 kg |
| Voltage | 11.8 - 19 VDC, 50 W maximal |
| Safety class | IP40 |
| Operating time | approx. 4 hours, fully charged at 25 Ā°C |
| Operating temperature | -10 Ā°C to 50 Ā°C |
| Display | 6.5" diagonal, 1024 x 768 pixel TFT color, 650 cd/mĀ² |
| Processing unit | QuadCore AMD @ 2 GHz, OpenGL 4.2 HD Radeon GPU |
| Working memory (RAM) | 4 GB Kingston HyperX |
| Data memory | 8 GB SD card, Class 10 |
| Storage temperature | -20 Ā°C to 60 Ā°C |
| Waterproof | No |
| Data transmission technology | WiFi 802.11n a/b/g, MIMO 2x2 |
| Data transmission rate | 11 Mbps to 54 Mbps |
| Range to Telescopic Rod | max. 4 m |
Telescopic Rod
| Dimensions (H x W x L) | 210 x 135 x 680-1340 mm |
| Weight | about 1.76 kg |
| Voltage | 11.8 - 19 VDC, 22 W maximal |
| Safety class | IP40 |
| Operating time | approx. 5 hours, fully charged at 25 Ā°C |
| Operating temperature | -10 Ā°C to 50 Ā°C |
| Processing unit | ARM Cortex M0+ @ 48 MHz |
| Data transmission technology | WiFi 802.11n a/b/g |
| Data transmission rate | 11 Mbps to 54 Mbps |
| Range to Control Unit | max. 4 m |
Probes and sensors
| Super Sensor, length / weight | 950 mm / approx. 1.0 kg |
| Super Sensor, receiver | Dual / Hi-Gain, vertical, geophysical phase reader, EMSR (SCMI-15-D) |
| Super Sensor, use case | The most sensitive probe of the set; used for 3D Ground Scan, Magnetometer, Pinpointer and Mineral Scan on both editions |
| Telescopic Probe, length / weight | 820-1240 mm / approx. 1.04 kg |
| Telescopic Probe, receiver | Dual geophysical phase reader, EMSR (SCMI-15-D) |
| Telescopic Probe, use case | Horizontal probe for scanning wide areas quickly; used for 3D Ground Scan and Magnetometer on both editions |
| Tunnel Sensor, length / weight | 500 mm / approx. 0.76 kg |
| Tunnel Sensor, receiver | Dual geophysical phase reader, EMSR (SCMI-15-D) |
| Tunnel Sensor, use case | Professional Plus exclusive. Vertical probe developed to find underground caves, tunnels and tombs; required for Tunnel Scan mode. The manual states: if this optional sensor is not already owned, one must be obtained before Tunnel Scan can be used |
| Live-Stream Sensor, length / weight | 600 mm / approx. 0.92 kg |
| Live-Stream Sensor, receiver | Hexa geophysical phase reader, EMSR (SCMI-15-D) |
| Live-Stream Sensor, use case | Professional Plus exclusive. Horizontal probe built to process a high volume of data and generate live underground images; required for Live Scan mode |
GPS Receiver
| Professional Plus exclusive | The GPS Receiver is included with the Professional Plus edition only; OKM's own editions comparison marks it absent from the base Professional edition |
| Dimensions (L x W x H) | 50 x 55 x 27 mm |
| Weight | about 60 g |
| Input voltage | 5 V DC |
| Input current (maximum) | 450 mA |
| Input current (typical) | 50 mA |
| Refresh rate | 1 s |
| Cold start | < 40 s |
| Warm start | < 30 s |
| Horizontal position accuracy (most cases, outdoor) | 2.7 m |
| Horizontal position accuracy (free view, clear sky) | 0.9 m |
Operating modes
| 3D Ground Scan | Included on both editions. Visualizes underground artifacts and cavities in 3D |
| Magnetometer | Included on both editions. Localizes ferromagnetic objects |
| Pinpointer | Included on both editions. Identifies and localizes a detected anomaly's exact position |
| Mineral Scan | Included on both editions. Detects natural mineralization, visualized as a color-coded graph |
| Live Scan | Professional Plus exclusive (per OKM's own editions comparison). Requires the Live-Stream Sensor; shows what is directly under the probe in real time as the operator walks in any direction |
| Tunnel Scan | Professional Plus exclusive (per OKM's own editions comparison). Requires the Tunnel Sensor; identifies tunnels, voids and caverns, visualized as a color-coded graph. Two scan methods: Parallel Mode (as in 3D Ground Scan) or a Single Line scan saved to internal memory |
Professional vs Professional Plus (per OKM's own comparison page)
| Shared components | Identical on both editions |
| GPS Receiver (removable) | Professional: not included. Professional Plus: included |
| Probes | Professional: Super Sensor and Telescopic Probe only. Professional Plus: adds the Live-Stream Sensor and Tunnel Sensor |
| Software edition | Professional ships Visualizer 3D Studio Standard Edition. Professional Plus ships the Professional Edition |
| Operating modes | Professional: 3D Ground Scan, Pinpointer, Mineral Scan, Magnetometer. Professional Plus adds Live Scan and Tunnel Scan |
Safety and cautions (from the hardware manual)
| Danger of explosion during excavation | The manual states: "the last two world wars also made the ground in many places of the world a potentially explosive scrap heap... Do not start digging and hacking for an object wildly when you receive a signal." It instructs the operator to note the color of the ground (a red or reddish color indicates rust traces), to treat curved or round objects, buttons, rings, recognizable ammunition, bullets or shells as a sign of alarm, to leave any such object exactly where it is, not touch it and not take it home, because rusted rocket fuses, acid fuses and ball fuses can be triggered by the slightest movement and "moving such an object may cause those crystals to produce friction, leading to an explosion." If such a relic is found, the manual instructs the user to mark the location and report the find to the police |
| Possible health hazards | "If used properly this device normally does not pose any health hazards. According to current scientific knowledge, the high-frequency signals are not harmful to the human body on account of their low power" |
| Voltage | "Never use the 115/230 Volt mains supply." Use only the approved chargers, batteries and rechargeable batteries included in the scope of delivery |
| Surrounding area, magnetic fields | Avoid strong magnetic fields such as those from large electric motors or unshielded loudspeakers; the manual recommends staying outside 50 meters (150 ft) of this type of equipment. Metallic objects on the ground or worn on the person (cell phones, keys, jewelry, steel toe boots) can distort scan data and should be removed before scanning |
| Anti-tampering module | "The device has a built in anti-tampering module which will destroy the unit if it is improperly opened. There are no end user serviceable parts on the inside of the unit" |
| Data safety, causes of data errors | The manual lists four causes: the sender module's range has been exceeded, the device's or a probe's battery is too low, the unit is operating too close to another device that emits disturbances, or atmospheric conditions such as electrical storms or lightning |
| Care and use, hard DO NOTs | The manual lists explicit prohibitions: do not use the machine to clear bushes or pry rocks loose, do not drop it into water or use it in rain, do not leave it exposed to dew overnight, do not store it somewhere it can get extremely hot, do not leave it in a hot car trunk, do not spray lubricants, cleaners, solvents or other chemicals onto the electronics, and do not attempt to modify or repair the detector's electronics, which voids the warranty |
Ordering
| Manufacturing status | OKM's own product page marks this SKU as no longer manufactured and names the OKM eXp 7000 Professional Plus as its successor product. |
| Dealer status | My Surveying Direct. Vendor: OKM German Detectors |
| Purchase orders | Accepted from universities, colleges and government agencies |
| Shipping | Shipped direct from the manufacturer |
| Speak to us | +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time |
