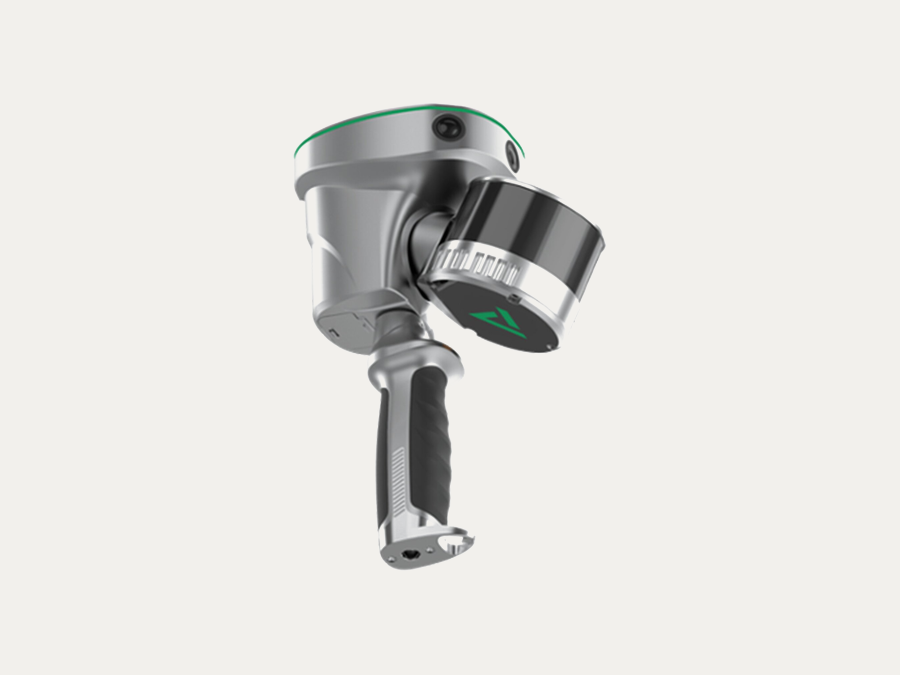

GeoCue TrueView GO 132S Standard
This one is configured rather than shelved. Tell us the airframe and what you are surveying and we will price it properly, including the mount and the processing service.
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
Thirty-two channels in a handheld scanner. You walk the site and it builds the model as you go, indoors and out, without needing a clear sky.
What thirty-two channels buys you over sixteen
Point density, and with it the detail that survives into the finished model. Against the 116S it is roughly $17,760 more. That is worth paying when the deliverable is a detailed as-built or a scan-to-BIM handover, and not worth paying when you are capturing volumes or a floor plan.
Standard against Basic
Identical instrument. The only difference is the LP360 Land licence tier in the box, and Standard is $3,500 more. If you already run LP360 Land Standard on another seat, buy the Basic and save the money.
Specification
| LiDAR channels | 32 |
|---|---|
| Scanner type | Rotating, survey grade |
| Cameras | Three 5 MP RGB, 15 MP combined |
| Positioning | GNSS RTK and PPK, fused with laser and visual SLAM |
| Operation without GNSS | Computes RTK and PPK coordinates from LiDAR and visual SLAM where satellite positioning is weak or absent |
| Path planning | Loop-free with GNSS RTK and PPK |
| Field software | TrueView GO tablet software, live point cloud during capture |
| Processing | LP360 Land |
| Manufacturer part number | FTV1001666A00T |
| Country of origin | China |
| TAA compliant | Ask us, we will confirm in writing |
| Shipping weight | 31 lb |
Worth a call first
Handhelds are easy to specify badly, because the honest answer often depends on what you are walking through rather than what you are measuring. Describe the site and we will tell you which channel count you need.
Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email us. Purchase orders accepted.
