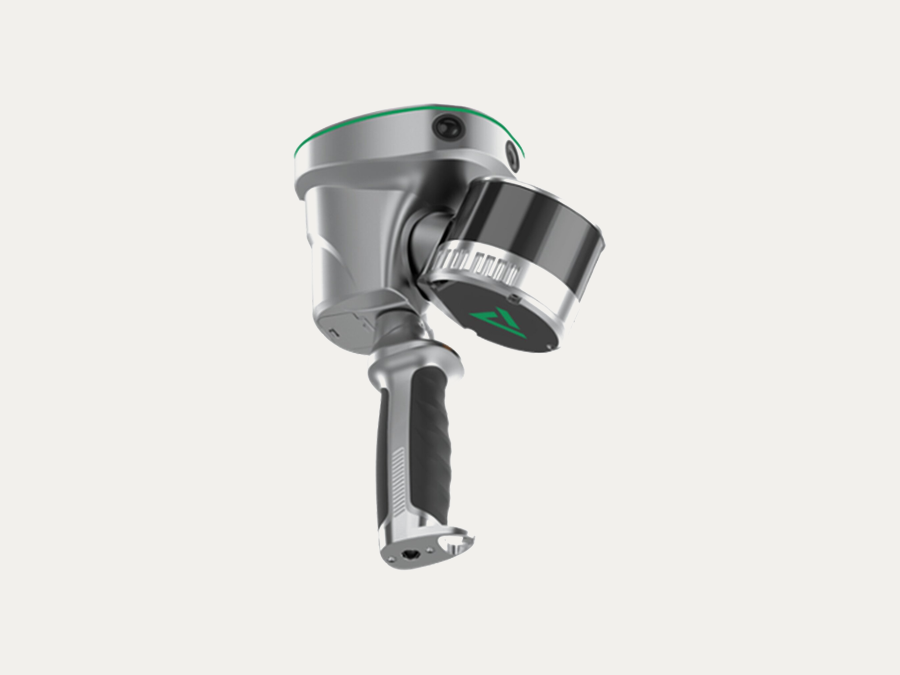

GeoCue TrueView GO 132S Basic
This one is configured rather than shelved. Tell us the airframe and what you are surveying and we will price it properly, including the mount and the processing service.
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
The 32-channel handheld with the Basic LP360 Land licence. Same scanner as the Standard, $3,500 less, and the right buy if you already have a Standard seat.
What you are giving up, and what you are not
Nothing on the hardware. The instrument, the cameras, the GNSS and the capture are identical to the Standard. The difference is entirely which LP360 Land tier ships with it, and you can move up later.
Against the 116S Basic
The 116S Basic is $17,760 cheaper and has half the channels. If the work is volumes, floor plans or general site capture, that is the sensible buy. Come to the 132S when point density is what the client is paying for.
Specification
| LiDAR channels | 32 |
|---|---|
| Scanner type | Rotating, survey grade |
| Cameras | Three 5 MP RGB, 15 MP combined |
| Positioning | GNSS RTK and PPK, fused with laser and visual SLAM |
| Operation without GNSS | Computes RTK and PPK coordinates from LiDAR and visual SLAM where satellite positioning is weak or absent |
| Path planning | Loop-free with GNSS RTK and PPK |
| Field software | TrueView GO tablet software, live point cloud during capture |
| Processing | LP360 Land |
| Manufacturer part number | FTV1001748A00T |
| Country of origin | China |
| TAA compliant | Ask us, we will confirm in writing |
| Shipping weight | 31 lb |
Worth a call first
Handhelds are easy to specify badly, because the honest answer often depends on what you are walking through rather than what you are measuring. Describe the site and we will tell you which channel count you need.
Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email us. Purchase orders accepted.
