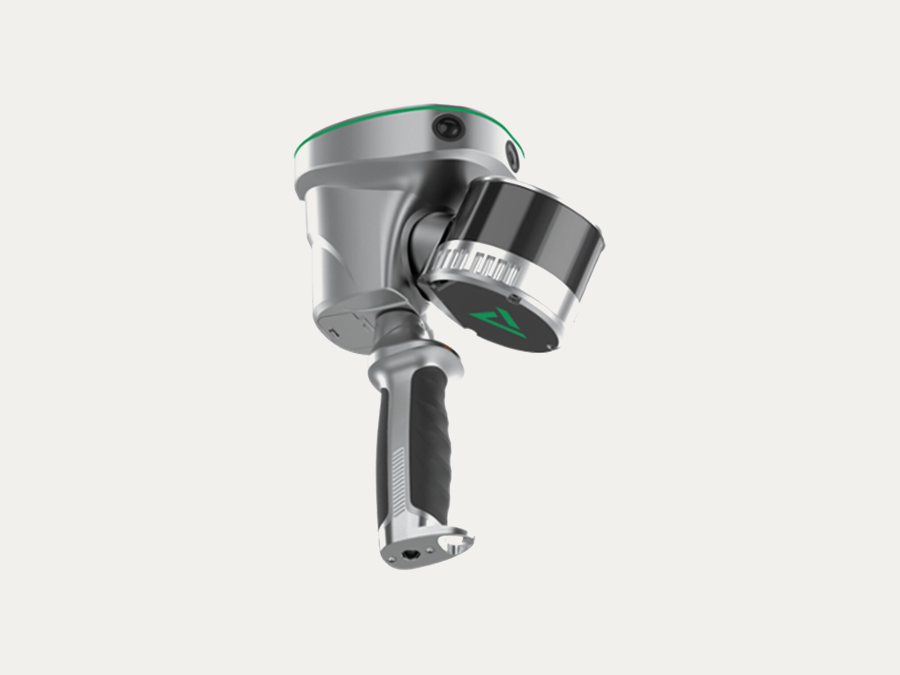

GeoCue TrueView GO 116S Standard
This one is configured rather than shelved. Tell us the airframe and what you are surveying and we will price it properly, including the mount and the processing service.
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
Sixteen channels, handheld, and it keeps working where GNSS does not. Start walking and it scans.
The case for the 116S over the 132S
Half the channels and roughly $17,760 less. For volumes, floor plans, general site capture and most construction progress work, sixteen channels produce a model nobody will complain about. The 132S is the buy when point density is the deliverable rather than a means to it.
Weak GNSS and indoors
It runs on SLAM with the GNSS as a correction rather than a crutch, so plant rooms, basements, tunnels and tree cover are all in scope. This is the practical reason handhelds get bought alongside a drone rather than instead of one.
Standard against Basic
Same scanner. The $3,500 is the LP360 Land licence tier. Already have a Standard seat, buy the Basic.
No loop closure
Path planning is loop-free when you have RTK or PPK. No walking the site twice to close a loop, and no overlap requirement. On a large or awkward floor plate that is the difference between one pass and two.
Specification
| LiDAR channels | 16 |
|---|---|
| Scanner type | Rotating, survey grade |
| Cameras | Three 5 MP RGB, 15 MP combined |
| Positioning | GNSS RTK and PPK, fourth-generation air dielectric antenna, fused with laser and visual SLAM |
| Operation without GNSS | Computes RTK and PPK coordinates from LiDAR and visual SLAM where satellite positioning is weak or absent |
| Path planning | Loop-free with GNSS RTK and PPK, no traditional loop closure or overlap required |
| Remote measurement | Captures reference points on inaccessible surfaces without standing on them |
| Field software | TrueView GO tablet software, live point cloud during capture |
| Processing | LP360 Land |
| Manufacturer part number | FTV1001665A00T |
| Country of origin | China |
| TAA compliant | Ask us, we will confirm in writing |
| Shipping weight | 31 lb |
Worth a call first
Handhelds are easy to specify badly, because the honest answer often depends on what you are walking through rather than what you are measuring. Describe the site and we will tell you which channel count you need.
Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email us. Purchase orders accepted.
