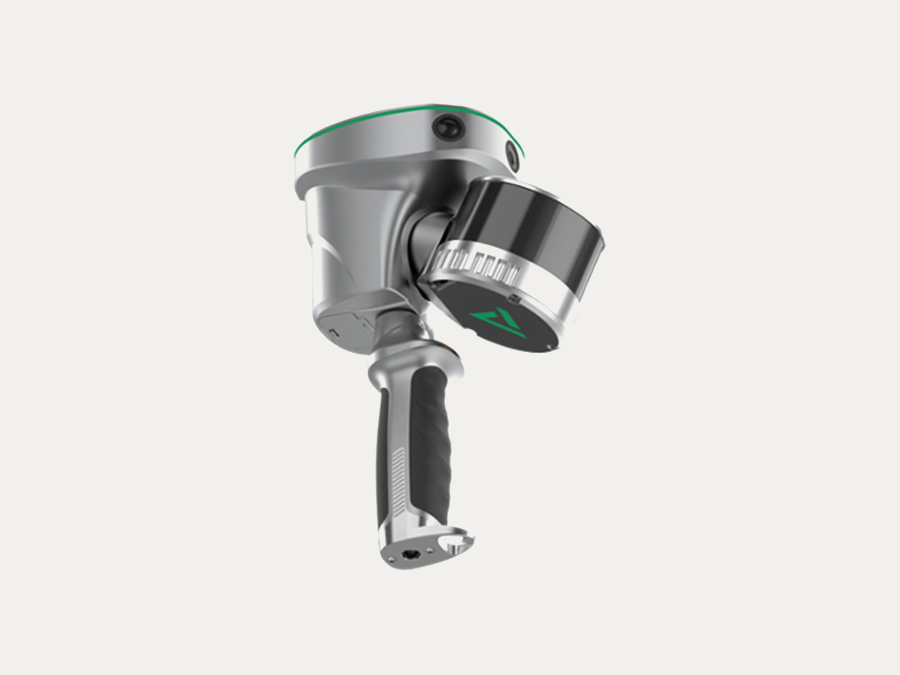

GeoCue TrueView GO 116S Basic
This one is configured rather than shelved. Tell us the airframe and what you are surveying and we will price it properly, including the mount and the processing service.
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
The cheapest way into the TrueView GO S-series. Sixteen channels, the Basic LP360 Land licence, and the same capture as the Standard.
Who this is for
A firm buying its first handheld, or a second unit for a crew that already has LP360 Land Standard on a processing seat. You are not compromising on the scan, only on which software tier arrives with it.
Where sixteen channels stop being enough
When the client is paying for density: detailed as-builts, scan-to-BIM, heritage recording. At that point the 132S is worth its extra $17,760. Below it, this is the better value in the range.
No loop closure
Loop-free path planning with RTK or PPK, so no second pass to close a loop and no overlap requirement. It saves more time on site than the channel count argument usually does.
Specification
| LiDAR channels | 16 |
|---|---|
| Scanner type | Rotating, survey grade |
| Cameras | Three 5 MP RGB, 15 MP combined |
| Positioning | GNSS RTK and PPK, fourth-generation air dielectric antenna, fused with laser and visual SLAM |
| Operation without GNSS | Computes RTK and PPK coordinates from LiDAR and visual SLAM where satellite positioning is weak or absent |
| Path planning | Loop-free with GNSS RTK and PPK, no traditional loop closure or overlap required |
| Remote measurement | Captures reference points on inaccessible surfaces without standing on them |
| Field software | TrueView GO tablet software, live point cloud during capture |
| Processing | LP360 Land |
| Manufacturer part number | FTV1001747A00T |
| Country of origin | China |
| TAA compliant | Ask us, we will confirm in writing |
| Shipping weight | 31 lb |
Worth a call first
Handhelds are easy to specify badly, because the honest answer often depends on what you are walking through rather than what you are measuring. Describe the site and we will tell you which channel count you need.
Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email us. Purchase orders accepted.
