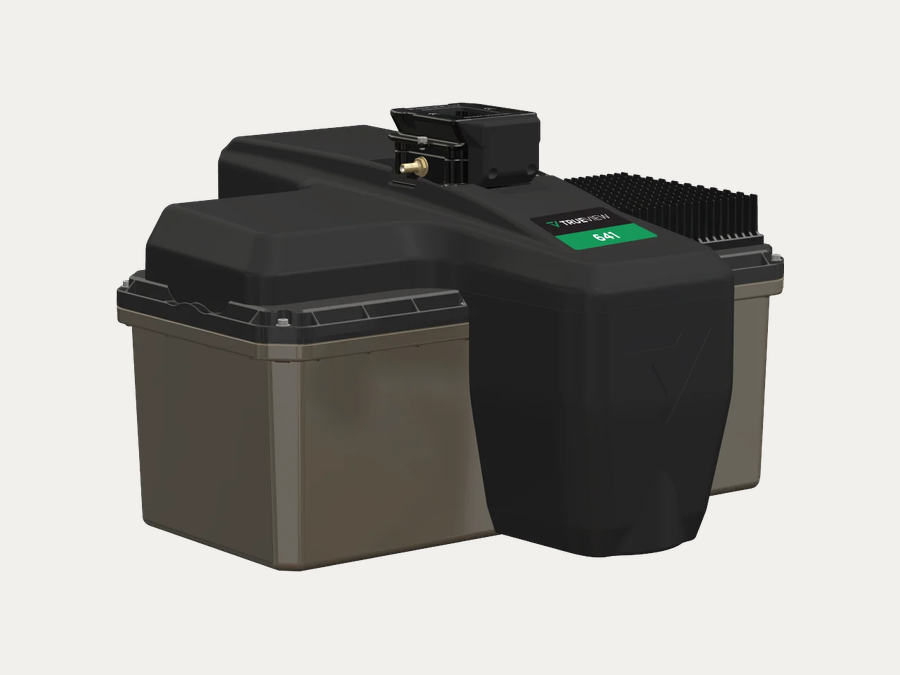

GeoCue TrueView 641
This one is configured rather than shelved. Tell us the airframe and what you are surveying and we will price it properly, including the mount and the processing service.
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
The 641 reaches further than anything else GeoCue makes, and it is built in the United States. Either of those would sell it. Together they make it the obvious sensor for federal work that also has to perform.
Up to six returns, and 170 m of usable range
The 535 gets three returns at 120 m and that is a strong sensor. This gets up to six at 170 m. More returns means more chances to find ground through canopy, and the extra range means higher flight lines and fewer passes over the same ground.
Scanner precision is 3 mm or better and accuracy 4 mm or better, against 10 mm and 20 mm on the 515 and 535. The pulse rate is lower, up to 125 kHz, because this is a single beam scanner rather than a 32 channel one. It builds density from range and returns instead.
Why origin decides this one for some buyers
The 515 and 535 are made in Switzerland. For a commercial buyer that is irrelevant. For a federal agency, a defence prime or a university spending federal grant money it can end the conversation before the specification is read. The 641 is built in the United States and carries an NDAA compliant camera.
Ask us for the compliance paperwork early and we will get it from GeoCue in writing rather than send you a catalogue field.
Buying through a purchasing office
We are set up for it. Purchase orders accepted, W-9 and vendor pack go out attached to the quote, and we will put the sensor, the mount and the software on one line if that is easier to approve than four.
Specification
| LiDAR scanner | Single beam, Triple-IN SLP-LW |
|---|---|
| Beams and returns | Up to 6 |
| Usable range | 170 m at 20 per cent reflectivity |
| Field of view | 120 degrees |
| Pulse repetition rate | Up to 125 kHz |
| Scanner performance | Precision 3 mm or better, accuracy 4 mm or better |
| Positioning and orientation | TrueNav |
| Camera | 26 MP global shutter, NDAA compliant |
| Operating temperature | minus 10 to 50 degrees C |
| Mass, payload only | 2 kg, excluding battery, mount, antenna and power adapter |
| Manufacturer part number | FTV1002147A00T |
| Country of origin | United States |
| TAA compliant | Ask us, we will confirm in writing |
| Shipping weight | 13.35 lb |
Procurement
Send us the solicitation or the requirement and we will come back with a quote in the format your office needs, with the compliance documentation attached rather than promised.
Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email us. W-9 and vendor pack go out with every quote.
