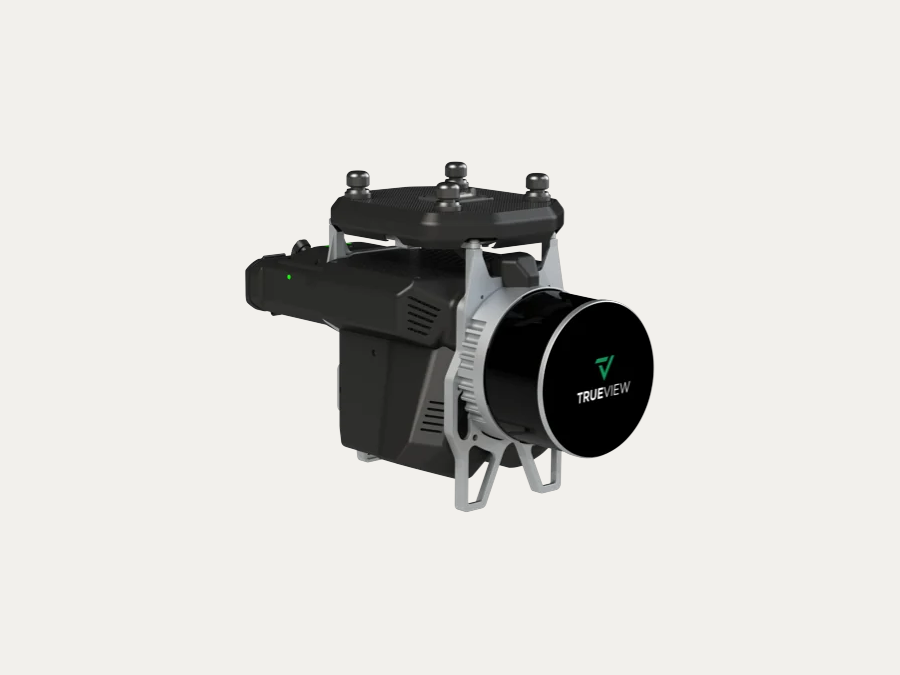

GeoCue TrueView 515
This one is configured rather than shelved. Tell us the airframe and what you are surveying and we will price it properly, including the mount and the processing service.
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
The 515 is the sensor most people in the middle of this market actually buy, and it holds definition along wires better than anything else near its price.
What it is good at
Utility corridors, road and rail, site topography. Two returns at 80 m usable range, 3 cm RMSE typical on the system as a whole. It gets ground under light and moderate cover, which covers most of the work most crews fly.
When to spend the extra $11,150 on a 535
One reason only: dense canopy. The 535 adds a third return and takes usable range to 120 m. If you are not fighting vegetation, that money buys you nothing you will notice, and we would rather you kept it.
Specification
| Laser scanner | Hesai Pandar XT32M1X |
|---|---|
| Beams and returns | 32 beams, 2 returns |
| Usable range | 80 m at 20 per cent reflectivity |
| Cross-track field of view | 120 degrees |
| Pulse repetition rate | 640 kHz |
| Scanner performance | Precision 10 mm, accuracy 20 mm |
| GNSS and INS | Position 20 to 50 mm, 0.025 degrees roll and pitch, 0.08 heading |
| System performance | Typical 20 mm on one strip, under 15 mm at 75 m on concrete |
| Camera | Two 26 MP Sony mechanical leaf shutter, calibrated |
| Mass, payload only | 1.99 kg, excluding battery, mount, antenna and power adapter |
| Manufacturer part number | FTV1002194A00T |
| Country of origin | Switzerland |
| TAA compliant | Ask us, we will confirm in writing |
| Shipping weight | 10 lb |
One thing to settle before you order. GeoCue documents the Version C build of this sensor and the Version C change is the cameras specifically. This is the Version B build. The scanner, the range, the field of view and the accuracy figures are the laser and the GNSS, and they hold across both. The camera count does not, so it is not in the table above. Ask us and we will get it confirmed in writing before you commit.
Before you order
At this level we would rather have a conversation than take a card. Tell us the airframe, the terrain and what the client is actually buying, and we will tell you which sensor fits and whether the cheaper one would have done.
Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, or email us. Purchase orders accepted, W-9 and vendor pack attached to the quote.
