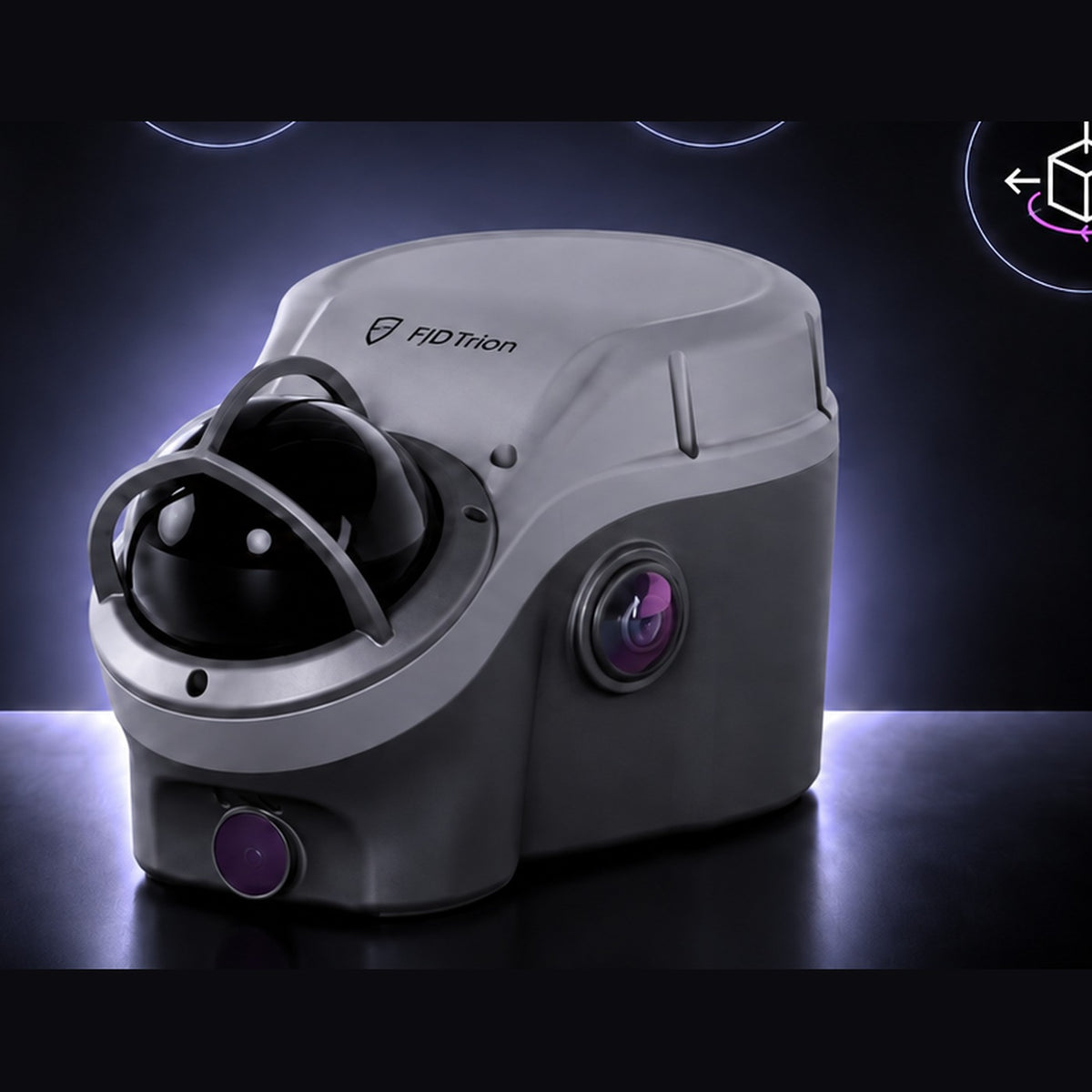

FJ Dynamics Trion V100F GNSS and LiDAR Fusion Receiver
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
GNSS, LiDAR, cameras and an IMU in one housing, so the position holds where a receiver on its own would lose it.
As an RTK rover it runs 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical, with tilt compensation to 60° at 8 mm + 0.6 mm per degree, for up to 22 hours at about 3 W.
Switch to capture and the 32-line sensor scans 360° × 62°, reaching 40 m at 10 per cent reflectivity and 60 m at 80 per cent, with SureFix holding roughly 5 cm at a 20 m radius. That is the point of the thing: under canopy, hard against a building, down a street where half the sky is gone, the LiDAR and the cameras carry the solution the satellites cannot.
Five hours scanning at about 15 W, and 3.5 hours to put 74 Wh back in. 1.75 kg, 215 × 130 × 120 mm, IP65 and IK08.
