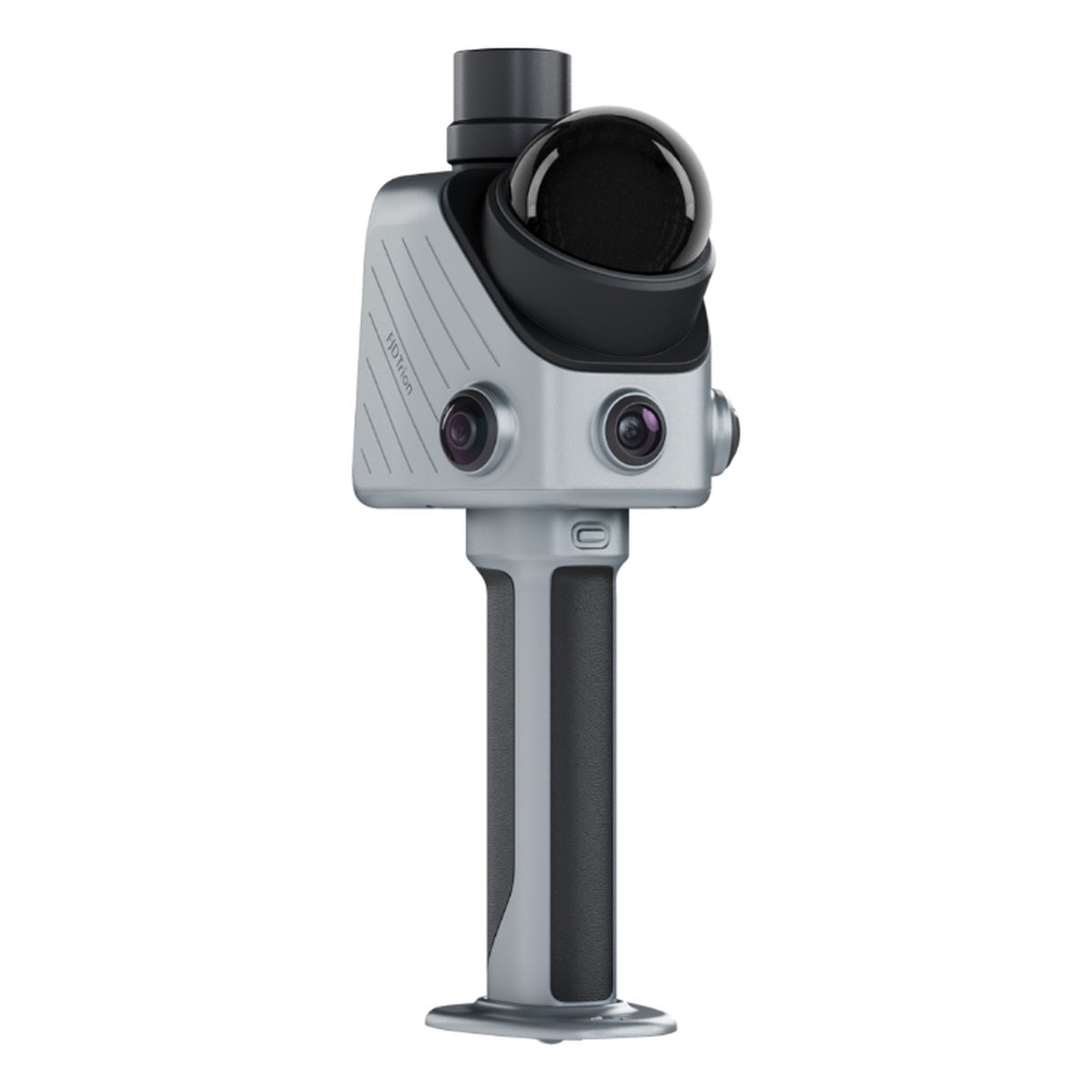

FJ Dynamics Trion X1 LiDAR Scanner

A 900 g scanner head on a 1.3 kg setup, capturing 384,000 points a second across a 360° × 62° field of view. Post-processed accuracy is ±1 cm relative, ±3 cm absolute.

Two 48 MP panoramic cameras colour the cloud, and a forward 1280 × 1024 camera drives visual SLAM for tracking where GNSS is unavailable. Scan resumption means a job interrupted is a job you can pick back up rather than start again.

Range is 40 m at 10 per cent reflectivity and 70 m at 80 per cent. One set of two batteries gives up to five hours at around 18 W, and the 67 W charger takes both at once. Storage is 512 GB, expandable to 1 TB.

Output is LAS, PLY, PTS or E57, so the cloud drops into the processing chain you already run. IP54, rated −20 °C to 50 °C, Class 1 eye safe.

The package includes the FJD Trion Model Basic permanent software licence and RTK.
