FJ Dynamics Trion T1 LiDAR Scanner
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
One instrument, two modes. Mobile for coverage, tripod for detail, same hardware either way.

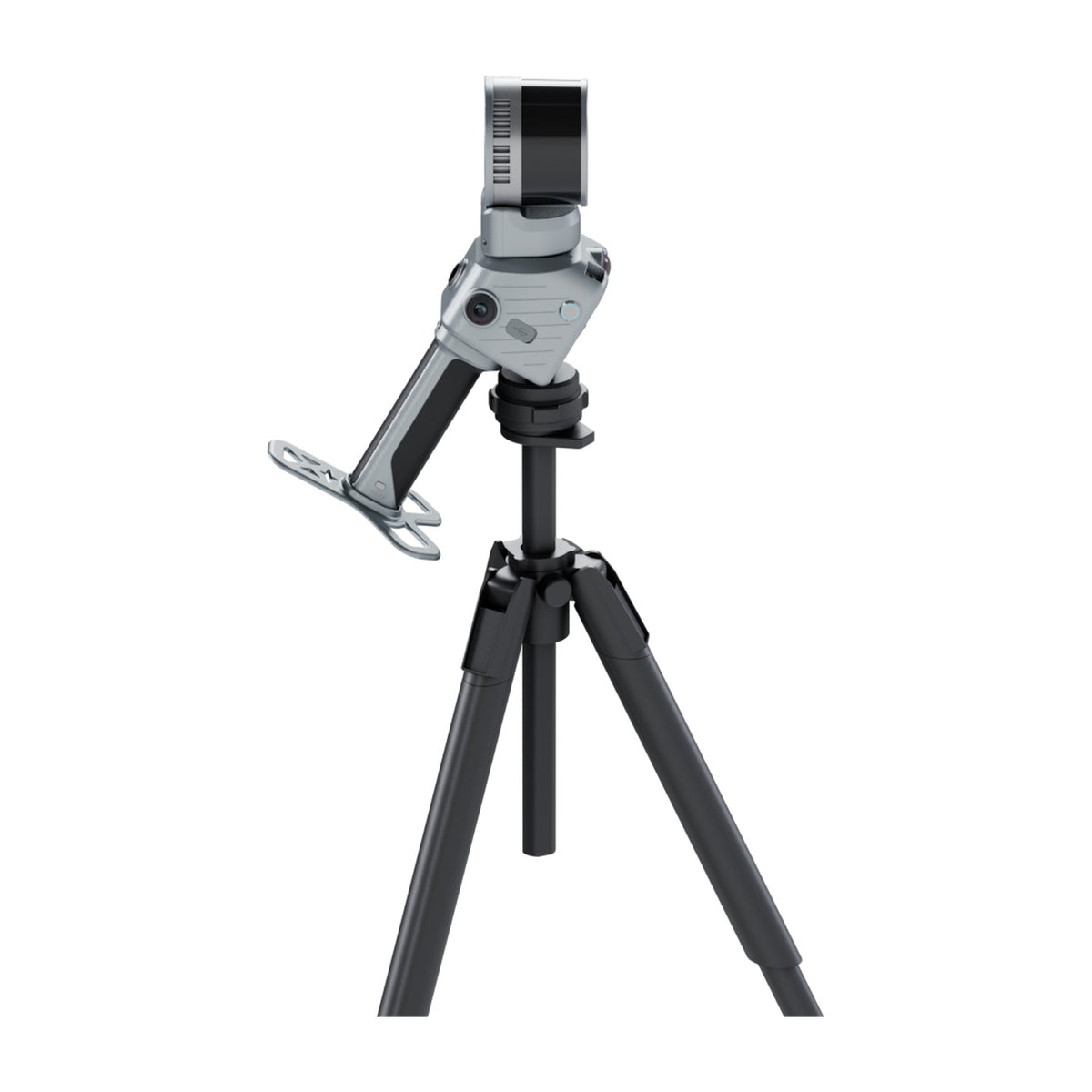

Handheld or vehicle mounted, the T1 captures 640,000 points a second from 0.5 to 120 m, with relative accuracy at or under 1 cm. Set it on a tripod and it works as a terrestrial scanner from 0.5 to 60 m, resolving 4 mm at 10 m and 8 mm at 30 m.
The 360° × 270° field of view leaves little behind it. Mobile imaging runs a 1080p camera with two 48 MP sensors; on the tripod, three 48 MP sensors handle colour at f/2.
GNSS is built in across BeiDou, GPS, GLONASS, Galileo and QZSS, with RTK at 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical. PPK is supported where you would rather post process.
1.645 kg for the main unit, 2.23 kg set up. 3.5 hours on a charge, 512 GB expandable to 1 TB, IP54, −20 °C to 50 °C. 905 nm, Class 1 eye safe.
