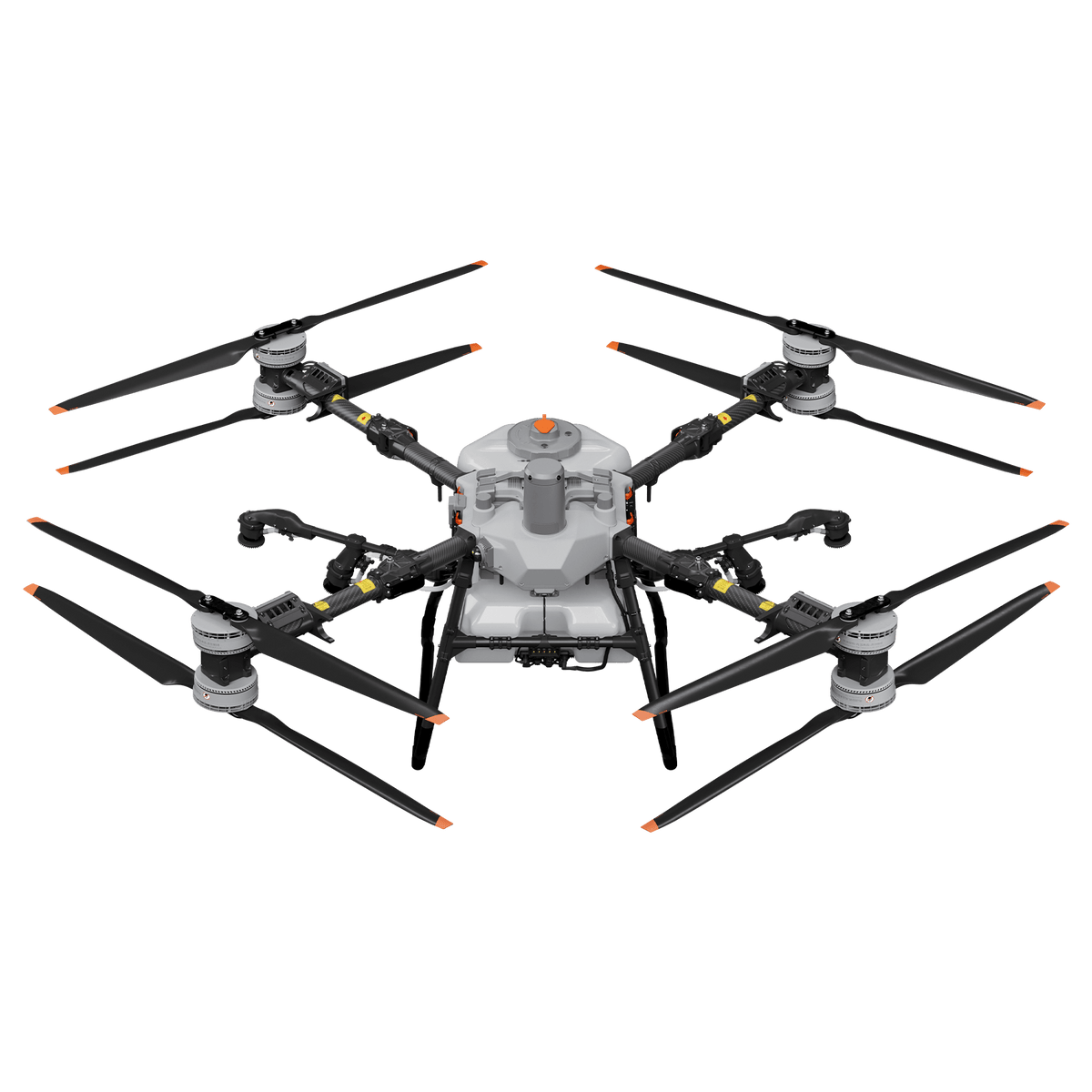

DJI Agras T100 Spray Kit
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
The T100 aircraft and its air-cooled spraying system, ordered as one line rather than two. 100 L tank, 5 to 13 m spray width, up to 40 L/min in the optional four-nozzle configuration. Batteries and charging are ordered separately.
01
Aircraft and sprayer only, with no batteries and no charging, which is the thing to check first
This kit is two DJI part numbers on one purchase order: the aircraft and its air-cooled spraying system. It contains no flight batteries and no power supply. An aircraft with no batteries does not fly. This kit suits an operation that already has DB2160 batteries and charging on the shelf, or one adding a second aircraft to an equipped flight line. If that is not you, the Ready to Fly kit is the same configuration with three batteries and the charger included. One thing is genuinely unresolved and we would rather say so than let you find out. Our supplier carries the aircraft and the spraying system as two separate part numbers, which is how this kit is priced. DJI's own package comparison presents spraying as an attribute of the T100 family rather than a separate purchase. Two US sellers list the aircraft at the same price we do, with a spraying system already in the carton. Tell us the work and we will confirm the exact contents in writing before anything ships.
02
Buy this only if your batteries and charger are already sitting in the barn
We would rather lose the order than have an aircraft arrive that cannot leave the ground. Three DB2160 batteries and one C12000 power supply is the smallest set that keeps a T100 working continuously. A recharge runs 8 to 9 minutes and a sortie runs longer. If you have those already, this kit is the cheaper way to add the aircraft and sprayer. If you do not, order the configuration that includes them.
03
The T100 carries a 100 L tank and a 175 kg maximum takeoff weight in spraying configuration
The aircraft is rated to 175 kg maximum takeoff weight in spraying configuration, measured at sea level, which is DJI's own stated condition. Empty, in that same configuration, it is 75 kg, about 165 lb. Wind resistance is rated to 6 m/s, about 13.4 mph. Those three numbers set the working envelope between them. What the aircraft can lift, what it weighs before you load anything, and the day you leave it in the barn.
04
The air-cooled spraying system holds 100 L and covers 5 to 13 m, with droplets from 50 to 500 microns
The tank is 100 L of HDPE. Effective spray width is 5 to 13 m and droplet size runs from 50 to 500 microns, which is the range that separates canopy penetration from drift. Maximum flow rate is 40 L per minute in the optional four-nozzle configuration. Air cooling is what lets the pumps hold a rate like that through a working day rather than through a demonstration.
05
The batteries and charger this aircraft needs are sold on their own listings here
This kit contains no flight batteries and no charging equipment. The DB2160 Intelligent Flight Battery and the C12000 Intelligent Power Supply are both stocked and both listed on their own pages, where every figure is sourced and conditioned. Where a field has no mains supply for the charger, the D14000iEP generator does the same job on fuel. Call us and we will put whichever you need onto the same purchase order as this kit.
06
The T100 is over the FAA's 55 lb threshold empty, so it flies under Part 137 with exemptions, not Part 107
At about 165 lb empty in spraying configuration, this aircraft is over the 55 lb threshold before anything is loaded into it. Part 107, which covers drones under 55 lb, is not the route. Operation is under 14 CFR Part 91 and Part 137, and it requires exemption from several regulations across Parts 61, 91 and 137. The FAA states that exemption holders must obtain a Remote Pilot Certificate and register the aircraft. Budget the paperwork alongside the equipment, and start it early.
07 FOR UNIVERSITIES, COLLEGES AND GOVERNMENT AGENCIES
We take purchase orders from institutions, and we confirm the build in writing before you buy
My Surveying Direct accepts purchase orders from universities, colleges and government agencies, with a W-9 and vendor pack attached to every quote. Card checkout is open to everyone else. This kit ships direct from the manufacturer. Tell us what batteries and charging you already run, and we will confirm the exact build before you buy. Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time.
Checkout above. Financing available with Affirm.
Institutions only: universities, colleges and government agencies.
Attached automatically.
Send the certificate once, we hold it on file.
On request, for committee approval.
One person, from quote to delivery.
REFERENCE
Specifications
What is in the kit
| 1 x DJI Agras T100 Agriculture Drone | Supplied as its own DJI part number on one purchase order, and also sold on its own listing |
| 1 x DJI Agras T100 Spraying System, air cooled | Supplied as its own DJI part number on one purchase order, and also sold on its own listing |
The aircraft
| Weight, spraying | 75 kg with two nozzles, 77 kg with four |
| Weight, spreading | 75 kg with the spreading system fitted |
| Weight, lifting | 65 kg, or 90 kg with the dual battery lifting system |
| Max takeoff weight, spraying | 175 kg (386 lb) with two nozzles, 177 kg with four. DJI footnote 1: measured at sea level |
| Max takeoff weight, spreading | 175 kg |
| Max takeoff weight, lifting | 165 kg, or 170 kg with the dual battery lifting system |
| Diagonal wheelbase | 2,330 mm |
| Dimensions, arms and propellers unfolded | 3,220 x 3,224 x 975 mm |
| Dimensions, fully folded | 1,105 x 1,265 x 975 mm |
The aircraft, flight
| Max configurable flight radius | 2 km |
| Max wind resistance | Under 6 m/s (13.4 mph) |
| Operating temperature | 0 to 40 degrees C |
The aircraft, propulsion
| Motors | 155 x 16 mm stator, 60 rpm/V |
| Propellers | Carbon fiber composite, 62 inches, 8 pairs |
| Power efficiency | DJI states the 62 inch carbon fiber propellers raise full load power efficiency by 39 percent and propeller efficiency by 32 percent against the Agras T50 |
The aircraft, sensing
| Sensing suite | LiDAR, penta vision system, millimeter wave radar |
| What the LiDAR adds | DJI states higher point cloud density for identifying wires, poles, high voltage towers and trees. DJI footnote 5: linear obstacles such as wires or guy wires on power poles must be marked as obstacles, and failure to bypass them is the customer's responsibility |
| Obstacle avoidance speed ceiling | 13.8 m/s. DJI's FAQ ties log-analysis warranty consideration for linear-obstacle collisions to speeds up to 13.8 m/s |
Compliance and the FAA route
| NDAA | Not NDAA compliant. Not offered for federal work |
| FCC | FCC ID SS3-T100A2411, authorized before the December 2025 Covered List designation, so it remains legal to import, sell and operate in the United States |
| US operating rule, over 55 lb | The aircraft is 75 kg, about 165 lb, in spraying configuration before anything is loaded, so it is over the FAA's 55 lb threshold empty. It is operated under 14 CFR Part 91 and Part 137 and requires exemption from several regulations in 14 CFR Parts 61, 91 and 137. Part 107 covers drones under 55 lb, which this is not |
| Pilot credential | The FAA states that exemption holders' basic requirements include obtaining a Remote Pilot Certificate and registering their UAS |
| FAA step 1, registration | The aircraft must be registered and the operator must apply for an N-number through Civil Aviation Registry Electronic Services (CARES) or by mail |
| FAA step 2, exemption petition | A petition for exemption must be sent at least 120 days before you need the exemption to take effect, or 120 days before an existing exemption expires if extending (14 CFR 11.63(d)) |
| FAA step 3, operational information | Basic operational information must reach the FAA before an exemption is issued, including the Chief Supervisor of Operations, the pilot in command's name and pilot certificate number, and each aircraft's make, model and N-number |
| FAA step 4, operator certificate | An Agricultural Aircraft Operator Certificate is obtained on FAA Form 8710-3, and the FAA requires the exemption process to be complete and the exemption number received before applying for it |
The spraying system
| Model | LS100 |
| Material | HDPE |
| Volume | 100 L |
| Operating payload, full tank | 100 kg. DJI's own footnote: measured at sea level, and the DJI Agriculture App recommends the loaded weight based on current aircraft status, environmental conditions and operational tasks |
The spraying system, sprinklers
| Model | LX07550SX, standard nozzle. LX09550SX, optional mist nozzleMatches our own listing's naming exactly; no divergence found against DJI's own specification page for this SKU |
| Quantity | Two as standard, four optional |
| Nozzle spacing | 1,834 mm, outermost, on both the two-nozzle and four-nozzle configuration |
| Droplet size | 50 - 500 μm. DJI's own condition, published on its main product page: the droplet diameter is measured by a laser particle size analyzer, using the DV50 standard |
| Effective spray width | 5 - 13 m. DJI's own footnote: the effective spray width of the spraying system depends on the actual working scene |
The spraying system, pumps
| Type | Impeller pump, magnetic drive |
| Quantity | Two |
| Max flow rate | 30 L/min with the standard two nozzles, 40 L/min with the optional fourDJI's own FAQ credits the redesigned pump with an 87.5 percent flow-rate increase over the T50's spraying system |
Ordering
| What this kit does not include | No flight batteries and no charging equipment. The DB2160 Intelligent Flight Battery, the C12000 Intelligent Power Supply and the D14000iEP Multifunctional Inverter Generator are each sold on their own listings |
| Purchase orders | My Surveying Direct accepts purchase orders from universities, colleges and government agencies, with a W-9 and vendor pack attached to every quote |
| Supply | Shipped direct from the manufacturer |
| Speak to us | Call +1 888 850 6533, Monday to Friday, 9 to 5 Mountain Time, and we will confirm the exact build in writing before anything ships |
