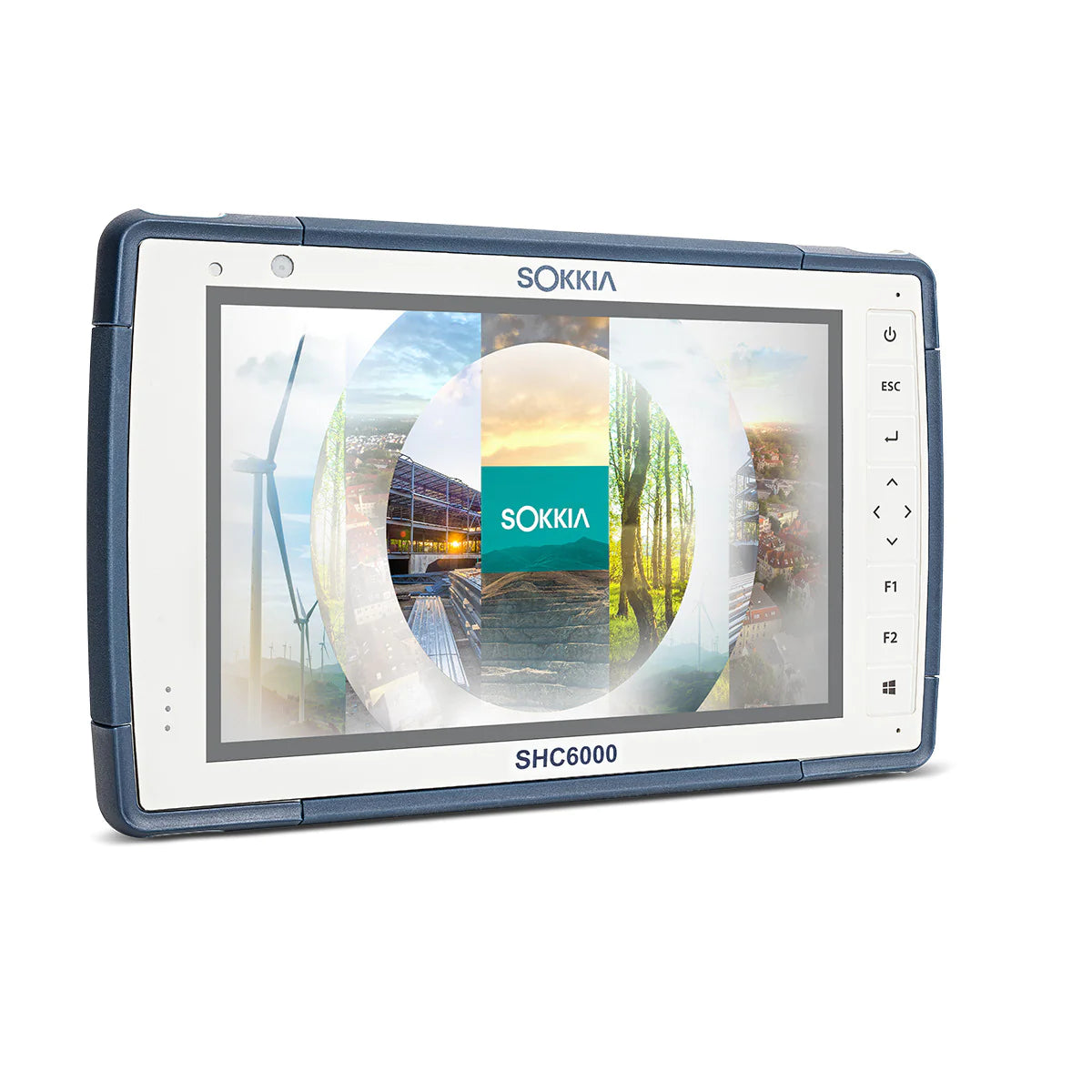

Sokkia SHC6000 Data Collector

The SHC6000 field computer is designed for surveyors who need fast processing and connectivity in the field. It's fully customizable, so you can adjust it to fit exactly what you need and set up your way of working.

Key Features

Clear Viewing Anytime: Comes with a sunlight-readable 7-inch display, so you can see your data even under bright sunlight.

Powerful Processor: Equipped with an Intel Quad-Core Pentium N4200 Processor to handle all your tasks quickly and efficiently.

Tough and Reliable: It's MIL-STD 810G and IP68 certified, which means it's built to withstand tough outdoor conditions and is both dustproof and waterproof.

Modern Operating System: Runs on Windows 10, giving you a familiar and flexible platform for all your software needs.

High-Quality Cameras: Features an 8 MP rear camera and a 2 MP front camera, perfect for capturing detailed photos and videos in the field.

Stay Connected: Includes an optional integrated 4G LTE cellular module, so you can stay connected with your team and access the internet wherever you are.

Specifications

Processor

• Intel Quad-Core Pentium N4200 Processor

Operating System

• Windows 10 Pro

Memory

• 8GB LPDDR4 RAM

Display

• 7 in. LCD touch screen, Wide XGA at 1280 x 800

Camera

• Rear: 8MP with LED Illumination
• Front: 2MB

GNSS

• u-blox NEO M8M

Dust / Water Resistance

• IP68 certified

Operating Temperature

• -20°C to 50°C (-4°F to 122°F)

Military Standard

• MIL-STD-810G
  • Drop: 4 ft. (1.2 m)
  • Vibration
  • Humidity

Dimensions (L x W x H)

• 21.5 x 13.7 x 3.5 cm (5.39" x 8.46” x 1.38")

Operation Time

• Up to 15 hours (5 hours internal battery, 10 hours with swappable battery)

Wireless Connectivity

• Bluetooth: LongLink Bluetooth technology V5.0 Class 1.5, BLE support
• Wi-Fi: 802.11 a/b/g/n 2.4 GHz and 5 GHz
• Cellular (optional): Internal GSM 4G LTE

Ports

• USB 3.0: 1 x Type A
• Audio: 3.5mm
• Docking: Power
• Port: USB 2.0
• Connection: HDMI
