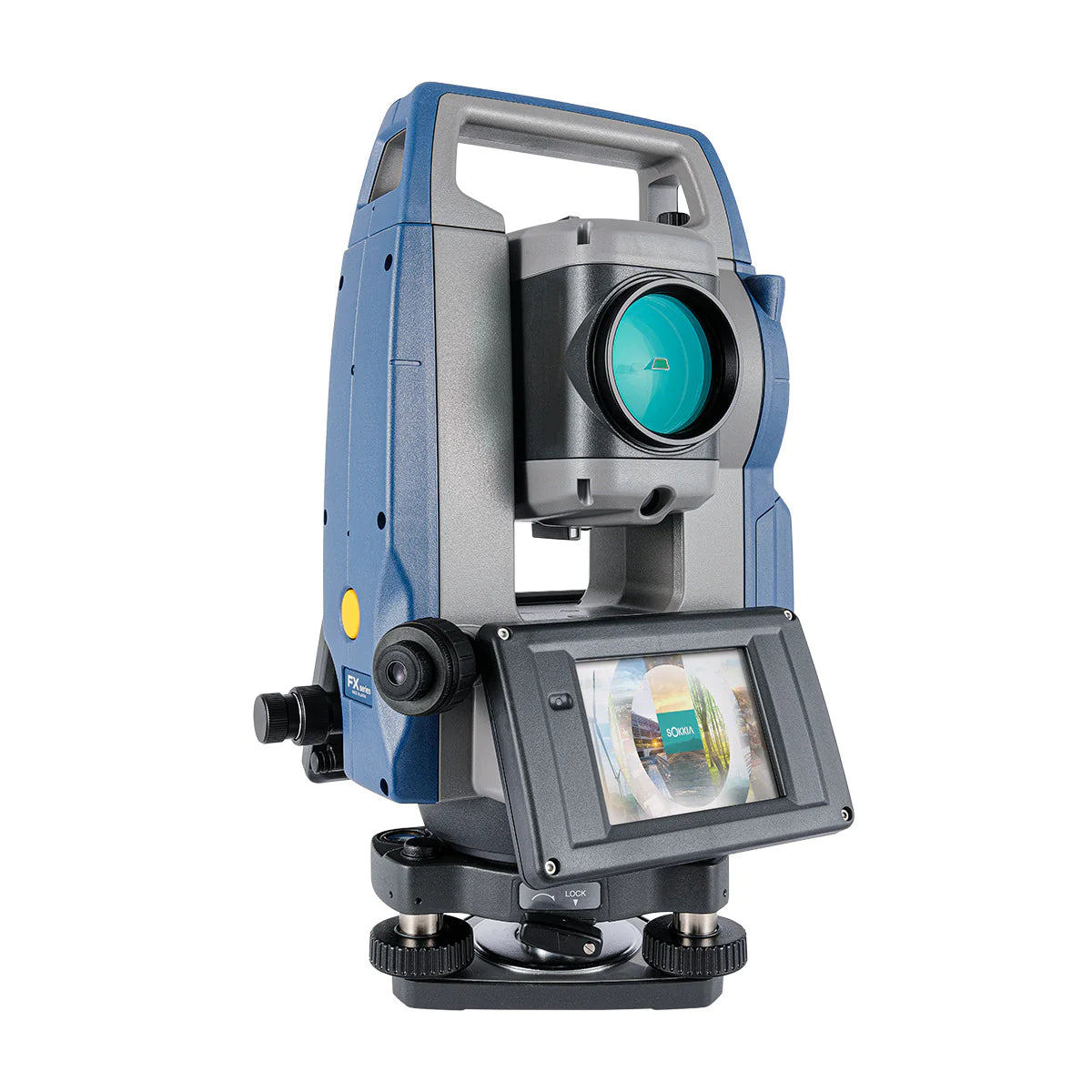

Sokkia FX Advanced Total Station

The Sokkia FX Advanced Total Station is a great tool for land surveyors, combining the power of a Windows operating system with the convenience of MAGNET Field, a cloud-based application software. This combination gives surveyors an advantage over the use of traditional tools when taking measurements and makes their data secure and easily accessible.

One of the key features of the FX Total Station is TSshield, a unique telematics-based module designed for remote security, tracking, and diagnostic support. This means you can keep your device safe, track its location, and even troubleshoot it from afar. With Long-Range Bluetooth® technology, transferring data to a Bluetooth-equipped controller is smooth and hassle-free, enhancing your workflow efficiency.

Key Features

Windows Operating System: Enjoy the reliability and flexibility of Windows in a compact, rugged package, perfect for the demands of fieldwork.

MAGNET or GeoPro Field Software: It comes standard with cutting-edge software for efficient fieldwork and data management.

Advanced Angle Measurement: Features the RED-Tech advanced reflectorless measurement system for precise angle readings.

Long-Range Bluetooth: Offers wireless communication over long distances, simplifying data transfer to controllers.

TSshield Security: Provides device security, tracking, and remote diagnostics, keeping your device safe and operational.

Specification

Angle Measurement

• 1", 3", 5"

Distance Measurement (Single Prism)

• 1.3 to 4,000m (4.3 to 13,120ft.) under good conditions.
  • Good conditions: No haze, visibility of about 40km (25 miles), overcast, no scintillation.

Distance Measurement (Reflectorless)

• 0.3 to 500m (1.0 to 1,640ft.) under good conditions.
  • Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.

Accuracy (Single Prism)

• (2 + 2ppm x D) mm

Accuracy (Reflectorless)

• (3 + 2ppm x D) mm
  • Measuring range: 0.3 to 200m

Measuring Time

• Fine: 0.9s (initial 1.7s)
• Rapid: 0.7s (initial 1.4s)
• Tracking: 0.3s (initial 1.4s)

Tilt Compensation

• Dual Axis, Compensation Range +/- 6'

Wireless Communication

• Bluetooth Class 1 - 300m (980ft)
  • No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain.

Operating System/Processor

• Microsoft Windows® CE 6.0 / MAGNET FIELD

Display

• 3.5in. / Transmissive TFT QVGA color LCD

Dust/Water Protection

• IP65

Operating Temperature

• -20 to +50ºC (-4 to +122ºF)

Size (single face model)

• W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)

Weight (battery & tribrach)

• Approx. 5.7kg (12.6 lb.)

Operating Time

• Approx. 20 hours (single distance measurement every 30 seconds)
