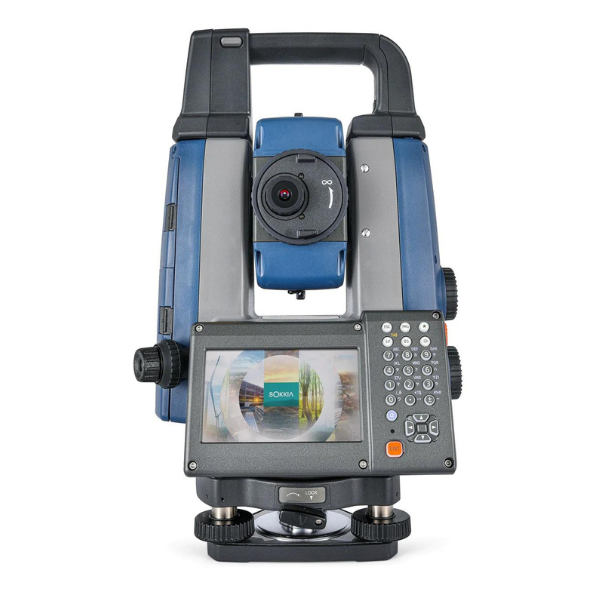

Sokkia iX 600 Series Robotic Total Station
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
One robotic platform sold at three accuracies, 2, 3 or 5 arc-seconds. Sokkia rates the iX-600 at 85 degrees per second, 600 m reflectorless, 4,000 m with a prism.
01
This single listing sells three instruments, and the accuracy you choose sets the price and the angle reading
One robotic platform, sold at three angle accuracies: the iX-602 at 2 arc-seconds, the iX-603 at 3, and the iX-605 at 5. An arc-second is a unit of angle, one 3,600th of a degree, and it is how precisely the instrument reads a horizontal or vertical angle. The figures on this page describe the iX-602, the tightest of the three, unless a row says otherwise. Minimum angle display follows the same split: the 602 reads to 0.5 or 1 arc-second, selectable; the 603 and 605 read to 1 or 5. If your survey work does not need angles that tight, the 603 or 605 runs the same robotic platform for less. Confirm which variant your quote names before you order.
02
The iX-600 turns at 85 degrees a second and tracks at 15, not the 150 and 20 printed for its bigger sibling
Sokkia sells the iX-600 alongside a faster relative, the iX-1200, and its own datasheet prints both series side by side. The iX-600 series turns at up to 85 degrees per second and auto-tracks a moving prism at up to 15 degrees per second. The iX-1200 reaches 150 and 20 on the same two figures. Auto-tracking means the instrument keeps its crosshairs on a moving prism without an operator steering it by hand. Sokkia states the iX-600 figures without any test condition attached beyond the instrument itself. LongLink, Sokkia's robotic Bluetooth link, carries communication up to 600 m with no obstacles, few vehicles nearby and no rain in the area. If you need the faster pair, that is the iX-1200, a different Sokkia model.
03
Reflectorless range reaches 600 meters and the prism range reaches 4,000, both the iX-600's own figures
Reflectorless, what Sokkia calls non-prism, means measuring distance off a bare surface with nothing to reflect the beam back. It is useful for a stockpile face or a wall a rodman cannot reach. The iX-600 measures reflectorless from 0.3 to 600 m. The iX-1200 sibling reaches 800 m under the same conditions. With a Prism-2 reflector attached, the iX-600 reaches 1.3 to 4,000 m, against the iX-1200's 1.3 to 6,000 m. A third figure, 800 m, belongs to neither range: it is UltraTrac's tracking range to a Prism-2 target. Sokkia measures it separately from the standard prism and reflectorless ranges above. Measuring time in Fine mode runs 1.5 seconds for the first shot, then every 0.9 seconds after.
04
Reflectorless accuracy runs 2 millimeters plus 2 parts per million out to 200 meters, in three published bands
Sokkia rates reflectorless distance accuracy in Fine mode at 2 mm + 2 ppm from 0.3 to 200 m. From 200 to 350 m it is 5 mm + 10 ppm, and from 350 to 1,000 m it is 10 mm + 10 ppm. Rapid mode runs 6, 8 and 15 mm across the same three bands. Parts per million means the figure grows with distance, added to the flat number as the shot gets longer. Sokkia tests this figure against a Kodak Gray Card white side, 90 percent reflectance, under 5,000 lux or less. A darker or more textured target changes both range and precision in the field. Sokkia does not split this figure by series, so it applies to every accuracy variant on this listing. Prism accuracy runs tighter, at 2 mm + 2 ppm Fine for the iX-600 against 1 mm + 2 ppm for the iX-1200.
05
Battery, charger, cable, and a carrying case with shoulder belt ship standard; the remote and the laser plummet do not
Sokkia's own operator manual marks the BDC72 battery, the CDC77 charger, an EDC113-series power cable, and a carrying case with shoulder belt as standard equipment. The same manual marks the RC-PR5A remote controller and the laser plummet as optional accessories, bought separately, alongside an interface cable and an AC/DC converter. One BDC72 charge runs the instrument about 4 hours at 20 degrees Celsius; an optional external BT-73Q battery extends that to roughly 6.5 hours. The instrument itself is IP65 rated, dust and water resistant. Sokkia rates the standard model to operate from -20 to +50 degrees Celsius.
06
Whether a field controller or a software license ships with the instrument is not something Sokkia states anywhere
Sokkia says the iX-600 works with Sokkia Field or third-party field software. That is a compatibility statement, not an inclusion statement. Nothing on Sokkia's product page, datasheet or manual says whether a handheld controller or a software license comes with the unit. On our own store and at two independent dealers, a compatible field controller such as the Sokkia SHC6000 is sold as its own line item. It runs several thousand dollars on its own, a strong signal it is bought separately, not a manufacturer statement that it is excluded. If your workflow needs a controller and you do not already own a compatible one, confirm it with us before you order.
07 FOR UNIVERSITIES, COLLEGES AND GOVERNMENT AGENCIES
Sokkia backs the instrument for 3 years, and we take purchase orders
Sokkia's instrument warranty runs 3 years. The ultrasonic motor that drives the robotic tracking carries its own 5-year warranty, stated identically for the iX-1200 and iX-600 lines. We accept purchase orders, and a W-9 and vendor pack come with every quote. This instrument ships direct from the manufacturer. Call +1 888 850 6533, Monday through Friday, 9 a.m. to 5 p.m. Mountain Time, to confirm your variant, your accessories, and exactly what ships with your order.
Checkout above. Financing available with Affirm.
Institutions only: universities, colleges and government agencies.
Attached automatically.
Send the certificate once, we hold it on file.
On request, for committee approval.
One person, from quote to delivery.
REFERENCE
Specifications
Angle measurement
| Accuracy (ISO 17123-3:2001) | iX-602: 2" (0.6 mgon). iX-603: 3" (1.0 mgon). iX-605: 5" (1.5 mgon) |
| Minimum angle display | iX-602: 0.5"/1", selectable. iX-603 and iX-605: 1"/5", selectable |
| Horizontal and vertical circle detection | Rotary absolute encoder, read on both sides |
| Tilt compensation | Liquid 2-axis tilt sensor, range of compensation Ā±6', minimum display 1", on/off selectable |
Distance measurement
| Signal source | Red laser diode, 690 nm, Class 3R |
| Prism-2 measuring range | 1.3 to 4,000 m for the iX-600 series (the iX-1200 series reaches 1.3 to 6,000 m under the same conditions) |
| Reflectorless (white) measuring range | 0.3 to 600 m for the iX-600 series (the iX-1200 series reaches 0.3 to 800 m) |
| 360Ā° prism (ATP1/ATP1S) measuring range | 1.3 to 1,000 m. Sokkia's datasheet does not split this figure by series |
| Prism/360Ā° prism distance accuracy | iX-600 series: Fine 2 mm + 2 ppm, Rapid 5 mm + 2 ppm. (iX-1200 series: Fine 1 mm + 2 ppm, Rapid 5 mm + 2 ppm) |
| Reflective sheet distance accuracy | Fine 2 mm + 2 ppm, Rapid 5 mm + 2 ppm. Sokkia's datasheet does not split this figure by series |
| Reflectorless distance accuracy | Fine: 2 mm + 2 ppm from 0.3 to 200 m, 5 mm + 10 ppm from 200 to 350 m, 10 mm + 10 ppm from 350 to 1,000 m. Rapid: 6 mm + 2 ppm, 8 mm + 10 ppm, 15 mm + 10 ppm across the same three bands. Measured against a Kodak Gray Card white side (90% reflectance) under 5,000 lx or less; actual range and precision change with target reflectivity, weather and site conditions |
| Measuring time | Fine: 1.5 sec initial, then every 0.9 sec. Rapid: 1.3 sec initial, then every 0.6 sec. Tracking: 1.3 sec initial, then every 0.4 sec |
Robotic and tracking
| Max turning (revolving) speed | 85Ā°/sec for the iX-600 series (the iX-1200 series turns at 150Ā°/sec) |
| Max auto-tracking speed | 15Ā°/sec for the iX-600 series (the iX-1200 series tracks at 20Ā°/sec) |
| UltraTrac tracking range, Prism-2 | 1.3 to 800 m for the iX-600 series (the iX-1200 series reaches 1.3 to 1,000 m) |
| UltraTrac tracking range, 360Ā° prism (ATP1) | 2 to 600 m. Sokkia's datasheet does not split this figure by series |
| Auto Pointing accuracy | 1.2 mm or better standing still at 100 m or less. 0.3 mm + 9 ppm standing still beyond 100 m |
| Guide light | LED, red 626 nm and green 524 nm, visible from 1.3 to 150 m, Ā±4Ā° visible angle |
| Long-range robotic communication | LongLink Bluetooth, up to 600 m with no obstacles, few vehicles and no rain in the vicinity while in communication |
Software and data management
| Field software compatibility | Sokkia states the instrument works with Sokkia Field or third-party field software. No Sokkia-published surface, and neither of our two dealers, states whether a field-software license ships with the instrument or is purchased or subscribed separately |
| Internal storage | 1 GB, including space for program files |
| External storage | USB flash memory, up to 32 GB |
| Wired interface | RS-232C compatible; USB Revision 2.0, Host Type A and Client Type miniB |
| LongLink Bluetooth wireless | FHSS transmission, GFSK modulation, 2.402 to 2.48 GHz, SPP and DUN profiles, Power Class 1, selectable authentication |
| Wi-Fi | IEEE 802.11 b/g/n, infrastructure or ad hoc mode, 2,412 to 2,472 MHz (channels 1 to 11), 10 m communication distance |
| Operating system and display | Windows Embedded Compact 7. 4.3-inch transmissive TFT WVGA color touchscreen, LED backlight with 9 brightness levels, resistive analog touch panel |
Physical and environmental
| Ingress protection | IP65 (IEC 60529:2001), dust and water resistant |
| Operating temperature | -20 to +50 degrees C, standard models, no condensation |
| Storage temperature | -30 to +60 degrees C, no condensation |
| Dimensions with handle | 212 (W) x 172 (D) x 355 (H) mm |
| Weight with handle and battery | Approximately 5.8 kg. One independent dealer's own specification data states 5.7 kg for the same SKU; Sokkia's own datasheet figure is used here |
| Instrument height | 192 mm from the tribrach mounting surface |
Power
| Battery | BDC72, Li-ion, 7.2 V nominal, 5,986 mAh. Marked a standard accessory in Sokkia's own operator manual |
| Operating time at 20 degrees C | Approximately 4 hours on the BDC72; approximately 6.5 hours with the optional external BT-73Q battery |
| Charger | CDC77, AC 100 to 240 V, approximately 8 hours to charge two batteries. Marked a standard accessory in Sokkia's own operator manual |
| Power cable | EDC113-series. Marked a standard accessory in Sokkia's own operator manual |
| Interface cable and AC/DC converter | Listed in the same manual table without the asterisk Sokkia uses to mark standard accessories, meaning both are optional |
Warranty
| Instrument warranty | 3 years |
| UltraSonic motor warranty | 5 years, stated identically for both the iX-1200 and iX-600 series |
Delivery scope
| What Sokkia's own sources confirm is standard | Sokkia's own operator manual marks the BDC72 battery, the CDC77 charger and an EDC113-series power cable as standard accessories in its Power Supply System chapter, and separately marks a carrying case and shoulder belt as standard equipment in its Accessories chapter |
| What Sokkia's own sources confirm is optional, not standard | The same manual explicitly marks the RC-PR5A remote controller and the laser plummet as optional accessories, and marks the interface cable and AC/DC converter as optional rather than standard |
| Handheld field controller / data collector | Not confirmed as included by any source. Sold as a separate product line on our own store, on one independent dealer's site (a distinct navigation category), and explicitly as a separate priced accessory on a second independent dealer's site |
| Field-software license | Sokkia states the instrument is compatible with Sokkia Field and third-party field software without stating whether a license ships with the unit. Not confirmed as included or excluded on Sokkia's product page, datasheet or manual, or by either independent dealer checked |
| Full itemized box contents | Sokkia's own product page, datasheet and operator manual publish no complete itemized in-the-box list for this SKU, and neither independent dealer checked publishes one either |
Ordering
| Dealer status | Purchase orders accepted; W-9 and vendor pack provided with every quote |
| Shipping | Shipped direct from the manufacturer |
| Speak to us | +1 888 850 6533, Monday to Friday, 9 a.m. to 5 p.m. Mountain Time |
