DJI Zenmuse P1 Payload
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
A 45 MP full frame camera behind a global mechanical shutter, on a 3-axis gimbal. DJI names three Matrice aircraft, and the DL 35mm lens is the one in the box.
01
DJI names three aircraft for the P1, and Matrice 400 support arrived in a P1 firmware update
DJI's specification page names the Matrice 400, the Matrice 350 RTK and the Matrice 300 RTK. Matrice 400 support arrived with P1 firmware v10.01.02.01, released on 10 June 2025. A payload on older firmware needs updating first. The P1 mounts on the single downward gimbal connector on all three aircraft. On the Matrice 400 it can also take either port of the dual downward connector. DJI states mapping accuracy is reduced if a second payload sits there at the same time. DJI's release notes list the DJI RC Plus with the Matrice 350 RTK. With the Matrice 300 RTK they list either the DJI RC Plus or the DJI Smart Controller Enterprise. DJI names no other aircraft on its specification page, its FAQ, its user manual or its quick start guide.
02
The 35 mm lens is in the box, the 24 mm and the 50 mm are not
DJI's quick start guide lists five items in the box. The gimbal and camera including an SD card, a storage case, a camera body cap, a lens rear cap, and a lens cleaning cloth. DJI's user manual and quick start guide both state the DJI DL 35mm F2.8 LS ASPH lens is included. Both state that the 24 mm and the 50 mm are bought separately. The P1 takes a full size SD card rather than a microSD, rated UHS-I or above, to a maximum of 512 GB. DJI names no capacity and no brand for the card in the box, on its product page, specification page, FAQ, user manual or quick start guide.
03
3 cm and 5 cm without ground control, at one ground sample distance and one flight speed
DJI publishes absolute accuracy of 3 cm horizontal and 5 cm vertical, and its product page states that is achieved without ground control points. Those are the surveyed markers a crew otherwise lays out before a flight. DJI's specification table prints the condition underneath: a Mapping Mission flown at a 3 cm ground sample distance and a flight speed of 15 m/s. Front overlap 75 percent, side overlap 55 percent. Ground sample distance is the ground each pixel covers. Change any of those settings and the figure changes. DJI states the P1 captures data meeting 1:500 scale accuracy requirements without ground control points.
04
3 km² in a flight and 7.5 km² in a working day are two different flights
DJI puts single flight coverage at 3 km², at a 3 cm ground sample distance with 75 percent front overlap and 55 percent side overlap. The 7.5 km² workday figure is measured on different settings. It uses Smart Oblique Capture at a 3 cm ground sample distance with 80 percent front overlap and 60 percent side overlap. DJI also states Smart Oblique Capture increases the efficiency of post-processing by 20 percent to 50 percent. Its reference cases are 1.5 km² at 200 m altitude for the 20 percent, and 0.5 km² at the same altitude for the 50 percent.
05
Smart Oblique Capture takes both image sets in one pass, and two DJI documents disagree on which aircraft runs it
The gimbal rotates during a single flight path, so ortho and oblique photos are gathered in one pass. DJI describes five angles covering the survey area and its edge. It does not always run to five. DJI states the sequence depends on the measurement area size, the flight altitude and the camera's tilt angle, so four, three or one angle can be flown. DJI states terrain following and corridor mapping flight do not support Smart Oblique Capture. DJI's FAQ states the function is currently supported only with the P1 mounted on the Matrice 300 RTK. DJI's user manual v1.4 documents Smart Oblique without restricting it to one aircraft. Ask us and a specialist will put that question to DJI against your drone.
One flight path, both image sets
DJI's own tutorial for the feature that gathers ortho and oblique photos in a single pass.
06
A full frame sensor behind a global mechanical shutter, and two DJI lens tables that disagree
The sensor measures 35.9 by 24 mm, 45 MP effective, with a 4.4 micron pixel and 8192 by 5460 stills. DJI achieves the global mechanical shutter with a central leaf shutter, running 1/2000 s to 1 s at an aperture no larger than f/5.6. Three lenses are supported, the DJI DL 24mm, 35mm and 50mm F2.8 LS ASPH. DJI's specification page gives their fields of view as 84°, 63.5° and 46.8°. A second table inside DJI's user manual gives 82.440°, 63.000° and 46.200° for the same lenses. DJI does not state which measure is which.
07 FOR UNIVERSITIES, COLLEGES AND GOVERNMENT AGENCIES
Who should not buy this, and DJI's own cautions before the first flight
Fly an aircraft DJI does not name for the P1 and this is the wrong payload. If your specification depends on the fieldwork report, DJI's own footnote against that feature reads support coming soon. DJI's documents also disagree about filters. The user manual gives a procedure for fitting a filter or protector. The quick start guide states no other component such as a filter or lens hood should be added to the camera. DJI states the SD card slot cover must be closed properly before takeoff, or it can obstruct the gimbal arm and overload the motor. Shipped direct from the manufacturer. Call +1 888 850 6533, Monday to Friday, 9 am to 5 pm Mountain Time. A specialist will confirm aircraft fit and which lens you need.
Checkout above. Financing available with Affirm.
Institutions only: universities, colleges and government agencies.
Attached automatically.
Send the certificate once, we hold it on file.
On request, for committee approval.
One person, from quote to delivery.

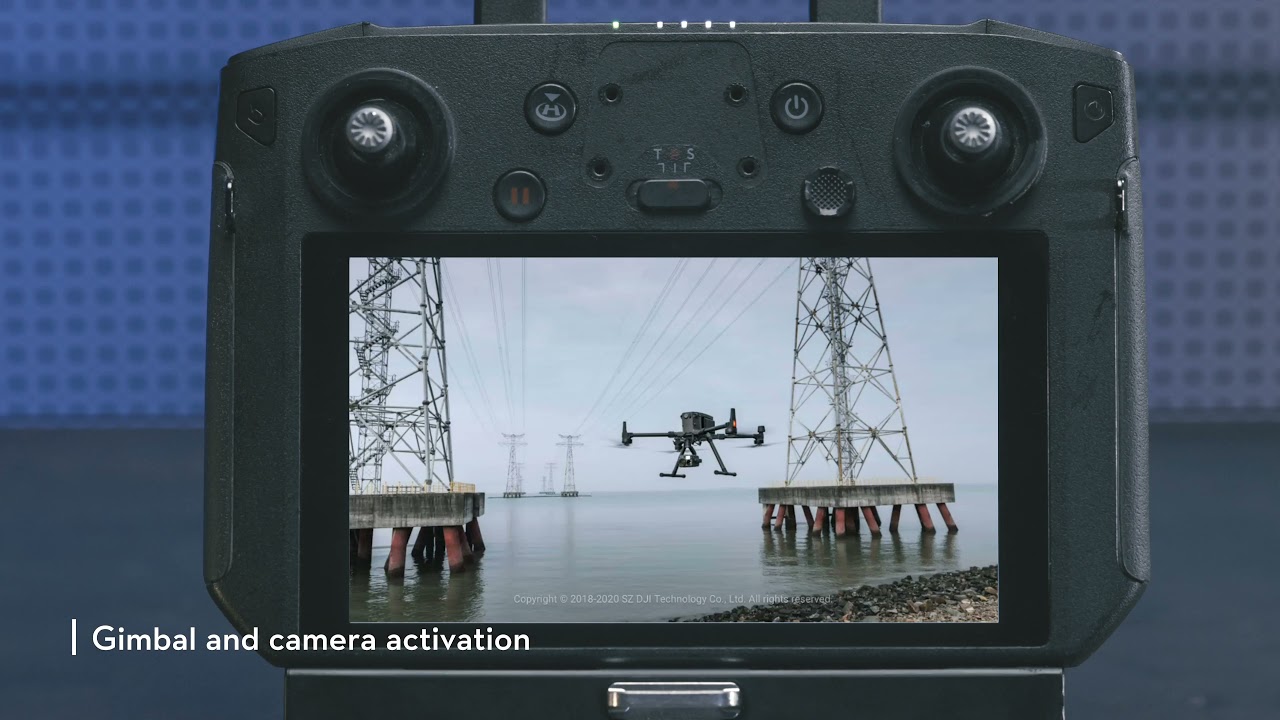

Fitting the lens, mounting the gimbal
DJI's own walkthrough of installing the payload and activating it before the first flight.
REFERENCE
Specifications
Which aircraft this payload fits
| Supported aircraft | DJI Matrice 400, DJI Matrice 350 RTK, and DJI Matrice 300 RTKMatrice 400 support arrived with Zenmuse P1 firmware v10.01.02.01, released by DJI on 10 June 2025. DJI's Zenmuse P1 user manual v1.4, dated May 2023, predates that release and lists only the Matrice 300 RTK and Matrice 350 RTK |
| Which gimbal port it mounts on | On the Matrice 350 RTK and the Matrice 300 RTK, DJI states the P1 mounts only on the single downward gimbal connector. On the Matrice 400 it mounts on the single downward gimbal connector or on either port of the dual downward gimbal connectorDJI states that if a second payload is mounted at the same time on the dual gimbal connector, the mapping accuracy of the P1 is reduced |
| Mount | Detachable DJI SkyPort |
| Remote controller | DJI's release notes for the current P1 firmware list the DJI RC Plus with the Matrice 350 RTK, and either the DJI RC Plus or the DJI Smart Controller Enterprise with the Matrice 300 RTK |
| App | DJI Pilot 2, the app version DJI's release notes pair with the current P1 firmwareDJI's FAQ separately states that DJI Pilot is currently the only app control supported when the P1 is flown on the Matrice 300 RTK |
| Firmware before first flight | DJI states the aircraft firmware, the remote controller firmware, the P1 firmware and the DJI Pilot app must all be on the latest version, and that after updating to v10.01.02.01 the P1 cannot be downgraded to v03.00.01.04 or earlier |
Accuracy and coverage
| Absolute accuracy | 3 cm / 5 cm, horizontal and vertical. DJI's product page states the figure is achieved without ground control pointsDJI's own condition, printed under its specification table: a Mapping Mission flown at a 3 cm ground sample distance and a flight speed of 15 m/s, with a 75 percent front overlap rate and a 55 percent side overlap rate |
| Area per flight | 3 km² in a single flightDJI's own condition: a 3 cm ground sample distance with a 75 percent front overlap rate and a 55 percent side overlap rate |
| Area per working day | 7.5 km² in a single workday, using Smart Oblique CaptureDJI's own condition: a 3 cm ground sample distance with an 80 percent front overlap rate and a 60 percent side overlap rate |
| Ground sample distance by lens | DJI publishes the relationship as GSD = H / 55 with the 24 mm lens, H / 80 with the 35 mm, and H / 114 with the 50 mm, where GSD is in centimeters per pixel and H is the distance to the target in meters |
| Post-processing efficiency | DJI states Smart Oblique Capture increases the efficiency of post-processing by 20 percent to 50 percentDJI's own two reference cases: 20 percent over a 1.5 km² area mapped at 200 m flight altitude, and 50 percent over a 0.5 km² area at the same altitude |
| Scale DJI claims for the output | DJI states the P1 captures data meeting 1:500 scale accuracy requirements without ground control points |
Camera and sensor
| Sensor | 35.9×24 mm full frame for stills, 34×19 mm maximum video recording area. Effective pixels 45 MP. Pixel size 4.4 μm |
| Photo size | 3:2, 8192×5460 |
| Minimum photo interval | 0.7 sDJI's figure for the shortest continuous shooting interval the camera holds in flight |
| Photo and video formats | Photos in JPEG, DNG, or JPEG plus DNG. Video in MP4 or MOV |
| ISO range | 100 to 25600, for stills and video alike |
| Aperture range | f/2.8 to f/16 |
| Focus | DJI states zooming is not supported. In Route mode, initial waypoint auto focus and calibrated infinity focus can be used; in Manual mode, focus is set by hand |
| Low-noise high-sensitivity mode | DJI describes a mode that raises camera sensitivity while holding noise down, which DJI says widens the range of scenarios the P1 can work in |
| Operation modes | Photo, Video, Playback |
Shutter
| Shutter type | Global mechanical shutterDJI states the global shutter is achieved with a central leaf shutter |
| Mechanical shutter speed | 1/2000 s to 1 sDJI's condition: an aperture value no larger than f/5.6. DJI's user manual adds that the camera switches automatically to the electronic shutter when the shutter speed is larger than 1/10 s |
| Electronic shutter speed | 1/8000 s to 1 s |
| DJI's recommended setting | DJI recommends setting the shutter speed faster than 1/500 s, and recommends the M plus Auto ISO camera mode, where the operator sets shutter speed and aperture and ISO follows the light |
| Exposure timing | DJI's product page states the P1 sends the median exposure pulse in microseconds. DJI's FAQ adds that TimeSync 2.0 outputs the exposure time interval in microseconds, in an answer written about the P1 flown on the Matrice 300 RTK |
Lenses
| Which lens ships with the payload | DJI's user manual and its quick start guide both state that the DJI DL 35mm F2.8 LS ASPH lens is included with the Zenmuse P1, and both direct buyers to a dealer to purchase the 24 mm and the 50 mm lenses separately |
| Supported lenses | DJI DL 24mm F2.8 LS ASPH, DJI DL 35mm F2.8 LS ASPH, and DJI DL 50mm F2.8 LS ASPH, each with lens hood and balancing ring or filter. Fields of view 84°, 63.5° and 46.8° respectivelyDJI's user manual carries a second lens table giving different figures for the same three lenses, 82.440° for the 24 mm, 63.000° for the 35 mm and 46.200° for the 50 mm, each with a horizontal and vertical component listed alongside. The two DJI tables do not agree |
| Lens mount | DJI DL-Mount, 58 mm diameter |
| Aperture and close focus | All three lenses run f/2.8 to f/16. Close focus is 0.65 m on the 24 mm, 0.85 m on the 35 mm, and 0.93 m on the 50 mm |
| Lens weight and barrel | Approximately 178 g for the 24 mm, 180 g for the 35 mm and 182 g for the 50 mm. Every barrel measures 55.0 mm in diameter by 71.2 mm long, lens hood included |
| Filter diameter | 46 mm on all three lenses |
| Fitting filters | DJI's user manual gives a procedure for removing the lens hood and balancing ring to fit a filter or protector, and states the lens hood should not be mounted when two lens filters are attached, noting that the amount of lens flare will increase without the lens hoodDJI's quick start guide states the opposite in general terms, that no other component or device such as a filter or lens hood should be added to the camera. The two DJI documents do not agree |
| Third-party lenses | DJI states only supported lenses should be used, and that surveying and mapping accuracy may be affected otherwise |
Mission modes and Smart Oblique Capture
| Surveying scenarios DJI names | DJI's FAQ names 2D orthomosaic, 3D oblique, detailed modeling and real-time mapping. DJI's product page presents three mission modes for the same job, 2D Orthomosaic, 3D Oblique and Detailed Modeling |
| Operating modes | DJI's FAQ lists aerial photography including Smart Oblique Capture, oblique photography, corridor mapping flight, waypoint flight, and manual operation, in an answer written about the P1 flown on the Matrice 300 RTKDJI's user manual v1.4 names the same work differently, as Mapping, Oblique, Linear Flight and Waypoint missions, with Smart Oblique and Terrain Follow enabled inside a Mapping mission. DJI does not state how one set of names maps onto the other |
| How Smart Oblique Capture works | DJI states the gimbal rotates during a single flight path so ortho and oblique photos for 3D reconstruction are gathered in one pass, at five different angles covering the survey area and its edge, with flight speed varied per flight path sectionDJI states the sequence does not always run to five angles. Only photos essential to reconstruction are taken at the edge of the flight area, and DJI states the sequence executed depends on the size of the measurement area, the flight altitude and the camera's tilt angle, so four angles, three angles or one angle can be flown instead |
| Smart Oblique Capture tilt range | -45° to -90° |
| Which aircraft Smart Oblique Capture runs on | DJI's FAQ states the function is currently supported only with the P1 mounted on the Matrice 300 RTK. DJI's user manual v1.4, the version that added Matrice 350 RTK support, documents Smart Oblique in its flight mission section without restricting it to one aircraftThe two DJI documents do not agree. Call +1 888 850 6533 and a specialist will put the question to DJI against the drone you fly before you order |
| Photos at turning points | DJI states no photos are taken at turning points, because a buffer zone keeps every image at an accurate tilt angle, and that only photos essential to reconstruction are taken at the edge of the flight area |
| Terrain following | DJI states the terrain-following flight path function is supported in aerial photography mode, and is not supported in oblique photography, corridor mapping flight or Smart Oblique Capture |
| Corridor mapping and Smart Oblique Capture together | DJI states the corridor mapping flight mode does not support Smart Oblique Capture |
| Fieldwork report | DJI describes a post-flight check covering position data, the number of images acquired, RTK status and positioning accuracyDJI's own footnote against this feature on its product page reads: support coming soon |
Positioning and data
| TimeSync 2.0 | DJI states TimeSync 2.0 synchronizes the camera, the gimbal, the flight control system and RTK, and writes the precise exit pupil position of the camera into each photo based on the position and orientation of the drone and the gimbalDJI's FAQ gives this in an answer written about the P1 flown on the Matrice 300 RTK. DJI's product page states the microsecond-level synchronization of the camera, flight controller, RTK module and gimbal without naming an aircraft |
| Position recorded in a photo | DJI states the position written into a P1 photo is the exit pupil position at the center of the camera lens |
| PPK post-processing | DJI states the task folder holds the photos, the original GNSS observations and the TimeStamps.MRK file used for PPK post-processing calculationsDJI's FAQ gives this in an answer written about the P1 flown on the Matrice 300 RTK. DJI's product page states the same centralized storage location for photos, GNSS data and TimeStamps.MRK files without naming an aircraft |
| Files written to the card | Photo, raw GNSS observation data, and image log file |
| What the image metadata carries | DJI's user manual documents an XMP field list covering RTK status, standard deviation in longitude, latitude and elevation, RTK correction age, gimbal and drone attitude, dewarp parameters, camera and lens serial numbers, and a SurveyingMode flag marking whether a photo is suitable for a mapping job |
| RTK status values | DJI's own key for the RtkFlag field: 0 failed to position, 16 single point positioning at meter-level accuracy, 34 floating point solution at decimeter level, 50 fixed solution at centimeter level |
| Mission file organization | DJI states mission result files are associated automatically with the mission name and the mission time, and that photos, GNSS data and TimeStamps.MRK files sit in one storage location |
| Processing software | DJI states the P1 is designed to be used with DJI Terra for photogrammetry flight missions |
Video
| Video resolution | 16:9 at 1920×1080, and 16:9 at 3840×2160DJI states 3840×2160 is supported on the 35 mm lens only |
| Frame rate | 60 fps |
| Video format | MP4 and MOV |
Gimbal
| Stabilized system | 3-axis, tilt, roll and pan |
| Angular vibration range | ±0.01° |
| Mechanical range | Tilt -130° to +40°, roll -55° to +55°, pan ±320° |
Storage card
| Cards supported | SD cards rated UHS-I or above, to a maximum capacity of 512 GBThe P1 takes a full-size SD card, not a microSD card |
| Cards DJI recommends | DJI's user manual lists specific recommended cards from Lexar, SanDisk, Samsung and Sony, in 128 GB, 256 GB and 512 GB capacities |
Size, power and environment
| Dimensions | 198×166×129 mm |
| Weight | Approximately 800 gDJI publishes this as an approximate figure, without a tolerance |
| Power | 20 W |
| Ingress protection | IP4XDJI states the rating is achieved under stable laboratory conditions to IEC 60529, that it is not permanent, and that it may reduce over an extended period |
| Operating temperature | -20° to 50° C (-4° to 122° F) |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
Handling, DJI's own cautions
| Storing it between jobs | DJI states the P1 should be kept in its storage case when not in use, with the desiccant packet replaced as needed to stop the lenses fogging, and stored below 40 percent relative humidity at 20 ±5° C. DJI adds that if the lenses do fog, the water vapor usually clears after the device has been powered on for a while |
| Powering on and off | DJI states not to power the product on and off repeatedly, and to wait at least 30 seconds after powering off before powering back on, or product life is affected |
| Handling the lens | DJI states not to press the lens release button while attaching a lens, not to plug or unplug a lens after powering on, not to repeatedly disassemble and assemble the lens, and to mount the lens with the mount facing downward so dust does not enter the sensor |
| Fitting and removing the payload | DJI states not to plug or unplug the P1 after powering on, to power the drone off before removing it, and to detach the gimbal during transportation or storage so the damper balls are not shortened in life or damaged |
| Before takeoff | DJI states the SD card slot cover must be closed properly, or it can obstruct the gimbal arm from moving and overload the motor. DJI also states to take off from flat, open ground and not to block or touch the gimbal after powering on |
| Modification | DJI states the P1 is calibrated for its designated camera and lens before it leaves the factory, that no physical or mechanical modification of the gimbal is required or recommended, and that the gimbal and camera should not be disassembled because that causes permanent damage |
| Cleaning | DJI states the lens surface should be cleaned with a soft, dry, clean cloth, and that alkaline detergents should not be used |
| Moisture | DJI states there must be no liquid on the surface of the gimbal or in its port, and that the gimbal surface must be dry before the SD card slot cover is opened |
Ordering
| The drone this payload flies on | The DJI Matrice 400 is carried as its own listing on this store |
| Speak to us | Call +1 888 850 6533, Monday to Friday, 9 am to 5 pm Mountain Time, and a specialist will confirm aircraft fit, firmware version and which lens you need before you order |
