Gepard GPR 3D Ground Penetrating Radar System

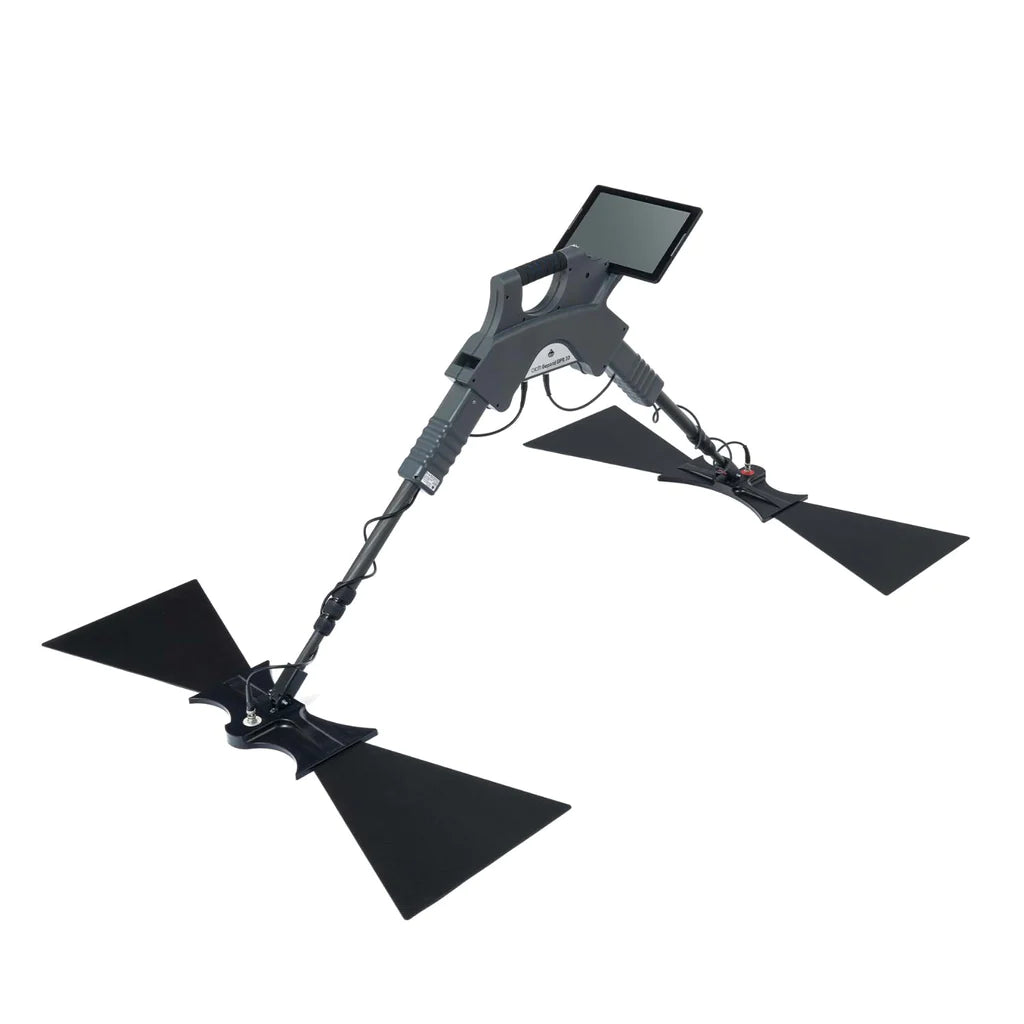

The Gepard GPR is a flexible and powerful ground penetrating radar system using an omnidirectional unshielded transmission system to reach maximum depths of up to 40 meters (132 ft). This agile and compact unit can easily be operated by a single user via Android Tablet PC, making it ideal for professional detection applications.
Who Uses the Gepard GPR?
- Archaeologists and historical researchers
- Geotechnical engineers and surveyors
- Treasure hunters and relic recovery specialists
- Utility locating professionals
- Construction and infrastructure inspection teams
Use Cases
- Archaeology: Locate ancient structures, burial sites, and historical artifacts without excavation.
- Geotechnical Engineering: Survey land for construction projects and assess subsurface conditions.
- Treasure Hunting: Discover buried caches, statues, chests, and valuable items.
- Utility Detection: Identify and map underground pipelines, cables, and conduits.
- Cavity Detection: Locate tunnels, bunkers, shelters, and natural voids underground.
- Water Detection: Map underground water levels, rivers, and aquifers.
- Infrastructure Assessment: Detect foundations, reinforcements, and structural elements.
Key Features
Operating Modes
- Ground Scan: Comprehensive subsurface scanning with detailed data collection.
- Live Stream: Real-time data streaming for immediate feedback during surveys.
What's in the Box
- 1× Control Unit
- 1× Android Tablet
- 2× Telescopic Shaft
- 1× Waterproof and Shock-resistant Pelican Case
- 1× Bluetooth Headphones with Charging Cable
- 1× Charger with Charging Cable
- 1× USB Flash Drive with OKM Visualizer 3D Studio Professional Edition
- 1× Travel Adapter
- 1× Sending Antenna for Gepard GPR 3D
- 1× Receiving Antenna for Gepard GPR 3D
- 1× User's Manual
The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.
Technical Specifications
Key Specifications
| Max Depth Performance | 132 ft (40 m) |
| Transmission Frequency | 60 - 300 MHz |
| Operating Time | Approx. 4 hours |
| Data Transmission | WiFi, 2.4 GHz |
| Operating Temperature | -20°C to 55°C |
| Protection Type | IP20 |
Components & Dimensions
| Control Unit Dimensions | 450 × 260 × 130 mm |
| Control Unit Weight | 1.6 kg |
| Telescopic Shaft Dimensions | 590-1630 × 70 × 60 mm |
| Telescopic Shaft Weight | 0.80 kg |
| Triangular Antenna Dimensions | 1010 × 330 × 50 mm |
| Triangular Antenna Weight | 1.50 kg |
*All technical data are average values. Minor deviations may occur during operation.
Full Technical Specifications
Control Unit
| Dimensions (H × W × D) | 450 × 260 × 130 mm |
| Weight | 1.6 kg |
| Display | Android Tablet PC |
| Operating Time | Approx. 4 hours |
| Charging Time | Approx. 3 hours |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -30°C to 60°C |
| Protection Type | IP20 |
| Data Transmission | WiFi, 2.4 GHz |
Antenna System
| Type | Omnidirectional unshielded transmission system |
| Transmission Frequency | 60 - 300 MHz |
| Max Depth Performance | Up to 40 m (132 ft) |
| Sending Antenna Dimensions | 1010 × 330 × 50 mm |
| Receiving Antenna Dimensions | 1010 × 330 × 50 mm |
| Antenna Weight | 1.50 kg each |
Telescopic Shaft
| Dimensions (Extended) | 1630 × 70 × 60 mm |
| Dimensions (Collapsed) | 590 × 70 × 60 mm |
| Weight | 0.80 kg |
| Material | Aluminum alloy |
The technical data are average values. Minor deviations are possible during operation.
