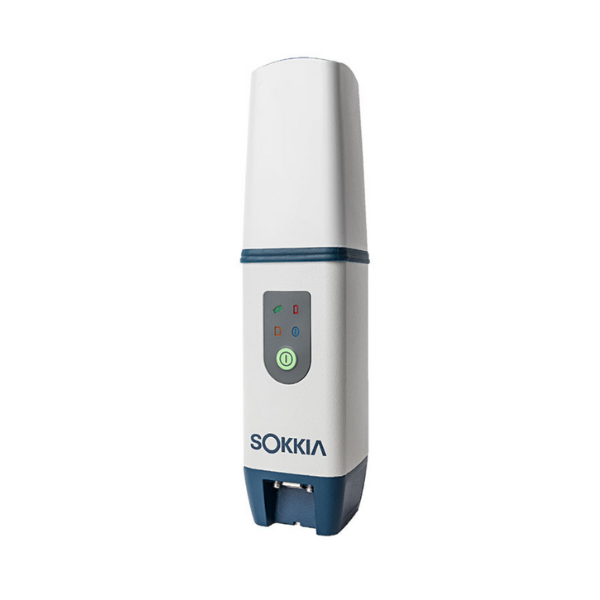

Sokkia GCX3 GNSS Receiver

The Sokkia GCX3 GNSS Receiver offers professional performance, delivering centimeter-level accuracy, and reliable measurements. Its versatility and ease of use make it the ideal base/rover RTK (Real Time Kinematic) system or network RTK rover for surveying equipment. With 226 optimized satellite tracking channels, this compact RTK GPS receiver offers comprehensive coverage and robust signal acquisition, even in areas with interference. Its portable and cable-free design is perfect for fieldwork, allowing surveyors to work with greater freedom and efficiency. With wireless connectivity and multi-channel long-range Bluetooth technology, the GCX3 is well-suited for network RTK applications, making it a useful tool for surveying tasks.

Specifications

Number of Channels

• 226 channels

Tracked Signals

• GPS: L1 C/A, L1C, L2P, L2C
• GLONASS: L1 C/A, L1P, L2 C/A, L2P
• BeiDou: B1, B2
• Galileo: E1
• SBAS: L1 C/A WAAS/MSAS/EGNOS/GAGAN
• QZSS: L1 C/A, L1C, L2C

Static/Fast Static Accuracy

• Horizontal (H): 10mm + 0.8 ppm
• Vertical (V): 15 mm + 1.0 ppm

Memory

• Internal non-removable memory up to 8 GB

Bluetooth® Modem

• v2.1 + EDR

Dust/Water Protection

• IP67

Dimensions (w x h x l)

• 47 x 197 x 47 mm (1.9” x 7.3” x 1.9”)

Battery Type

• Internal non-removable

Operating Time

• All day operation in any configuration (up to 10 hours)

External Power Connector

• Service port (shared with USB 2.0 communication)
