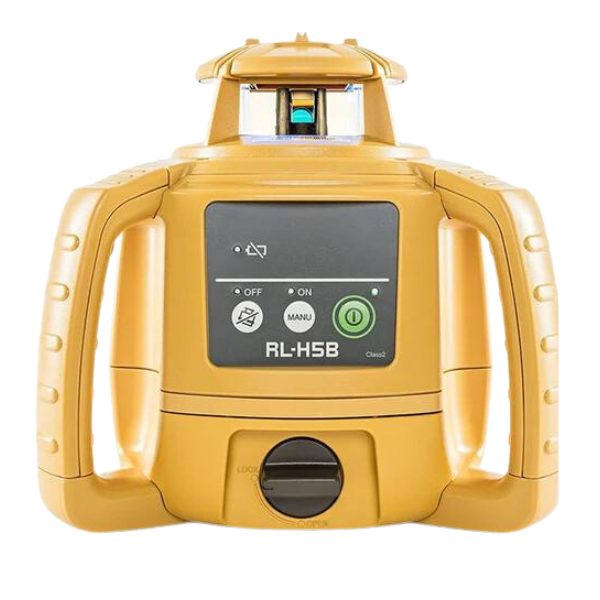

Topcon RL-H5B Horizontal Self-Leveling Rotary Laser with LS-80X Receiver

The Topcon RL-H5B Horizontal Self-Leveling Rotary Laser is a tool for construction professionals, improving accuracy for tasks such as excavation and grading. When used with the LS-80X laser receiver, this rotary laser can operate at distances of up to 1,312 feet with an impressive accuracy of ±1/8" at 100 feet. It can also self-level horizontally within ±5 degrees.

Powered by a Class 2 visible red laser, the Topcon RL-H5B is suitable for both indoor and outdoor use. With a simple one-button operation, site engineers can easily utilize this laser level, which can rotate up to 600 times per minute. The device also includes an out-of-level notification feature that will automatically re-level the laser if it is disturbed. The LS-80X laser receiver included in this package boasts a dual LCD display, two on-grade precision settings, a two-inch beam detection width, and nine-channel grade indicators with high/low out-of-range alert.

Key features

Long-Range Operation: Achieves an impressive reach of up to 400 meters, for coverage for large-scale projects.

Smart Long-Range Receiver: The LS-80X enhances detection capabilities, making it easier to capture the laser beam over long distances.

Rotation Speed: Operates at 600 rotations per minute, providing rapid and accurate leveling across the job site.

Precision Accuracy: Offers ±20 arc second horizontal accuracy, ensuring precise measurements for critical tasks.

Self-Leveling Range: Features a ±5 degree self-leveling range, facilitating quick setup and adjustments.

Resilient Operating Conditions: Withstands a wide temperature range from -20ºC to 50ºC, providing reliable performance in various environmental conditions.

Extended Battery Life: Powers through up to 100 hours of operation on 4 Alkaline D-cell batteries, minimizing downtime on the job.

IP66 Rating: Built to resist dust, sudden showers, and even torrential rainfall, ensuring durability and uninterrupted operation.

Topcon RL-H5B Laser Level: The core component, offering leveling capabilities.

Topcon LS-80X Laser Detector: enhances the laser level's range and accuracy, essential for long-distance measurements.

Sensor Holder: Provides stable and secure mounting for the LS-80X detector.

Carry Case: Offers convenient storage and transport, protecting the laser level and accessories from damage.

Specifications

Accuracy

• Horizontal: ±1/8 inch at 100 feet

Applications

• Concrete Forms, Footings, and Foundations: Yes
• Checking Building Square & Area: No
• Checking Elevations of Sub-Base and Sub-Grade: No
• Checking/Setting Elevations: No
• Estimating Cut & Fill: No
• Installation of Interior Fittings: Yes
• Installation/Leveling Ceiling Grids: No
• Installation/Leveling Interior Walls: Yes
• Locating Finished Floor Levels: No
• Machine Control of Excavators, Graders, Dozers: Yes
• Matching Existing Slope & Grade: No
• Plumb Reference: No
• Short-Range Leveling for Decks, Patios & Swimming Pools: No
• Short-Run Vertical Alignment: No
• Squaring and Layout of Partitions, Walls & Tile Floors: No
• Transferring Points from Floor to Ceiling: No

Battery/Power

• Battery Life Alert: Yes
• Battery Life with Alkaline Batteries: Up to 100 hours
• Power Source: D-cell alkaline

Extra Technology

• Detector/Receiver: LS-80L

Features

• Adjustable Rotating Speed: 600 RPM only
• Bump Sensor (H.I./Out of Position Alert): Yes
• Dual Handles: Yes
• Protection Class: IP66 dustproof and powerful water jet resistant
• Tripod Adapter (Center Screw Thread): 5/8 x 11

Functions

• Automatic Leveling: Yes
• Beam Operating Modes: No
• Grade Operation: No
• Scanning Modes: No
• Slope Match: No

General

• Dimensions: 6.77" L x 8.31" W x 8.07" H
• Warranty: 5-year
• Weight: 5.07 lbs (2.3 kg)

Laser

• Classification: Class 2
• Color: Red
• Direction: Horizontal only
• Visibility: Visible
• Wavelength: 635 nm
• Range (Exterior): Up to 1,312 feet (400 m)
• Range (Interior): Up to 1,312 feet (400 m)
• Remote: None
• Self Leveling: ±5 degrees

Temperature

• Operating: -4 to 122 ºF (-20 to 50 ºC)
