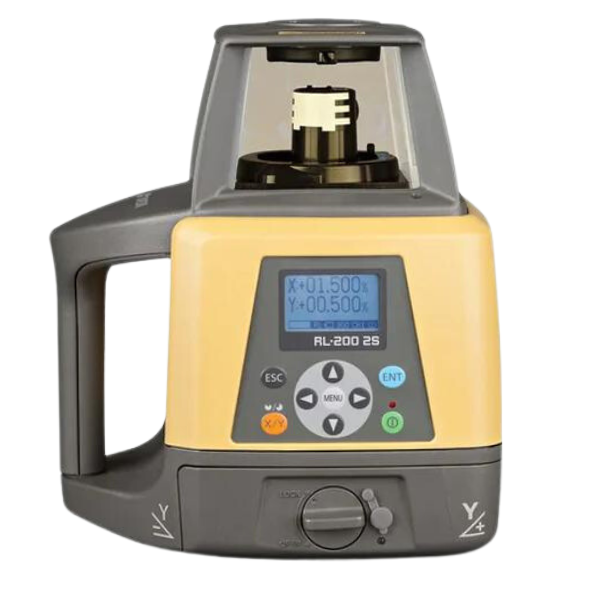

Dim Gray Topcon RL-200 2S Dual Grade Laser
Topcon

Topcon RL-200 2S Dual Grade Laser

$4,070.00
Financing available · Affirm
In stock
Purchase orders accepted
W-9 and vendor pack with every quote
Shipped direct from the manufacturer

The Topcon RL-200 2S Dual Grade Laser is tailored for outdoor construction and surveying tasks, providing accuracy on both horizontal and vertical axes. Suitable for use in geopositioning, land surveying, geospatial monitoring, construction layout, and similar activities, it has an operating range of up to 3,600 feet with a laser receiver, enabling comprehensive coverage for large-scale projects.

Key features

Auto-Levelling Feature: The RL-200 2S automatically levels within ±5 degrees, simplifying setup and ensuring consistent accuracy across various terrains.

Exceptional Accuracy: Delivers ±7 arc second accuracy, providing precise measurements for construction and surveying applications.

Versatile Grade Range: Offers a broad range of adjustments, with ±10 degrees horizontally and -5 to +25 percent vertically, catering to complex grading requirements.

Adjustable Rotation Speed: Equipped with selectable rotation speeds of 300, 600, or 900 rotations per minute, allowing customization for specific project needs.

User-Friendly LCD Display: Features a clear LCD graphical display, for ease of use in all working conditions.

IP66 Environmental Rating: Certified as dust tight and resistant to water jets, ensuring dependable performance in adverse weather conditions.

Extended Battery Life: Operates up to 100 hours on batteries, maximizing productivity by reducing the need for frequent battery changes.

Tripod Compatibility: Includes a versatile 5/8-11 screw thread, accommodating both flat and dome-head type tripods for a stable setup.

Specifications

Accuracy

  • Horizontal: ±7 arc seconds

Applications

  • Concrete Forms, Footings, and Foundations: Yes
  • Checking Building Square & Area: Yes
  • Checking Elevations of Sub-Base and Sub-Grade: Yes
  • Checking/Setting Elevations: Yes
  • Estimating Cut & Fill: Yes
  • Installation of Interior Fittings: Yes
  • Installation/Leveling Ceiling Grids: Yes
  • Installation/Leveling Interior Walls: Yes
  • Locating Finished Floor Levels: Yes
  • Machine Control of Excavators, Graders, Dozers: Yes
  • Matching Existing Slope & Grade: Yes
  • Short-Range Leveling for Decks, Patios & Pools: Yes
  • Short-Run Vertical Alignment: Yes
  • Squaring and Layout of Partitions, Walls & Tile Floors: Yes
  • Transferring Points from Floor to Ceiling: Yes

Battery/Power

  • Battery Life Alert: Yes
  • Battery Life with Alkaline Batteries: Up to 100 hours
  • Battery Life with Rechargeable Battery Pack: Up to 90 hours
  • Power Source: Rechargeable NiMH or Dry-Cell

Extra Technology

  • Detector/Receiver: LS-100D (Optional)

Features

  • Adjustable Rotating Speed: 300, 600, 900 RPM
  • Bump Sensor (H.I./Out of Position Alert): Yes
  • Display: Backlit, graphic LCD
  • Protection Class: IP66 dustproof and powerful water jet resistant
  • Tripod Adapter (Center Screw Thread): 5/8 x 11

Functions

  • Automatic Leveling: Yes
  • Beam Operating Modes: Beam masking
  • Grade Operation: Automatic

General

  • Dimensions: 6.9" L × 8.6" W × 10.0" H
  • Warranty: 5-year
  • Weight: 7.5 lbs (3.4 kg) with D-cell alkaline battery or 7.9 lbs (3.6 kg) with NiMH battery

Grade

  • Accuracy: Horizontal ±7 arc seconds
  • Percentage: -5 to +25 %
  • Type: Single

Laser

  • Classification: Class 3
  • Color: Red
  • Direction: Horizontal and vertical
  • Visibility: Visible
  • Wavelength: 685 nm
  • Range (Exterior): Up to 3,600 feet (1,100 m)
  • Self Leveling: ±5 degrees

Temperature

  • Operating: -4 to 122 °F (-20 to 50 °C)
  • Storage :  -22 to 140 °F (-30 to 60 °C)
