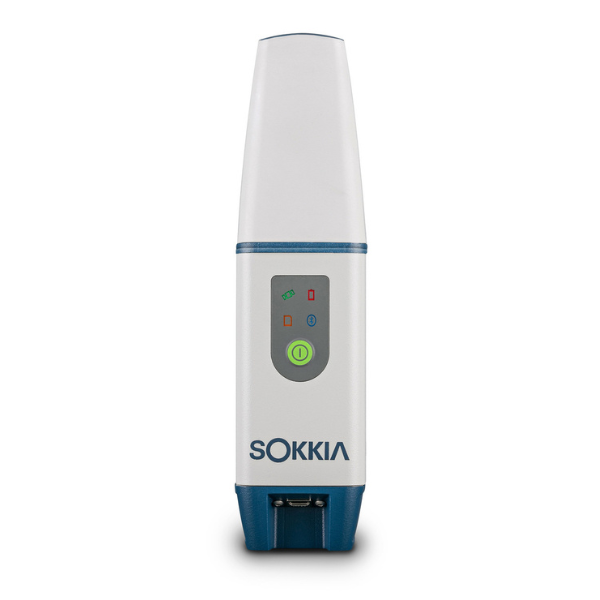

Sokkia GCX3 GNSS Receiver
W-9 and vendor pack with every quote
Shipped direct from the manufacturer
The Sokkia GCX3 GNSS Receiver offers professional performance, delivering centimeter-level accuracy, and reliable measurements. Its versatility and ease of use make it the ideal base/rover RTK (Real Time Kinematic) system or network RTK rover for surveying equipment. With 226 optimized satellite tracking channels, this compact RTK GPS receiver offers comprehensive coverage and robust signal acquisition, even in areas with interference. Its portable and cable-free design is perfect for fieldwork, allowing surveyors to work with greater freedom and efficiency. With wireless connectivity and multi-channel long-range Bluetooth technology, the GCX3 is well-suited for network RTK applications, making it a useful tool for surveying tasks.
Specifications
Number of Channels
- 226 channels
Tracked Signals
- GPS: L1 C/A, L1C, L2P, L2C
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- BeiDou: B1, B2
- Galileo: E1
- SBAS: L1 C/A WAAS/MSAS/EGNOS/GAGAN
- QZSS: L1 C/A, L1C, L2C
Static/Fast Static Accuracy
- Horizontal (H): 10mm + 0.8 ppm
- Vertical (V): 15 mm + 1.0 ppm
Memory
- Internal non-removable memory up to 8 GB
Bluetooth® Modem
- v2.1 + EDR
Dust/Water Protection
- IP67
Dimensions (w x h x l)
- 47 x 197 x 47 mm (1.9” x 7.3” x 1.9”)
Battery Type
- Internal non-removable
Operating Time
- All day operation in any configuration (up to 10 hours)
External Power Connector
- Service port (shared with USB 2.0 communication)
