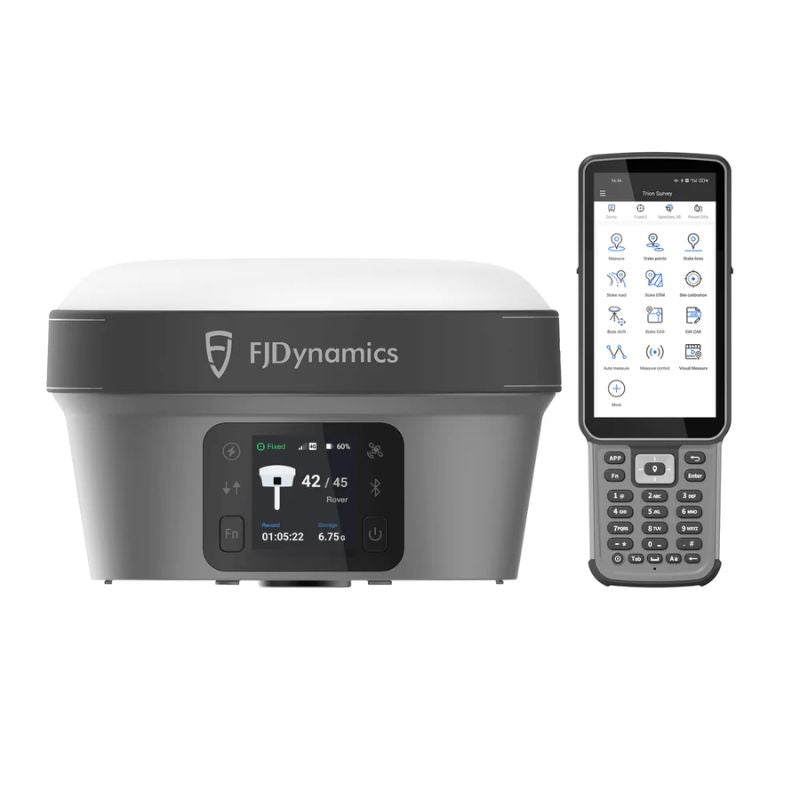

FJ Dynamics Trion V10i RTK GNSS Receiver with Visual Positioning System
FJ Dynamics

FJ Dynamics Trion V10i RTK GNSS Receiver with Visual Positioning System

$6,599.00
Financing available · Affirm
In stock
Purchase orders accepted
W-9 and vendor pack with every quote
Shipped direct from the manufacturer

FJD Trion V10i RTK GNSS Receiver with Visual Positioning System

Grab the V10i RTK GNSS Receiver with visual positioning system and get measuring. Integrating an OLED screen, IMU, and two cameras, the V10i gives a next-level productivity boost. The AR Stakeout provides real-time visual guidance on stakeouts, while the Visual Measure achieves the measurement of hard-to-access locations. An OLED screen brings a new interactive experience for Surveyors.

Capture More, Worry Less

Key Features

FJD V10i Overview

V10i Overview V10i Feature

Dual Cameras for Precise Measurements

The V10i is designed to get data even in obstructed, dangerous, or inaccessible locations. With its onboard processing software, 2 MP front camera with global shutter, and 5 MP downward camera, it delivers real-time measurements directly to the field controller.

AR Stakeout

Use AR Stakeout to measure and stake out points by following illustrations on-screen without compromising safety.

Tilt Compensation

Get survey-grade accuracy with robust IMU-based tilt compensation, no calibration required.

Field to Office

Enhance productivity with Trion Survey Cloud. Get 2 GB of free storage with purchase.

Easy Project Management

Seamlessly set up data, including coordinate systems, geoid models, and grid files, to streamline project management.

Built Tough, Engineered to Perform

The V10i's lightweight alloy body is resistant to magnetic interference, rain, and drops, ensuring reliable performance even in tough environments.

Application Scenario

Application Scenarios

Specifications

Specifications

GNSS Performance:

  • Channels: 1408 channels
  • Supported Systems and Bands:
    • GPS: L1A, L1C, L2C, L2P, L5
    • GLONASS: L1, L2
    • Galileo: E1, E5a, E5b, E6*
    • BeiDou: B1I, B2I, B3I, B1C, B2a, B2b*
    • QZSS: L1, L2C, L5, L6*
    • IRNSS: L5*
    • SBAS: L1*

Hardware:

  • RTK Accuracy:
    • Horizontal: 8 mm + 1 ppm RMS
    • Vertical: 15 mm + 1 ppm RMS
  • Initialization Time: < 5 seconds
  • Initialization Reliability: > 99.9%
  • Post-Processing Static:
    • Horizontal: 2.5 mm + 0.5 ppm RMS
    • Vertical: 5 mm + 0.5 ppm RMS
  • Code Differential:
    • Horizontal: 0.4 m RMS
    • Vertical: 0.8 m RMS
  • Autonomous:
    • Horizontal: 1.5 m RMS
    • Vertical: 2.5 m RMS
  • Visual Survey Accuracy: Typically 3 cm, range 2-15 m
  • Positioning Rate: 1 Hz, 5 Hz, and 10 Hz
  • Time to First Fix:
    • Cold start: < 20s
    • Hot start: < 5s
    • Signal re-acquisition: < 1 s
  • Tilt Angle: 0-60°
  • RTK Accuracy with Tilt Compensation: 30°/2.5 cm

Camera:

  • Sensor Resolution: Forward: 2 MP, Downward: 5 MP
  • Camera Field of View (FOV): 70°

Communications and Data Storage:

  • SIM Card Type: Nano-SIM
  • Network Modem: Integrated 4G modem (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM)
  • Wi-Fi: 2.4 & 5 GHz, 802.11a/b/g/n/ac, touch pairing
  • Bluetooth®: BT4.2 & BLE
  • Ports: 7-pin LEMO port, UHF antenna port, USB Type-C port
  • Built-in UHF Radio:
    • Rx/Tx: (410-470)mHz / (902-928)mHz
    • Transmit Power: 1W
    • Protocols: TRIMTALK, TRIMMARK III, TT450S, TRANSEOT, Satel 3AS 4FSK
    • Link Rate: 9,600 bps to 19,200 bps
    • Range: Typically 5-8 km
  • Data Formats:
    • Input & Output: NMEA-0183, RTCM3.X
    • Input: RTCM2.X, CMR
  • Data Storage: 32 GB internal memory
