IF800 Tomcat
Portable. Dependable. Deployable.
Efficiency meets versatility in a compact, foldable frame designed for professional applications
Overview

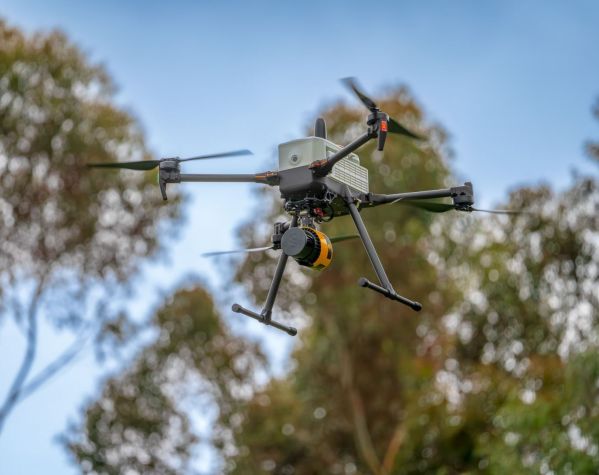

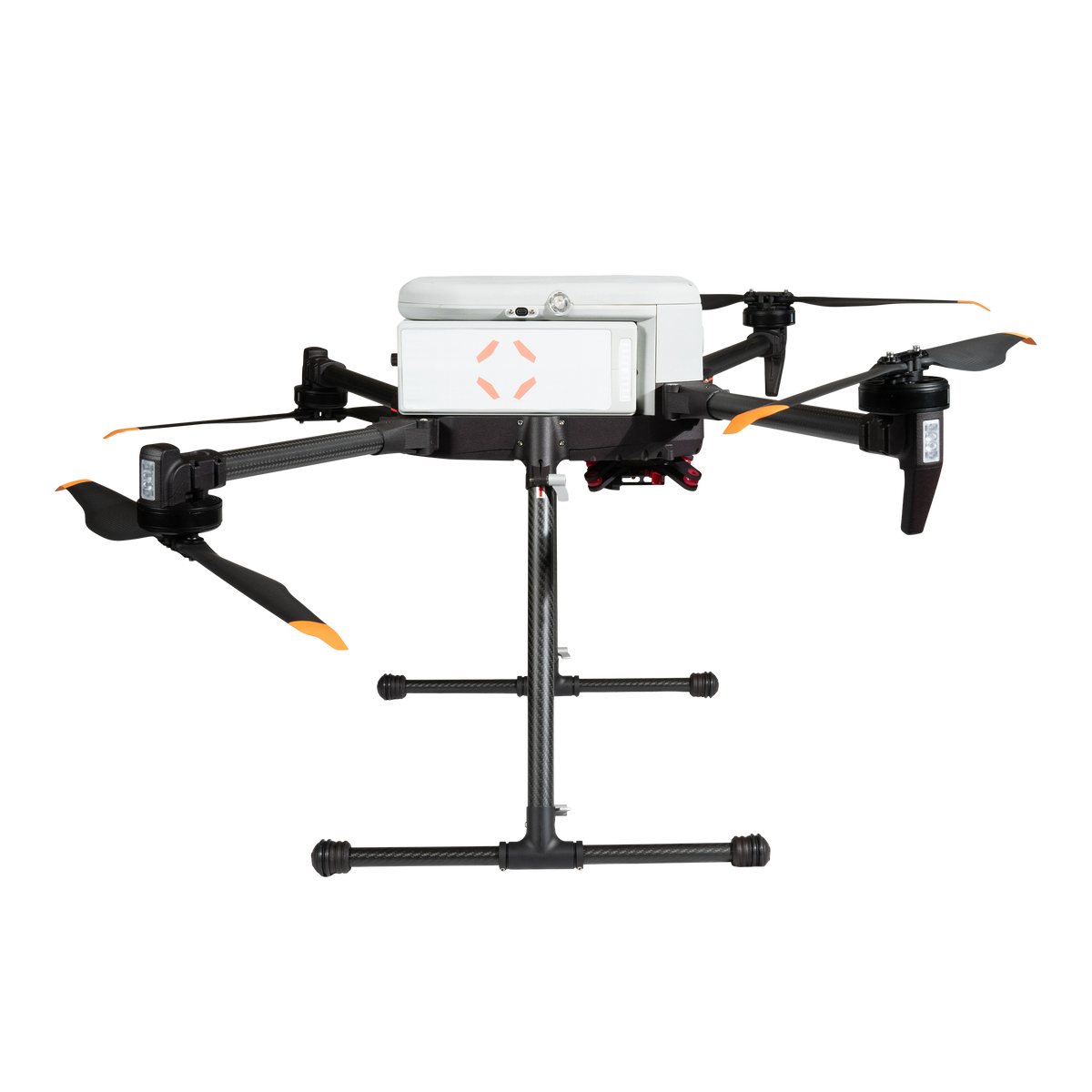

Inspired Flight's IF800 Tomcat combines efficiency with versatility, featuring a lightweight, compact, and foldable frame that enables easy transportation and deployment in various environments. This NDAA-compliant reliable and adaptable tool for professionals offers advanced capabilities for diverse enterprise applications including high-resolution aerial photogrammetry, surveying, search and rescue operations, and infrastructure inspection. With its impressive flight time and payload capacity, the IF800 Tomcat maximizes operational efficiency and productivity for professional users.
IF800 TOMCAT
Optimize Your Missions
With an impressive flight time of 54 minutes and a payload capacity of 6.6 lbs., the medium-lift IF800 Tomcat maximizes operational efficiency and productivity.
- 54-Minute Max Flight Time
- Hot Swappable Intelligent Batteries
- Blue UAS & NDAA Compliant
- 49 MPH Max Speed
- 6.6 Lbs. Max Payload
- IP43 Rated
Performance Highlights
23 knots
Max Wind Resistance
DISCOVER IF800 TOMCAT'S CUTTING-EDGE CAPABILITIES
IF800 Tomcat's dual hot swappable smart batteries enable uninterrupted flight operations, while the easy slide installation ensures minimal downtime during battery swaps. Equipped with advanced features, it enhances its performance and functionality.
The 30-degree upward-angle shooting capability allows users to capture crucial data from unique perspectives, expanding the possibilities of aerial missions. The inclusion of an FPV (First-Person View) camera enables operators to have real-time visual feedback and precise control during flights.
Streamline Drone Operation
Inspired Flight offers advanced Ground Control Stations — GS-ONE and Northwest Blue Herelink — that streamline drone operations with real-time data, intuitive controls, and reliable connectivity, empowering pilots to fly with precision in any mission.
GS-ONE
Features:
- 7 inch touchscreen, 2,000 NITS
- Hot-swappable battery
- IP55-rated enclosure for field conditions
- Customizable buttons
- Up to 5 hours of runtime
- Transmission range up to 6 miles
Northwest Blue Herelink
Features:
- 5.46 inch touchscreen, 1,000 NITS
- Built-in 4,950 mAh Li-ion battery
- Customizable buttons and wheel
- 2.4 GHz frequency
- Transmission range up to 12 miles
Specifications
| Max Flight Time |
54 minutes |
| Max Payload Capacity |
6.6 lbs (3.0 kg) |
| Max Air Speed |
49 mph (22 m/s) |
| Max Wind Resistance |
23 knots gusts (12 m/s) |
| Max Ascent Speed |
16 ft/s (5 m/s) |
| Max Descent Speed |
10 ft/s (3 m/s) |
| Operating Temperature |
-4°F to 113°F (-20°C to 45°C) |
| Diagonal Size |
35.6 inches (905 mm) |
| Folded Size (WxLxH) |
14.2 x 17.4 x 7.8 inches (36 x 44 x 20 cm) |
| Unfolded Size (WxLxH) |
51.8 x 44.8 x 20.3 inches (132 x 114 x 52 cm) |
| Empty Weight (w/o batteries) |
9.2 lbs (4.2 kg) |
| Weight with Batteries |
18.7 lbs (8.5 kg) |
| Max Gross Takeoff Weight |
25.3 lbs (11.5 kg) |
| Ingress Protection Rating |
IP43 |
Full Technical Specifications
Flight Stack
| Flight Controller |
CubePilot Cube Blue H7, Triple Redundant IMU |
| GNSS / Compass |
Dual CubePilot Here4 Blue |
| Downward Ground Sensor |
LightWare SF000/B |
| Payload Power Rails |
6s Battery Voltage 5v, 12v, 18v |
| Payload Interface |
IF800 Universal Payload Interface |
| Operating Software |
Copter by Ardupilot |
Flight Modes
| Position Hold |
Automatically holds altitude and position, manually change position |
| Loiter |
Holds altitude and position, precision manual movements using GPS |
| Auto |
Executes pre-defined waypoint mission |
| RTL |
Auto returns to takeoff location and lands |
| Land |
Auto land while maintaining horizontal position |
| Altitude Hold |
Holds altitude only, failsafe mode if GPS signal lost |
Transport
| Transport Case Size (WxLxH) |
20.8 x 31.8 x 12.5 inches (52.8 x 80.7 x 31.7 cm) |
| Transport Case Weight (w/ aircraft & GCS) |
40 lbs (18 kg) |
