2024 Total Stations: Complete Guide on Types & Tech

2024 Total Stations: Complete Guide on Types & Tech

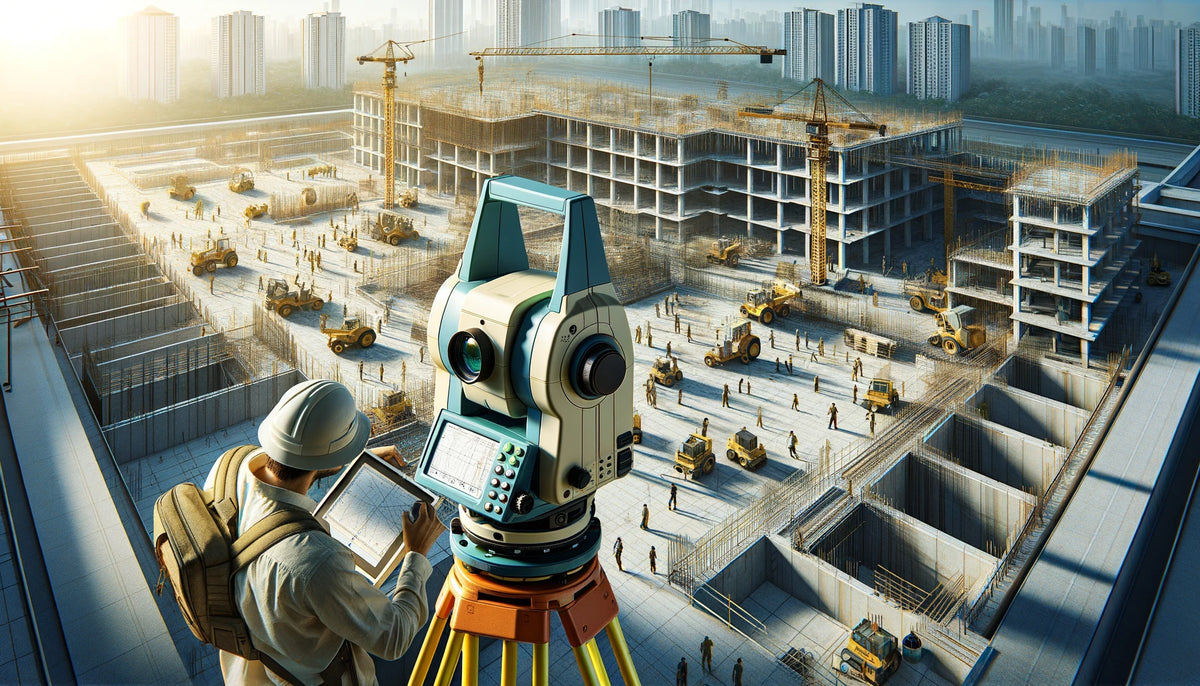

Imagine a world where surveying and construction projects are conducted with unprecedented precision and efficiency. This is the reality brought to us by total stations, the cornerstone tools in modern surveying and construction. Known for their ability to measure angles, distances, and elevations with remarkable accuracy, total stations have significantly transformed these fields. Today, with continuous technological advancements, an array of total stations, each boasting unique features and specifications, is available at our fingertips.

In this article, we delve into the diverse world of total stations. Our journey will cover their crucial role in surveying and construction, explore the various types based on technology, accuracy, range, and applications, and compare them to help you make an informed choice. Whether you're a seasoned surveyor, an aspiring engineer, or a professional in the construction realm, this comprehensive guide aims to enhance your understanding of total stations, assisting you in selecting the ideal one for your project needs.

By the end of this article, you'll not only gain insight into the different types of total stations but also grasp their practical applications, ensuring you're well-equipped to choose the most suitable total station for your specific project requirements.

What is a Total Station?

A total station is a modern surveying instrument that combines the functions of a theodolite, an electronic distance meter (EDM), and a data collector. It is used to measure angles, distances, and elevations with high accuracy and precision. Total stations are widely used in surveying, construction, engineering, and other related fields.



A total station consists of a telescope, a EDM, a microprocessor, and a data collector. The telescope is used to sight the target and measure the angles of elevation, depression, and horizontal rotation. The EDM uses laser or infrared technology to measure the distance between the total station and the target. The microprocessor processes the data collected by the telescope and the EDM and calculates the coordinates of the target. The data collector stores and displays the data collected by the total station.



Total stations are available in different types based on the technology used, the accuracy, the range, and the applications. The choice of a total station depends on the specific needs and requirements of the project. Some of the common types of total stations include robotic total stations, reflectorless total stations, high-precision total stations, long-range total stations, and specialized total stations for specific applications.



In summary, a total station is a versatile and powerful surveying instrument that plays a critical role in modern surveying and construction projects. It offers high accuracy, precision, and efficiency in measuring angles, distances, and elevations. The different types of total stations available in the market offer a range of features, specifications, and applications to meet the diverse needs of surveyors and construction professionals.



Importance of Total Stations in Surveying and Construction

Total stations are essential tools for surveying and construction projects. They provide accurate measurements of distances, angles, and elevations, which are crucial for creating maps, designing buildings, and laying out infrastructure. Total stations have replaced traditional surveying equipment such as theodolites, chains, and tapes, as they offer more precise and efficient measurements.



One of the main advantages of total stations is their ability to measure both horizontal and vertical angles simultaneously. This feature allows surveyors and engineers to determine the exact location of points on the ground, which is necessary for creating accurate maps and plans. Total stations also have built-in electronic distance measurement (EDM) systems, which use laser or infrared technology to measure distances with high accuracy.



Total stations are widely used in construction projects to ensure that buildings are constructed according to the design specifications. They are used to set out the foundation, walls, and other structural elements of the building, as well as to check the alignment and levelness of the structure. Total stations are also used to monitor the progress of construction and to ensure that the building is being constructed within the specified tolerances.



In addition to surveying and construction, total stations are used in a variety of other applications, such as mining, archaeology, and environmental studies. They are also used in the field of geodesy, which is the science of measuring the size and shape of the Earth.



Overall, total stations are essential tools for surveying and construction projects. They provide accurate and efficient measurements of distances, angles, and elevations, which are necessary for creating maps, designing buildings, and laying out infrastructure. Total stations have revolutionized the field of surveying and have made it possible to achieve higher levels of accuracy and efficiency in a shorter amount of time.



Types of Total Stations Based on Technology

Total stations are available in different types based on the technology used in their construction. The technology used in a total station determines its accuracy, range, and applications. Here are the different types of total stations based on technology:

Electronic Total Stations

Electronic total stations are the most common type of total stations used in surveying and construction. They use electronic distance measurement (EDM) technology to measure distances and angles. Electronic total stations are accurate and can measure distances up to several kilometers.

Robotic Total Stations

Robotic total stations are advanced electronic total stations that can be operated remotely. They use a motorized system to control the movement of the instrument and can be controlled using a remote control or a computer. Robotic total stations are ideal for large construction projects where accuracy and speed are essential.

Reflectorless Total Stations

Reflectorless total stations use laser technology to measure distances without the need for a reflector. They are ideal for measuring distances in areas where reflectors cannot be used, such as in dense forests or on uneven terrain. Reflectorless total stations are accurate and can measure distances up to several hundred meters.

GPS Total Stations

GPS total stations use satellite technology to measure distances and angles. They are ideal for large-scale surveying projects where accuracy and speed are essential. GPS total stations are accurate and can measure distances up to several kilometers.

Hybrid Total Stations

Hybrid total stations combine the features of electronic and GPS total stations. They use both electronic distance measurement and satellite technology to measure distances and angles. Hybrid total stations are ideal for large-scale surveying projects where accuracy and speed are essential.



In conclusion, the type of total station you choose for your surveying or construction project will depend on the technology used in its construction. Electronic total stations are the most common type of total stations used in surveying and construction, but other types such as robotic, reflectorless, GPS, and hybrid total stations are also available. It is essential to consider the accuracy, range, and applications of each type of total station before making a decision.



Types of Total Stations Based on Range

Total stations are essential tools for surveying and construction projects. They are used to measure angles, distances, and elevations with high accuracy and precision. One of the key factors to consider when choosing a total station is its range. The range of a total station refers to the maximum distance it can measure accurately. There are different types of total stations based on their range, and each type is suitable for specific applications.

Short-Range Total Stations

Short-range total stations have a range of up to 500 meters. They are ideal for small-scale surveying and construction projects, such as building layouts, topographic surveys, and boundary surveys. Short-range total stations are lightweight and portable, making them easy to transport and set up. They are also less expensive than other types of total stations.

Medium-Range Total Stations

Medium-range total stations have a range of up to 1,000 meters. They are suitable for medium-scale surveying and construction projects, such as road construction, bridge construction, and pipeline surveys. Medium-range total stations are more accurate than short-range total stations and can measure angles and distances with higher precision.

Long-Range Total Stations

Long-range total stations have a range of up to 5,000 meters. They are ideal for large-scale surveying and construction projects, such as mining, tunneling, and dam construction. Long-range total stations are highly accurate and can measure angles and distances with sub-millimeter precision. They are also equipped with advanced features, such as reflectorless measurement and automatic target recognition.

Very Long-Range Total Stations

Very long-range total stations have a range of up to 10,000 meters or more. They are used for specialized applications, such as satellite tracking, geodetic surveys, and astronomical observations. Very long-range total stations are the most accurate and precise instruments available, but they are also the most expensive.



In conclusion, the range of a total station is an important factor to consider when choosing the right instrument for your surveying or construction project. The type of total station you choose will depend on the size and complexity of your project, as well as your budget and technical requirements. By understanding the different types of total stations based on range, you can make an informed decision and ensure the success of your project.



Types of Total Stations Based on Applications

Total stations are versatile surveying instruments that can be used for a wide range of applications in various industries. Depending on the specific needs of a project, different types of total stations may be more suitable than others. Here are some of the most common types of total stations based on their applications:

Construction Total Stations

These total stations are designed for use in construction projects, such as building construction, road construction, and bridge construction. They are typically rugged and durable, with features such as laser plummet, electronic distance measurement (EDM), and automatic target recognition (ATR) that make them ideal for measuring distances, angles, and elevations on construction sites.

Land Surveying Total Stations

These total stations are used for land surveying and mapping applications, such as boundary surveys, topographic surveys, and cadastral surveys. They are typically more accurate and precise than construction total stations, with features such as dual-axis compensators, reflectorless measurement, and data storage capabilities that make them ideal for high-precision surveying work.

Mining Total Stations

These total stations are designed for use in mining and quarrying applications, such as mine mapping, stockpile measurement, and blast monitoring. They are typically rugged and durable, with features such as long-range reflectorless measurement, laser plummet, and automatic target tracking that make them ideal for working in harsh and challenging environments.

Monitoring Total Stations

These total stations are used for monitoring applications, such as structural monitoring, deformation monitoring, and environmental monitoring. They are typically equipped with advanced sensors and software that allow them to measure and analyze changes in the environment or structure over time, making them ideal for long-term monitoring projects.



Overall, the choice of total station will depend on the specific needs of the project and the level of accuracy and precision required. By understanding the different types of total stations available and their applications, surveyors and engineers can make an informed decision about which instrument to use for their project.



Comparison of different types of total stations

This section is crucial for anyone who is looking to purchase a total station for their surveying or construction needs. By comparing the different types of total stations, one can make an informed decision about which one to buy based on their specific requirements.



There are several factors to consider when comparing different types of total stations. These include the technology used, accuracy, range, and applications. For example, some total stations use reflectorless technology, while others use prism technology. Reflectorless total stations are more suitable for measuring distances to objects that are difficult to reach, while prism total stations are better for measuring longer distances.



Accuracy is another important factor to consider when comparing different types of total stations. The accuracy of a total station is determined by its angular and distance measurement capabilities. High-precision total stations are more accurate and are suitable for applications that require high levels of accuracy, such as construction and engineering projects.



Range is also an important consideration when comparing different types of total stations. The range of a total station refers to the maximum distance it can measure accurately. Total stations with longer ranges are more suitable for large-scale projects, while those with shorter ranges are better for smaller projects.



Finally, the applications of different types of total stations should also be considered when making a comparison. Some total stations are designed for specific applications, such as tunneling or mining, while others are more versatile and can be used for a wide range of applications.



In conclusion, comparing different types of total stations is essential for anyone who wants to make an informed decision about which one to buy. By considering factors such as technology, accuracy, range, and applications, one can choose a total station that is best suited for their specific needs.



Factors to Consider When Choosing a Total Station

When it comes to choosing a total station, there are several factors that need to be considered. These factors can vary depending on the specific needs of the surveying or construction project. Here are some of the key factors to consider when choosing a total station:

Accuracy

The accuracy of the total station is one of the most important factors to consider. The accuracy of the instrument can vary depending on the type of total station and the technology used. It is important to choose a total station that offers the required level of accuracy for the project.

Range

The range of the total station is another important factor to consider. The range can vary depending on the type of total station and the technology used. It is important to choose a total station that offers the required range for the project.

Applications

The applications of the total station are also important to consider. Different types of total stations are designed for different applications. It is important to choose a total station that is suitable for the specific application of the project.

Features

The features of the total station are also important to consider. Different types of total stations come with different features such as Bluetooth connectivity, data storage, and more. It is important to choose a total station that offers the required features for the project.

Price

The price of the total station is also an important factor to consider. Total stations can vary in price depending on the type, technology, and features. It is important to choose a total station that fits within the budget of the project.



In conclusion, choosing the right total station is crucial for the success of any surveying or construction project. By considering the factors mentioned above, one can make an informed decision about which total station to choose. It is important to choose a total station that offers the required level of accuracy, range, features, and applications while also fitting within the budget of the project."



Conclusion

In this section, we will summarize the key points discussed in the article and provide some final thoughts on the topic of types of total stations.



To begin with, we have defined what a total station is and explained its importance in surveying and construction. We have also discussed the different types of total stations based on technology, accuracy, range, and applications. Each type of total station has its own unique features and specifications that make it suitable for specific tasks and projects.



In the comparison section, we have compared the different types of total stations based on their features, specifications, and applications. This comparison can help readers make an informed decision about which type of total station to choose for their specific needs.



Finally, in the factors to consider section, we have highlighted some important factors that readers should consider when choosing a total station. These factors include accuracy, range, battery life, durability, and ease of use.



In conclusion, total stations are essential tools for surveying and construction projects. There are different types of total stations available in the market, each with its own unique features and specifications. By understanding the different types of total stations and the factors to consider when choosing one, readers can make an informed decision and select the best total station for their specific needs.
