Monitoring the health of structures is crucial, and knowing the extent of structural deformations is key to maintaining their integrity. You're probably aware that buildings and bridges are designed to withstand certain stressors, but how do we measure whether they're holding up as expected? That's where total stations come into play.
Total stations are at the forefront of surveying techniques used to monitor structural deformations. They offer precise leveling and the ability to measure angles and distances to prisms attached to the structure. This data is then processed to detect any movement, ensuring that any potential issues are caught early.
Structural health monitoring is essential for maintaining the integrity of modern structures.
Total stations provide high-precision measurements for deformation analysis.
Regular monitoring can detect movement, indicating potential structural issues.
Data from total stations is processed with advanced software for accuracy.
Automated systems like AMTS offer efficient, real-time monitoring solutions.
Imagine the integrity of a skyscraper, a bridge, or even a historical monument. You'd want these structures to last, maintaining not only their aesthetic but also ensuring utmost safety for everyone. That's where structural deformation monitoring comes in—it's a crucial process that involves observing the changes in a structure over time to detect any potential issues.
Structural deformation is a phenomenon that can occur due to various factors such as natural events, material degradation, or design flaws. It refers to the change in shape, size, or position of a structure's components. Understanding these changes is pivotal because slight deformations might indicate significant underlying problems. To assess the stability and longevity of structures, professionals rely on precise measurements of these deformations. With the advent of modern technology, the methods and accuracy of these assessments have significantly improved.
Total stations play a central role in this process. These instruments allow engineers to measure angles and distances with exceptional precision, which is critical for monitoring the structural health of any edifice. By attaching prisms to different parts of a structure, total stations gather data which, once processed, reveal even the most subtle shifts or deformations. This information isn't just raw data; it's a narrative of how a structure behaves over time.
The use of automated systems, such as the Leica GeoMoS automatic deformation monitoring system, is increasing in popularity. These systems can continuously collect data, enabling real-time monitoring that enhances decision-making in both preventive maintenance and emergency scenarios. Through courses and webinars, professionals can learn to master these high-tech tools, ensuring that they're equipped to handle the complexities of modern structural monitoring.
Equipped with these technologies, you're not just observing static numbers. You're actively participating in a dynamic process, the goal of which is to extend the life of structures and ensure the safety of all users. As each reading can inform crucial decisions about repairs, reinforcements, or even evacuations, the gravity of accurate structural deformation monitoring cannot be underestimated.
Structural health monitoring (SHM) is a critical process that ensures the safety and longevity of infrastructures like reservoir dams, which are pivotal for flood control, power generation, and irrigation. SHM isn't just a precaution; it's a vital aspect of infrastructure management that you can't afford to overlook. When it comes to dams, the risk is high—a single failure can lead to catastrophic outcomes, impacting lives, property, and the natural environment.
One essential component of SHM is deformation monitoring. You're looking out for any abnormal shifts or distortions that could signal potential danger. In the context of dams, monitoring deformation is an integral part of the dam safety protocols. It involves a continuous scrutiny that begins right from the planning phase and extends throughout the dam's operational life. When it comes to safeguarding these critical structures, periodic assessments are not just routine—they're a mandate.
Instrumentation plays a crucial role in this process. A variety of sensors, such as geodetic, geotechnical, and environmental sensors, are strategically placed throughout the structure. These instruments are designed to detect changes in deformation, internal stress, and seepage levels, among other factors. This data is indispensable for you to analyze the ongoing health of the dam.
Notably, dam safety monitoring is a lifecycle commitment. It's not a one-off task but an ongoing responsibility. The installation of monitoring equipment, which happens during construction, forms the basis for a reliable monitoring system. But the real work begins once the dam is operational. Regular and special monitoring regimes need to be implemented to continuously assess the safety and integrity of the dam.
Remember, the goal isn't to respond to failures after they occur—it's to preemptively identify and rectify potential issues before they lead to significant problems. That's why having a robust SHM system in place is not merely responsible management—it's a necessity for the well-being of communities and the environment alike.
Total stations are a cornerstone in the realm of structural health monitoring (SHM), particularly when talking about reservoir dams. These advanced pieces of equipment are vital for the measurement and recording of both horizontal and vertical displacements—key indicators of structural deformation. Imagine a digital telescope equipped with electronic distance measurement (EDM) tools and microprocessors all working together. This is your total station.
Robotic total stations stand out in the industry due to their continuous automatic monitoring systems. They can operate with minimal human intervention, making them highly efficient for long-term monitoring projects. With the implementation of mathematical models and accuracy estimation formulas, total stations help you translate complex data into understandable and actionable insights.
Nonetheless, monitoring dam deformation isn't without its challenges. Total stations, like any remote measurement systems, are affected by atmospheric conditions. The data they collect is prone to errors from atmospheric refraction which can skew distance and angle observations. These refractions are a natural phenomenon yet they introduce significant variables in structural monitoring.
Recognizing this, experts in the field have been working towards refining data accuracy. Instead of solely relying on meteorological sensors to create atmospheric models for data correction—adding more complexity and instruments—innovative methods have been developed. Observation correction and coordinate correction are two such methodologies that mitigate the influence of atmospheric refraction without needing additional onsite measurements.
As your infrastructure monitoring needs evolve, so does the technology to support it. While acknowledging the susceptibility of total stations to atmospheric elements, it's equally important to understand how these issues are being addressed. The enhancements in total station technology aid in making deformation monitoring more reliable, providing a layer of safety for infrastructures and communities alike.

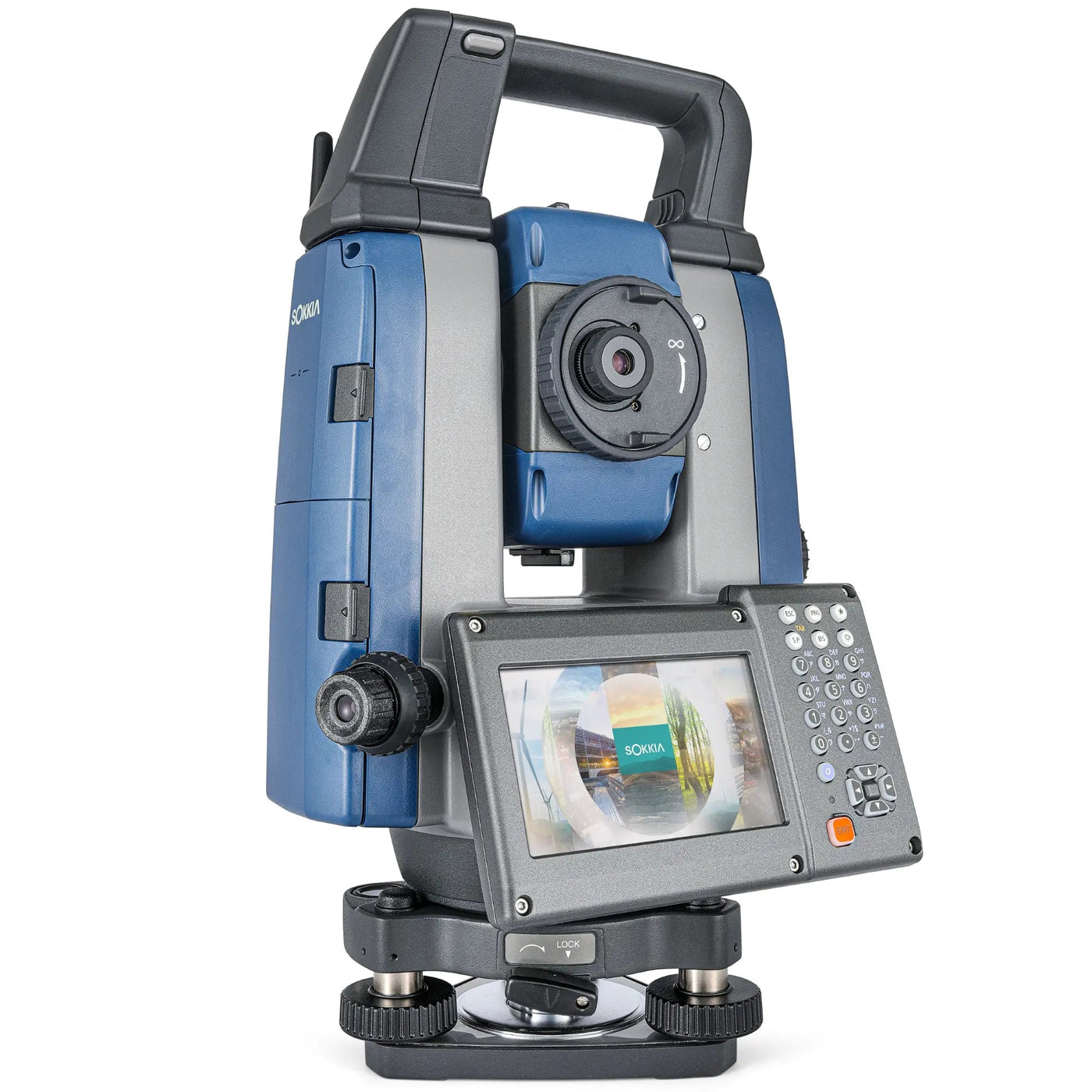

When it comes to assessing structural health, total stations are at the forefront. Robotic Total Stations (RTS), in particular, offer a high degree of efficiency due to their capability to monitor deformation automatically over long periods. You might wonder, what sets them apart in the area of deformation monitoring?
Fundamentally, RTS devices employ electronic distance measurement (EDM) technology to measure the distances between the instrument and specific points on a structure. The measurements of these distances are then processed to gauge any horizontal and vertical displacement.
Horizontal displacement is crucial for identifying lateral movement in structures like dam walls.
Vertical displacement helps detect any sinking or uplift that could endanger the structural integrity of civil engineering works.
Here's how the process unfolds:
The total station is set up on a stable platform.
Surveyors or automated systems direct the RTS's telescope to predefined monitoring points.
The device calculates distances and angles with precision by using laser beams or infrared signals.
Data concerning the exact position of points over time are recorded, providing a basis for analyzing any shifts in the structure.
Through this systematic approach, the RTS offers advantages in terms of continuous monitoring for deformation. Not only does it allow for frequent data collection but it also ensures a high level of detection sensitivity for even the slightest movements. Given the broad monitoring range required for structures like dams, it's essential to ensure that the use of such equipment is optimized for accurate readings.
The effectiveness of total stations, bolstered by the advent of autonomous robotic systems, has revolutionized structural health monitoring. Their role is heightened given the precision and automation they bring to the task at hand. Monitoring accuracy is imperative and is continually tested and improved, especially as relevant to unique structural characteristics such as those found in dams compared to tunnels.
By understanding how these tools function and the precision they can achieve, engineers and surveyors can better plan and implement strategic monitoring systems that safeguard our infrastructure.
Total stations have become integral to deformation analysis due to their high level of accuracy. Robotic total stations (RTS), in particular, offer significant advancements over traditional methods.
With an RTS, you're looking at a system designed for continuous, automatic monitoring. This automation allows for round-the-clock observation without the need for manual intervention, providing a stream of real-time data essential for identifying trends and making timely decisions about structural health.
One of the standout benefits of using total stations for deformation analysis lies in their ability to measure both horizontal and vertical displacements with remarkable precision. The accuracy of these measurements is vital because it dictates the reliability of the entire monitoring process. Ultimately, detecting even the slightest movements can be the difference between early intervention and catastrophic failure.
Here's a brief overview of the advantages:
Continuous Monitoring: Unlike periodic manual surveys, RTS systems provide uninterrupted data collection, which is critical for capturing transient deformation events.
Precision and Accuracy: Modern total stations come with enhanced capabilities that allow the detection of minute changes in structural integrity.
Automation: Reduces the likelihood of human error and frees up resources for other critical tasks.
Data Richness: The quantity of data gathered over time can help in predicting future behavior of the structure under observation.
Structures like dams have wide monitoring ranges and complex stress patterns – total stations rise to the challenge, providing comprehensive coverage and detailed analysis that guide maintenance strategies effectively. For instance, in the case of dam monitoring, the breadth of data made available by these instruments ensures that no potential risk is overlooked.
Implementing RTS technology ultimately leads to smarter, data-driven decision-making. By relying on the accuracy and automation of total stations, you're able to maintain the structural integrity of your assets with confidence.
In the world of structural health monitoring, automated monitoring systems like Automated Motorized Total Stations (AMTS) revolutionize how deformations are detected and analyzed. These systems operate continuously, requiring minimal human intervention, and maintain vigilant watch over structures even in remote locations.
AMTS setups consist of several key components designed to offer comprehensive monitoring solutions. Survey Prisms are strategically placed at crucial monitoring and control points across the structure to be observed. The heart of the system, high-precision robotic total stations, is controlled and managed by a dedicated Controller. This setup ensures measurements are scheduled, executed, and transmitted without fail.
The automated cycle of data collection is streamlined by this sophisticated integration. The controller gathers data from the total stations and sends it to the GeoCloud Server. Here, data undergoes rigorous quality checks and is processed with advanced software like MonStar least-squares. This level of scrutiny ensures the accuracy and reliability of the information being reported.
The processed data isn't just left in the databases; it's formatted and presented on a GeoCloud Web Site. This site becomes a hotbed for real-time data, providing alerts, site views, and detailed graphs. Not to mention, it seamlessly integrates with standard geotechnical instrumentation. With easy access to such comprehensive data, you're equipped to respond quickly to any sign of structural movement.
Imagine having access to a tower-mounted AMTS diligently monitoring rail-clip prisms on a railway track. The precision in placement of both the AMTS and prisms is critical for establishing robust geometric networks that can signal even the slightest movement. Such precision offers peace of mind in the structural integrity of vital transportation networks.
It's the combination of continuous, unattended monitoring and the real-time processing and reporting that makes automated total stations indispensable in today's construction and monitoring fields. By integrating systems like AMTS into your monitoring regime, you're not just collecting data but forging a path to make proactive, informed decisions that keep structures safe and operational.
And remember, precision is king when it comes to deformation analysis. Properly configured AMTS systems bring this precision to your projects, providing you with the vital high-resolution data necessary for spotting issues before they escalate. With systems like these, you're not just anticipating change; you're staying one step ahead.
Embracing Automated Motorized Total Stations for your structural deformation monitoring needs ensures you're at the forefront of technological innovation. You'll benefit from precise, real-time data that enables proactive maintenance and decision-making. With minimal human intervention required, you can trust in the continuous operation and reliability of these systems to safeguard the integrity of your structures. Whether you're managing a single building or a complex network, the integration of AMTS offers peace of mind through its high-resolution monitoring capabilities. Adopting this advanced approach could be the key to extending the lifespan of your infrastructure and preventing costly damages.
Structural deformation monitoring is the process of systematically measuring and tracking changes in an object's shape or dimensions caused by stress from loads, ensuring structural integrity and safety.
Total stations offer a higher degree of accuracy for site positioning and measurements, crucial for projects where precision is paramount, while GPS systems provide broader range but less fine-grained detail.
In building construction, a total station is a sophisticated tool that combines an electronic transit theodolite and an electronic distance meter, aiding in accurate surveying, layout, and measurement tasks.
A total station primarily measures slope distance, horizontal angles, and vertical angles, which are pivotal for calculating coordinates and other related data.
Total stations require a complex setup and examination process. After onsite surveying, additional work in an office with specialized software is necessary to finalize drawings. Also, the equipment is relatively costly.
